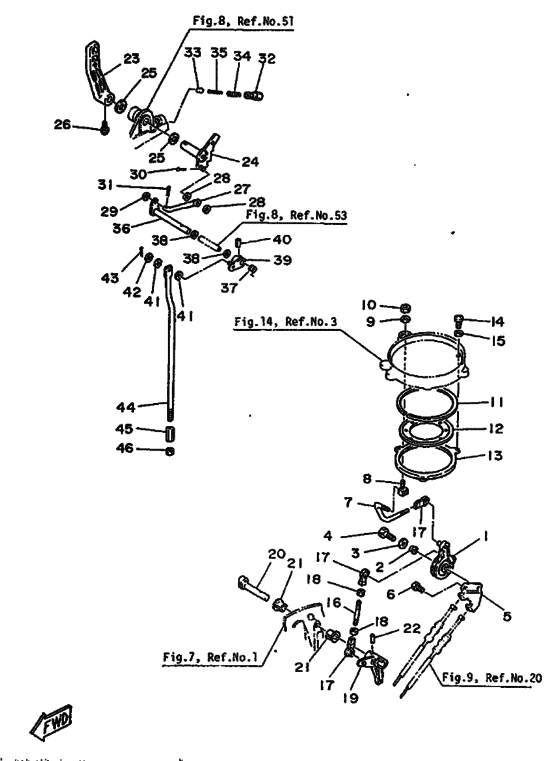

Control Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
664-41631-00-94 Lever, Magneto Control |
664-41631-00-94 |
US $49.05 |
||
| replacement | |||||
|
1
|
1
664-41631-00-00 Lever, Magneto Control |
664-41631-00-00 |
from US $26.93 |
||
|
2
|
2
90387-06M02-00 Collar |
90387-06M02-00 |
from US $5.81 |
||
|
3
|
3
903-87062-98-00
Collar
|
903-87062-98-00 |
— | ||
|
4
|
4
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
4
|
4
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
5
|
5
664-14497-00-00 Stay, Throttle Wire |
664-14497-00-00 |
from US $11.75 |
||
|
6
|
6
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
6
|
6
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
6
|
6
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
7
|
7
664-41636-00-00 Rod, Magneto Control |
664-41636-00-00 |
US $8.66 |
||
|
8
|
8
648-41635-00-00
Shaft, Link Connecting
|
648-41635-00-00 |
— | ||
|
9
|
9
90201-05556-00 Washer, Plate |
90201-05556-00 |
from US $1.42 |
||
|
10
|
10
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
10
|
10
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
11
|
11
695-41613-00-00 Plate, Base Friction |
695-41613-00-00 |
from US $18.43 |
||
| replacement | |||||
|
11
|
11
6N0-G1613-00-00 Plate Base Friction |
6N0-G1613-00-00 |
US $19.27 |
||
|
12
|
12
695-41611-00-94 Retainer, Magneto Base |
695-41611-00-94 |
US $21.88 |
||
|
13
|
13
695-14612-00-00
Nut, Ring
|
695-14612-00-00 |
— | ||
|
14
|
14
97803-05010-00 Screw, Pan Head |
97803-05010-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
15
|
15
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
16
|
16
901-16052-20-00 Bolt, Stud |
901-16052-20-00 |
US $4.56 |
||
|
17
|
17
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.95 |
||
|
18
|
18
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
19
|
19
6A9-42154-00-94 Lever, Throttle Control |
6A9-42154-00-94 |
US $19.24 |
||
|
20
|
20
656-42153-00-94 Shaft, Throttle Control |
656-42153-00-94 |
from US $14.59 |
||
|
21
|
21
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
22
|
22
91690-40018-00 Pin, Spring |
91690-40018-00 |
from US $1.56 |
||
|
23
|
23
689-44111-00-EJ
Handle, Gear Shift
|
689-44111-00-EJ |
— | ||
| replacement | |||||
|
23
|
23
689-44111-01-EJ
Handle, Gear Shift
|
689-44111-01-EJ |
— | ||
|
24
|
24
664-44113-01-00 Cam Plate, Handle |
664-44113-01-00 |
from US $40.10 |
||
|
25
|
25
90202-12031-00 Washer, Plate |
90202-12031-00 |
from US $2.55 |
||
|
26
|
26
90105-06M07-00 Bolt, Flange |
90105-06M07-00 |
from US $2.16 |
||
|
27
|
27
664-44142-00-00 Joint |
664-44142-00-00 |
from US $13.88 |
||
|
28
|
28
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
29
|
29
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
30
|
30
91490-16010-00 Pin. Cotter |
91490-16010-00 |
from US $1.34 |
||
|
31
|
31
91490-12010-00 Pin. Cotter |
91490-12010-00 |
US $1.98 |
||
| replacement | |||||
|
31
|
31
91490-12012-00 Pin. Cotter |
91490-12012-00 |
from US $1.98 |
||
|
32
|
32
664-42715-00-00 Bushing |
664-42715-00-00 |
from US $7.28 |
||
|
33
|
33
664-44167-00-00 Plunger, Shift Cam |
664-44167-00-00 |
US $7.93 |
||
| replacement | |||||
|
33
|
33
664-44167-01-00 Plunger, Shift Cam |
664-44167-01-00 |
from US $7.93 |
||
|
34
|
34
90501-14M07-00 Spring, Compression |
90501-14M07-00 |
from US $4.11 |
||
|
35
|
35
90501-09M08-00 Spring, Compression |
90501-09M08-00 |
from US $2.98 |
||
|
36
|
36
689-44121-01-00 Lever, Shift Rod |
689-44121-01-00 |
from US $20.69 |
||
|
37
|
37
90508-14M13-00 Spring, Torsion |
90508-14M13-00 |
from US $4.53 |
||
|
38
|
38
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
39
|
39
689-44125-00-00 Lever, Shift Rod |
689-44125-00-00 |
from US $23.94 |
||
|
40
|
40
91690-40016-00 Pin, Spring |
91690-40016-00 |
from US $1.84 |
||
|
41
|
41
90202-06007-00 Washer, Plate |
90202-06007-00 |
from US $1.70 |
||
|
42
|
42
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
43
|
43
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
44
|
44
664-44143-00-00
Rod, Shift 1
|
664-44143-00-00 |
— | ||
|
45
|
45
648-44146-00-00 Connector, Shift Rod 2 |
648-44146-00-00 |
from US $6.30 |
||
|
46
|
46
90170-07021-00 Nut |
90170-07021-00 |
from US $3.97 |
||
