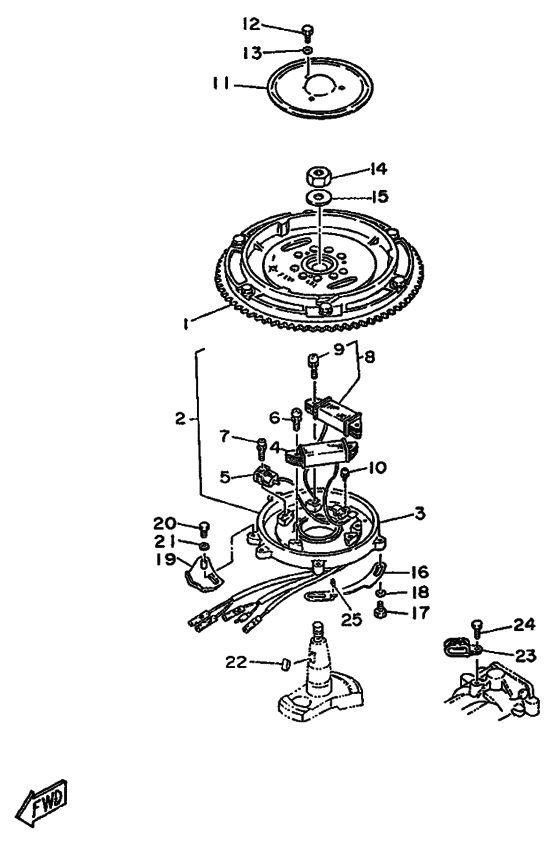

Magneto Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-85550-40-00
Rotor Assembly
|
695-85550-40-00 |
— | ||
|
2
|
2
695-85560-A0-00
Base Assembly
|
695-85560-A0-00 |
— | ||
|
3
|
3
695-85561-70-00
Base, Magneto
|
695-85561-70-00 |
— | ||
|
4
|
4
695-85520-70-00 Coil, Charge |
695-85520-70-00 |
from US $227.61 |
||
|
5
|
5
695-85580-70-00
Coil, Pulser
|
695-85580-70-00 |
— | ||
|
6
|
6
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
7
|
7
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.07 |
||
|
8
|
8
695-81303-A0-00
Lighting Coil Assembly
|
695-81303-A0-00 |
— | ||
|
9
|
9
90159-05040-00 Screw, With Washer |
90159-05040-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
10
|
10
90159-04035-00
Screw, With Washer
|
90159-04035-00 |
— | ||
|
11
|
11
648-81362-01-00 Cover, Hole |
648-81362-01-00 |
US $13.52 |
||
| replacement | |||||
|
11
|
11
648-81362-00-00 Cover, Hole |
648-81362-00-00 |
from US $13.52 |
||
|
12
|
12
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
13
|
13
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
14
|
14
90170-12066-00 Nut |
90170-12066-00 |
from US $6.94 |
||
|
15
|
15
902-01124-72-00
Washer, Plate
|
902-01124-72-00 |
— | ||
| replacement | |||||
|
15
|
15
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.70 |
||
|
16
|
16
6A9-41615-01-00 Stopper, Magneto BaseStopper, magneto base 1 |
6A9-41615-01-00 |
US $11.75 |
||
|
17
|
17
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
18
|
18
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
19
|
19
6A9-41213-00-94 Cam, Accel |
6A9-41213-00-94 |
US $25.55 |
||
|
20
|
20
97313-05010-00 Bolt, Hexagon |
97313-05010-00 |
from US $1.66 |
||
| replacement | |||||
|
20
|
20
970-13050-10-00 Bolt |
970-13050-10-00 |
from US $0.83 |
||
|
21
|
21
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
22
|
22
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
22
|
22
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
23
|
23
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
|
24
|
24
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
24
|
24
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
25
|
25
695-44194-00-00 Cap |
695-44194-00-00 |
from US $7.08 |
||
