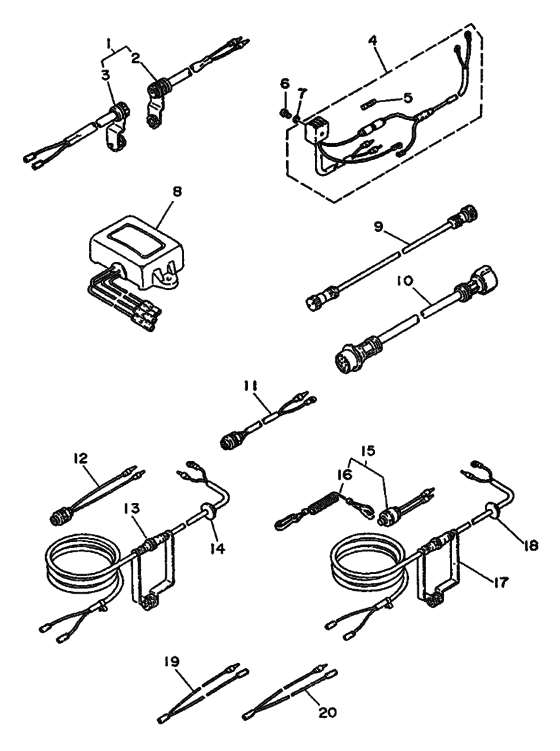

Optional parts 1 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
682-84380-00-00 Concent 2P2P |
682-84380-00-00 |
from US $64.52 |
||
|
2
|
2
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
3
|
3
682-84382-00-00 2P Concemt |
682-84382-00-00 |
from US $61.34 |
||
|
4
|
4
676-81970-00-00 Rectifier Assy |
676-81970-00-00 |
US $92.71 |
||
| replacements | |||||
|
4
|
4
676-81970-01-00 Rectifier Assy |
676-81970-01-00 |
US $92.71 |
||
|
4
|
4
676-81970-02-00 Rectifier Assy |
676-81970-02-00 |
from US $92.71 |
||
|
5
|
5
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
5
|
5
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.84 |
||
|
5
|
5
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.84 |
||
|
6
|
6
97803-06025-00 Screw, Pan Head |
97803-06025-00 |
US $1.07 |
||
| replacement | |||||
|
6
|
6
97885-06025-00 Screw, Pan Head |
97885-06025-00 |
from US $1.07 |
||
|
7
|
7
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
8
|
8
663-81910-10-00 Voltage Regulator Assy |
663-81910-10-00 |
US $296.89 |
||
|
9
|
9
689-82553-10-00 Extension, Wire Lead |
689-82553-10-00 |
from US $46.78 |
||
|
10
|
10
688-82586-11-00 Extension, Wire Harness (2.0M) |
688-82586-11-00 |
US $115.36 |
||
| replacement | |||||
|
10
|
10
688-82586-12-00 Extension, Wire Harness |
688-82586-12-00 |
US $128.18 |
||
|
11
|
11
689-82550-01-00 Engine Stop Switch Assy |
689-82550-01-00 |
US $28.62 |
||
| replacement | |||||
|
11
|
11
6A0-82550-01-00 Engine Stop Switch Assembly |
6A0-82550-01-00 |
from US $16.88 |
||
|
12
|
12
689-82550-11-00 Engine Stop Switch Assy |
689-82550-11-00 |
from US $35.56 |
||
|
13
|
13
689-82553-20-00 Extension, Wire Lead |
689-82553-20-00 |
US $69.63 |
||
|
14
|
14
689-42725-40-00 Grommet |
689-42725-40-00 |
US $7.64 |
||
|
15
|
15
689-82575-12-00 Engine Stop Switch Assy |
689-82575-12-00 |
US $108.18 |
||
| replacement | |||||
|
15
|
15
699-82575-09-00 Engine Stop Switch Assy |
699-82575-09-00 |
from US $108.18 |
||
|
16
|
16
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
17
|
17
689-82553-20-00 Extension, Wire Lead |
689-82553-20-00 |
US $69.63 |
||
|
18
|
18
689-42725-40-00 Grommet |
689-42725-40-00 |
US $7.64 |
||
|
19
|
19
699-82149-A0-00
Wire, Lead 3
|
699-82149-A0-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
699-82149-00-00
Wire, Lead 3
|
699-82149-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
