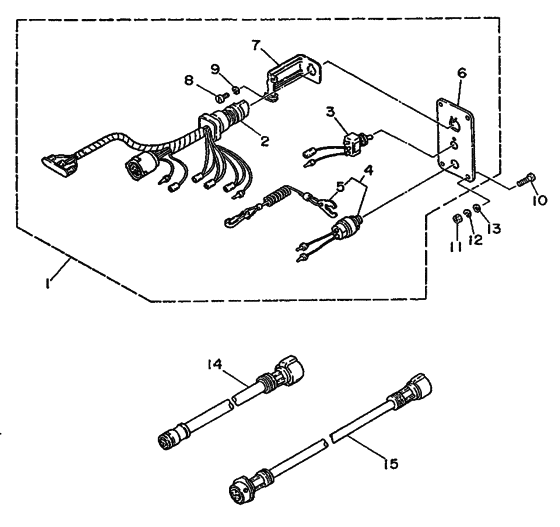

Optional parts 2 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-82570-15-00 Panel Switch Assy |
689-82570-15-00 |
US $465.12 |
||
| replacements | |||||
|
1
|
1
689-82570-1C-00 Switch :ob |
689-82570-1C-00 |
US $286.85 |
||
|
1
|
1
689-82570-1D-00 Panel Switch Assy |
689-82570-1D-00 |
US $376.65 |
||
|
2
|
2
689-82510-00-00 Main Switch Assy |
689-82510-00-00 |
US $145.07 |
||
| replacement | |||||
|
2
|
2
689-82510-08-00 element |
689-82510-08-00 |
from US $119.04 |
||
|
3
|
3
688-82574-00-00 Switch, Choke |
688-82574-00-00 |
US $51.40 |
||
| replacement | |||||
|
3
|
3
6K1-82574-00-00 Switch, Choke |
6K1-82574-00-00 |
from US $51.40 |
||
|
4
|
4
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
4
|
4
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
5
|
5
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
6
|
6
689-82571-02-00 Panel, Switch |
689-82571-02-00 |
US $28.64 |
||
|
7
|
7
663-82581-01-00 Stay, Cord Clamp |
663-82581-01-00 |
from US $14.45 |
||
|
8
|
8
98303-04008-00 Screw, Cylinder Head |
98303-04008-00 |
from US $1.21 |
||
| replacement | |||||
|
8
|
8
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
9
|
9
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
90149-05M05-00 Screw |
90149-05M05-00 |
from US $1.84 |
||
|
11
|
11
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
688-82586-50-00 Extension, Wire Harness (5M) |
688-82586-50-00 |
US $215.53 |
||
|
15
|
15
688-82586-11-00 Extension, Wire Harness (2.0M)U.R. |
688-82586-11-00 |
US $115.36 |
||
| replacement | |||||
|
15
|
15
688-82586-12-00 Extension, Wire HarnessU.R. |
688-82586-12-00 |
US $128.18 |
||
|
15
|
15
688-82586-31-00 Extension, Wire Harness (3.0M)U.R. |
688-82586-31-00 |
from US $174.15 |
||
