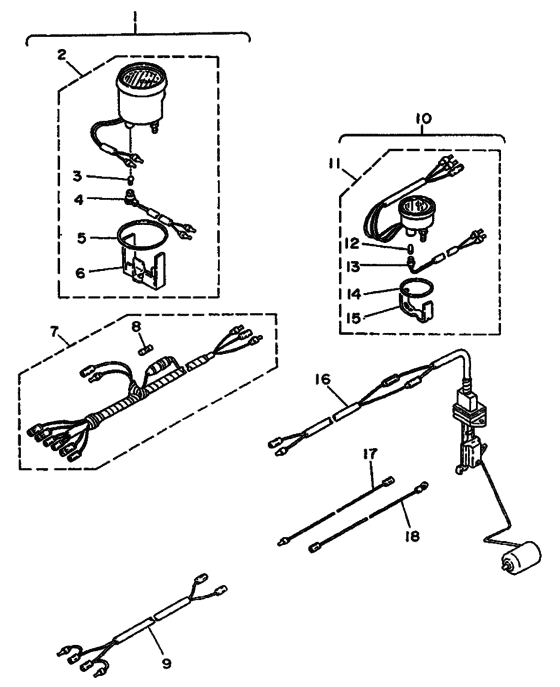

Optional parts 3 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-W0080-10-00 Tachometer Kit |
6Y5-W0080-10-00 |
US $543.42 |
||
| replacement | |||||
|
1
|
1
6Y5-W0080-12-00 Tachometer Kit |
6Y5-W0080-12-00 |
from US $543.42 |
||
|
2
|
2
6Y5-83540-10-00 Tachometer Assy |
6Y5-83540-10-00 |
US $486.95 |
||
| replacements | |||||
|
2
|
2
6Y5-W0080-12-00 Tachometer Kit |
6Y5-W0080-12-00 |
from US $543.42 |
||
|
2
|
2
6Y5-83540-14-00 Pro Tachometer Assy Wo Oil |
6Y5-83540-14-00 |
US $486.95 |
||
|
2
|
2
6Y5-83540-15-00 Tachometer Assy |
6Y5-83540-15-00 |
US $283.50 |
||
|
3
|
3
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
4
|
4
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
5
|
5
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
6
|
6
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
7
|
7
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
7
|
7
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
8
|
8
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
|
9
|
9
6Y5-83553-10-00 Wire, Lead (L=5.0M) |
6Y5-83553-10-00 |
from US $37.72 |
||
|
10
|
10
6Y5-W0088-20-00 Fuel Meter Kit |
6Y5-W0088-20-00 |
from US $286.43 |
||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
6Y5-85750-00-00 Fuel Meter Assy |
6Y5-85750-00-00 |
US $134.43 |
||
|
12
|
12
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
12
|
12
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
13
|
13
6Y5-83536-00-00 Socket, Meter |
6Y5-83536-00-00 |
from US $10.34 |
||
|
14
|
14
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
15
|
15
688-85756-00-00
Plate, Fitting
|
688-85756-00-00 |
— | ||
|
16
|
16
688-85752-01-00 Sender Unit Assy, Fuel Meter |
688-85752-01-00 |
US $130.84 |
||
|
17
|
17
663-83553-Y0-00 Wire, Lead |
663-83553-Y0-00 |
from US $24.91 |
||
|
18
|
18
663-83553-A0-00 Wire, Lead |
663-83553-A0-00 |
from US $26.23 |
||
