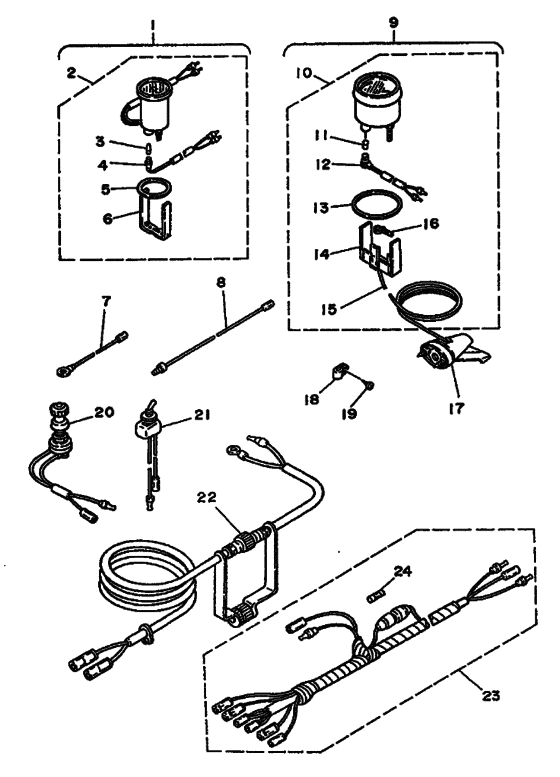

Optional parts 4 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y5-W0088-30-00 Buzzer Panel Kit |
6Y5-W0088-30-00 |
US $354.64 |
||
| replacement | |||||
|
1
|
1
6Y5-W0088-31-00 Hour Meter Kit |
6Y5-W0088-31-00 |
from US $354.64 |
||
|
2
|
2
6Y5-83504-00-00 Hour Meter Assy |
6Y5-83504-00-00 |
US $305.33 |
||
| replacements | |||||
|
2
|
2
6Y5-W0088-31-00 Hour Meter Kit |
6Y5-W0088-31-00 |
from US $354.64 |
||
|
2
|
2
6Y5-83504-11-00 Hour Meter |
6Y5-83504-11-00 |
US $305.33 |
||
|
2
|
2
6Y5-83504-13-00 Hour Meter Assy |
6Y5-83504-13-00 |
US $396.90 |
||
|
3
|
3
6Y5-83518-00-00 Bulb (12V-1.7W T6.5) |
6Y5-83518-00-00 |
from US $4.53 |
||
| replacement | |||||
|
3
|
3
3FV-83517-00-00 Bulb (12V-1.7W) |
3FV-83517-00-00 |
from US $3.32 |
||
|
4
|
4
6Y5-83536-00-00 Socket, Meter |
6Y5-83536-00-00 |
from US $10.34 |
||
|
5
|
5
688-83664-00-00 Damper |
688-83664-00-00 |
from US $3.68 |
||
|
6
|
6
688-83557-00-00 Tube |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
6
|
6
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
7
|
7
663-83553-A0-00 Wire, Lead |
663-83553-A0-00 |
from US $26.23 |
||
|
8
|
8
663-83553-Y0-00 Wire, Lead |
663-83553-Y0-00 |
from US $24.91 |
||
|
9
|
9
6Y5-W0081-40-00 Speedometer Kit |
6Y5-W0081-40-00 |
US $396.39 |
||
|
10
|
10
6Y5-83510-30-00 Speedometer Assy |
6Y5-83510-30-00 |
US $357.83 |
||
| replacement | |||||
|
10
|
10
6Y5-83510-31-00 Speedometer Assy |
6Y5-83510-31-00 |
US $472.12 |
||
|
11
|
11
688-83516-00-00 Bulb (12V-1.7W, T10) |
688-83516-00-00 |
from US $3.83 |
||
|
12
|
12
688-83536-00-00 Socket, Meter |
688-83536-00-00 |
from US $11.76 |
||
|
13
|
13
6Y5-83523-00-00 Damper |
6Y5-83523-00-00 |
from US $3.54 |
||
|
14
|
14
6Y5-83514-00-00 Plate, Fitting |
6Y5-83514-00-00 |
from US $11.76 |
||
|
15
|
15
688-83557-00-00 Tube |
688-83557-00-00 |
US $19.13 |
||
| replacement | |||||
|
15
|
15
6Y5-83557-10-00 Tube (8M) |
6Y5-83557-10-00 |
from US $15.19 |
||
|
16
|
16
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
16
|
16
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.21 |
||
|
16
|
16
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.34 |
||
|
17
|
17
688-83556-01-00 Sender |
688-83556-01-00 |
US $153.36 |
||
| replacement | |||||
|
17
|
17
688-83556-00-00 Sender (With Hose L:6M/d:4Mm) |
688-83556-00-00 |
from US $88.18 |
||
|
18
|
18
90601-31402-00 Clip, Nylon 14 |
90601-31402-00 |
from US $4.39 |
||
|
19
|
19
97780-40116-00 Screw, Tapping |
97780-40116-00 |
from US $2.55 |
||
|
20
|
20
688-82520-00-00 Light Switch Assy |
688-82520-00-00 |
from US $43.38 |
||
|
21
|
21
688-82526-00-00 Switch, Lamp |
688-82526-00-00 |
from US $62.03 |
||
|
22
|
22
689-82553-20-00 Extension, Wire Lead |
689-82553-20-00 |
US $69.63 |
||
|
23
|
23
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
23
|
23
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
24
|
24
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
