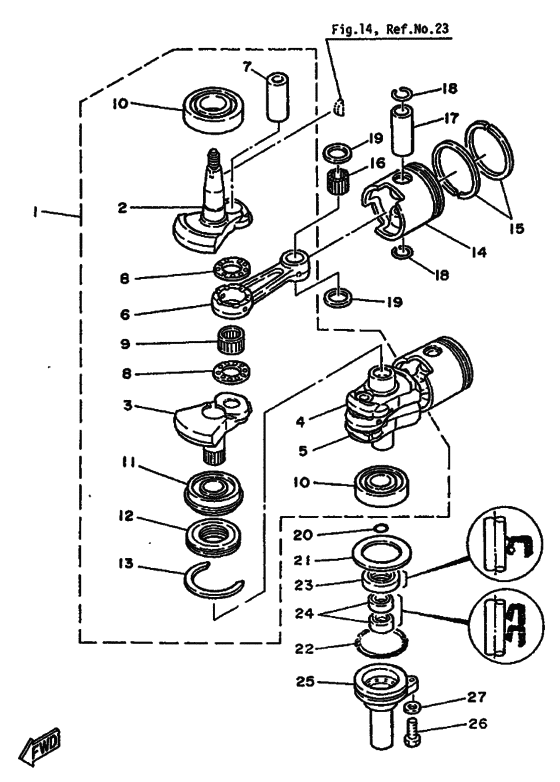

Crankshaft & Piston Diagram Yamaha 20 MHS/L
- Year
- 1986
- Model
- 20C
- Model code
- 6A9
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-11400-00-00
Crankshaft Assembly
|
695-11400-00-00 |
— | ||
|
2
|
2
6G0-11412-00-00
Crank 1
|
6G0-11412-00-00 |
— | ||
| replacement | |||||
|
2
|
2
6G0-11412-10-00
Crank 1
|
6G0-11412-10-00 |
— | ||
|
3
|
3
6G0-11422-00-00
Crank 2
|
6G0-11422-00-00 |
— | ||
|
4
|
4
6G0-11432-00-00
Crank 3
|
6G0-11432-00-00 |
— | ||
|
5
|
5
695-11442-00-00
Crank 4
|
695-11442-00-00 |
— | ||
|
6
|
6
648-11651-03-00 Rod, Connecting |
648-11651-03-00 |
US $171.32 |
||
| replacements | |||||
|
6
|
6
648-11650-01-00 Connecting Rod Kit |
648-11650-01-00 |
US $327.16 |
||
|
6
|
6
648-11651-04-00 Rod, Connecting |
648-11651-04-00 |
from US $114.10 |
||
|
7
|
7
648-11681-00-00 Pin, Crank 1 |
648-11681-00-00 |
from US $35.28 |
||
|
8
|
8
90209-22071-00 Washer |
90209-22071-00 |
from US $3.64 |
||
| replacement | |||||
|
8
|
8
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $3.64 |
||
|
9
|
9
93310-522W0-00 BearingBearing, cylindrical |
93310-522W0-00 |
from US $22.16 |
||
|
10
|
10
93306-30510-00 Bearing |
93306-30510-00 |
from US $35.92 |
||
| replacements | |||||
|
10
|
10
933-06305-71-00 Bearing |
933-06305-71-00 |
from US $50.60 |
||
|
10
|
10
93306-30550-00 Bearing |
93306-30550-00 |
from US $35.92 |
||
|
11
|
11
93390-00009-00 Bearing |
93390-00009-00 |
from US $80.41 |
||
|
12
|
12
656-11515-00-00
Seal, Labyrinth 1
|
656-11515-00-00 |
— | ||
|
13
|
13
93440-62057-00 Circlip, Outer |
93440-62057-00 |
from US $1.66 |
||
|
14
|
14
664-11631-80-97 Piston (Std) |
664-11631-80-97 |
US $94.37 |
||
| replacement | |||||
|
14
|
14
664-11631-80-96 Piston (Std) |
664-11631-80-96 |
US $94.37 |
||
|
14
|
14
664-11635-80-00 Piston (0.25Mm O/s)Piston (1st o.s.) 0.25MM O/S; A.P. |
664-11635-80-00 |
US $95.08 |
||
|
14
|
14
664-11636-80-00 Piston (0.50Mm O/s)0.50MM O/S; A.P. |
664-11636-80-00 |
from US $94.95 |
||
|
15
|
15
664-11610-80-00 Piston Ring Set (Std)Piston ring set (std) |
664-11610-80-00 |
US $54.07 |
||
|
15
|
15
664-11610-40-00
Piston Ring Set (0.25Mm O/s)
A.P. |
664-11610-40-00 |
— | ||
|
15
|
15
644-11610-50-00
Piston Ring Set
A.P. |
644-11610-50-00 |
— | ||
|
16
|
16
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $1.66 |
||
|
17
|
17
648-11633-00-00 Pin, Piston |
648-11633-00-00 |
from US $7.94 |
||
|
18
|
18
93450-20026-00 Circlip |
93450-20026-00 |
from US $2.69 |
||
|
19
|
19
90201-18522-00 Washer, Plate |
90201-18522-00 |
from US $1.34 |
||
|
20
|
20
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.70 |
||
|
21
|
21
90201-50306-00 Washer, Plate |
90201-50306-00 |
from US $4.39 |
||
|
22
|
22
932-1058M-21-00
O-Ring
|
932-1058M-21-00 |
— | ||
| replacement | |||||
|
22
|
22
932-1057M-09-00 O-Ring |
932-1057M-09-00 |
from US $2.66 |
||
|
23
|
23
93102-25M20-00 Oil Seal |
93102-25M20-00 |
US $9.35 |
||
| replacement | |||||
|
23
|
23
931-0225M-28-00 Oil Seal(6H4) |
931-0225M-28-00 |
from US $9.26 |
||
|
24
|
24
931-0416M-01-00
Oil Seal
|
931-0416M-01-00 |
— | ||
| replacement | |||||
|
24
|
24
931-0116M-36-00 Oil Seal |
931-0116M-36-00 |
from US $4.64 |
||
|
25
|
25
689-15396-00-9M Housing, Oil SealHousing, oil seal 2 |
689-15396-00-9M |
US $35.99 |
||
| replacements | |||||
|
25
|
25
689-15396-01-CA Housing, Oil Seal |
689-15396-01-CA |
from US $31.79 |
||
|
25
|
25
689-15396-01-9M Housing, Oil Seal |
689-15396-01-9M |
US $28.79 |
||
|
26
|
26
97395-06022-00 Boulon |
97395-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
26
|
26
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.27 |
||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
