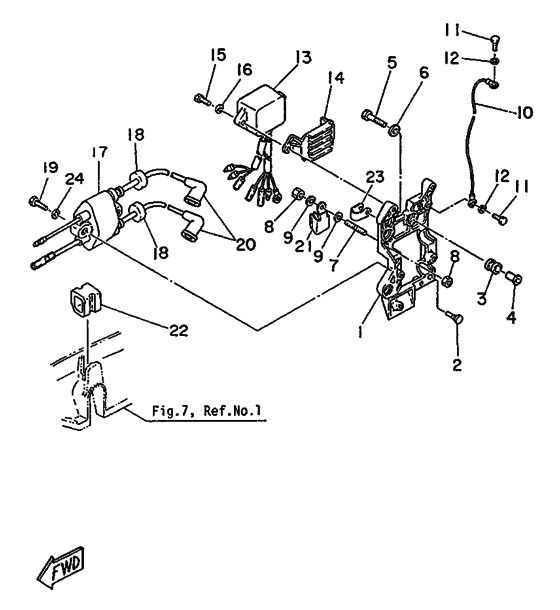

Electric parts Diagram Yamaha 20 MHS/L
- Year
- 1986
- Model
- 20C
- Model code
- 6A9
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-85542-00-94 Bracket |
695-85542-00-94 |
from US $40.58 |
||
|
2
|
2
689-85547-00-00 Damper |
689-85547-00-00 |
US $3.97 |
||
|
3
|
3
663-82317-00-00 Damper, Ignition Coil |
663-82317-00-00 |
US $4.96 |
||
| replacement | |||||
|
3
|
3
663-82317-02-00 Damper, Ignition Coil |
663-82317-02-00 |
from US $4.96 |
||
|
4
|
4
624-42542-00-00 Collar |
624-42542-00-00 |
US $6.23 |
||
| replacement | |||||
|
4
|
4
90387-06119-00 Collar |
90387-06119-00 |
from US $2.32 |
||
|
5
|
5
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
5
|
5
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
6
|
6
90201-06050-00 Washer, Plate |
90201-06050-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
90201-06M08-00 Washer, Plate |
90201-06M08-00 |
from US $1.56 |
||
|
7
|
7
90116-06M07-00 Goujon |
90116-06M07-00 |
from US $5.67 |
||
|
8
|
8
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
9
|
9
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
689-82519-00-00 Wire, Earth Lead |
689-82519-00-00 |
from US $10.28 |
||
|
11
|
11
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
11
|
11
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
11
|
11
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
12
|
12
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
695-85540-10-00
C.d.i. Unit Assy
|
695-85540-10-00 |
— | ||
| replacement | |||||
|
13
|
13
695-85540-12-00 C.d.i. Unit Assy |
695-85540-12-00 |
from US $323.30 |
||
|
14
|
14
689-85548-01-00
Holder
|
689-85548-01-00 |
— | ||
|
15
|
15
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
15
|
15
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
16
|
16
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
6E7-85570-19-00 Ignition Coil Assembly |
6E7-85570-19-00 |
US $356.45 |
||
| replacement | |||||
|
17
|
17
680-85570-09-00 Ignition Coil Assy |
680-85570-09-00 |
from US $178.20 |
||
|
18
|
18
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
19
|
19
97313-06025-00 Bolt |
97313-06025-00 |
US $1.35 |
||
| replacement | |||||
|
19
|
19
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
20
|
20
6G1-82370-20-00 Plug Cap Asy |
6G1-82370-20-00 |
US $20.12 |
||
| replacement | |||||
|
20
|
20
6G1-82370-21-00 Plug Cap Assy |
6G1-82370-21-00 |
from US $20.12 |
||
|
21
|
21
90465-08M13-00 Clamp |
90465-08M13-00 |
US $4.11 |
||
|
22
|
22
90480-17M08-00 Grommet |
90480-17M08-00 |
from US $7.37 |
||
|
23
|
23
90464-12M00-00
Clamp
|
90464-12M00-00 |
— | ||
| replacement | |||||
|
23
|
23
90464-12158-00
Clamp
|
90464-12158-00 |
— | ||
|
24
|
24
929-03066-00-00
Washer, Plate
(20CE MODEL) |
929-03066-00-00 |
— | ||
| replacement | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646)(20CE MODEL) |
929-90066-00-00 |
from US $1.07 |
||
