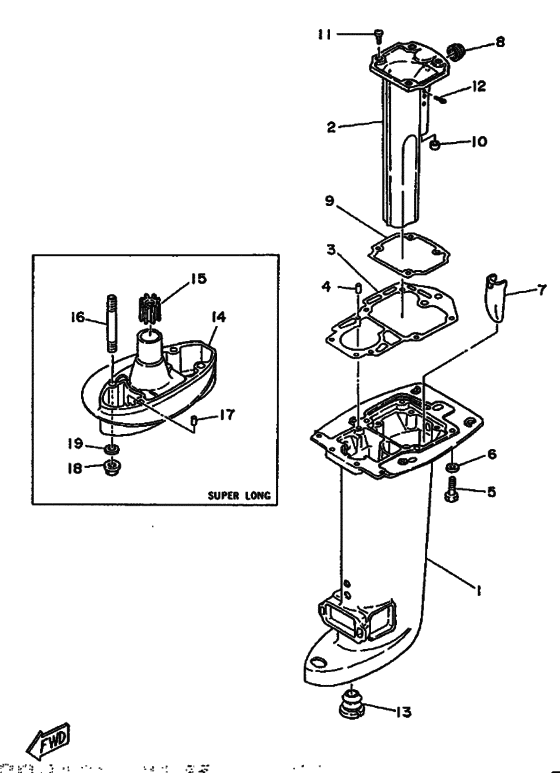

Upper casing Diagram Yamaha 20 MHS/L
- Year
- 1986
- Model
- 20C
- Model code
- 6A9
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
689-45111-01-EJ
Casing, Upper
U.R. |
689-45111-01-EJ |
— | ||
| replacement | |||||
|
1
|
1
689-45101-01-EJ
Casing Upper Comp
U.R. |
689-45101-01-EJ |
— | ||
|
1
|
1
689-45111-10-EJ
Casing, Upper
U.R. |
689-45111-10-EJ |
— | ||
| replacements | |||||
|
1
|
1
689-45101-13-EJ
Casing, Upper (Long,ej)(61N)
U.R. |
689-45101-13-EJ |
— | ||
|
1
|
1
689-45101-11-EJ
Casing Upper Comp
U.R. |
689-45101-11-EJ |
— | ||
|
1
|
1
61N-W4511-11-EJ
Casing, Upper
U.R. |
61N-W4511-11-EJ |
— | ||
|
2
|
2
664-41131-01-94 Manifold, Ext. 1 |
664-41131-01-94 |
US $179.61 |
||
| replacement | |||||
|
2
|
2
664-41131-01-00 MANIFOLD, EXT. 1 |
664-41131-01-00 |
from US $99.25 |
||
|
3
|
3
689-45113-01-00 Gasket, Upper Casing |
689-45113-01-00 |
US $16.72 |
||
| replacement | |||||
|
3
|
3
61T-45113-A0-00 Gasket, Upper Casing |
61T-45113-A0-00 |
from US $13.90 |
||
|
4
|
4
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
5
|
5
97375-08030-00 Bolt, Hexagon |
97375-08030-00 |
US $2.69 |
||
| replacement | |||||
|
5
|
5
97080-08030-00 Bolt |
97080-08030-00 |
from US $2.69 |
||
|
6
|
6
92900-08600-00 Washer |
92900-08600-00 |
US $1.56 |
||
| replacement | |||||
|
6
|
6
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
7
|
7
689-41132-00-94
Manifold, Exhaust
U.R. |
689-41132-00-94 |
— | ||
|
7
|
7
689-41132-10-94
Manifold, Exhaust
U.R. |
689-41132-10-94 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
U.R. |
999-99999-99-00 |
— | ||
|
8
|
8
664-41133-00-00 Gasket, Exhaust Manifold 1 |
664-41133-00-00 |
from US $15.80 |
||
|
9
|
9
664-41134-00-00 Gasket, Exh.mani.2 |
664-41134-00-00 |
US $19.13 |
||
| replacement | |||||
|
9
|
9
664-41134-A0-00 Gasket, Exhaust Manifold |
664-41134-A0-00 |
from US $10.22 |
||
|
10
|
10
664-41135-00-00 Gasket, Exhaust Manifold |
664-41135-00-00 |
from US $11.03 |
||
|
11
|
11
97890-06016-00 Screw, Pan Head |
97890-06016-00 |
US $2.55 |
||
| replacement | |||||
|
11
|
11
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.55 |
||
|
12
|
12
914-90300-25-00 Pin. Cotter |
914-90300-25-00 |
from US $1.13 |
||
| replacement | |||||
|
12
|
12
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
13
|
13
689-45127-00-00
Seal
|
689-45127-00-00 |
— | ||
|
14
|
14
689-45211-20-EJ
Extension
|
689-45211-20-EJ |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
689-45318-00-00 Bushing, Drive Shaft |
689-45318-00-00 |
US $35.99 |
||
|
16
|
16
90116-10M10-00
Bolt, Stud
|
90116-10M10-00 |
— | ||
|
17
|
17
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
18
|
18
90179-10M03-00 Nut |
90179-10M03-00 |
US $10.48 |
||
|
19
|
19
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
