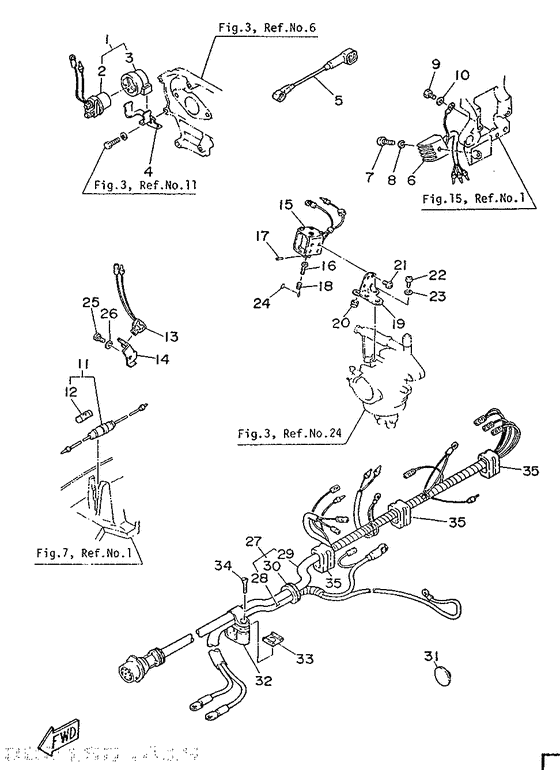

Electric parts (20CE MODEL) Diagram Yamaha 20 MHS/L
- Year
- 1986
- Model
- 20C
- Model code
- 6A9
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-81940-00-00 Starter Relay Assembly |
6G1-81940-00-00 |
US $75.57 |
||
| replacement | |||||
|
01
|
01
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $54.56 |
||
|
02
|
02
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $54.56 |
||
|
03
|
03
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
04
|
04
695-81945-00-00
Plate, Switch Fitting
|
695-81945-00-00 |
— | ||
|
05
|
05
695-82531-01-00
Wire, Lead
|
695-82531-01-00 |
— | ||
| replacement | |||||
|
05
|
05
695-82531-02-00
Wire, Lead
|
695-82531-02-00 |
— | ||
|
06
|
06
664-81970-60-00 Rectifier Assy |
664-81970-60-00 |
US $88.98 |
||
| replacement | |||||
|
06
|
06
664-81970-62-00 Rectifier Assy |
664-81970-62-00 |
from US $88.98 |
||
|
07
|
07
978-03050-25-00
Screw, Pan Head
|
978-03050-25-00 |
— | ||
| replacement | |||||
|
07
|
07
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
08
|
08
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
08
|
08
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
09
|
09
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
09
|
09
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
09
|
09
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
10
|
10
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
11
|
11
682-82150-10-00 Fuse Holder Assembly |
682-82150-10-00 |
US $17.57 |
||
|
12
|
12
663-82151-00-00 Fuse (12V-20A) |
663-82151-00-00 |
US $1.84 |
||
| replacements | |||||
|
12
|
12
682-82151-01-00 Fuse (20A) |
682-82151-01-00 |
US $1.84 |
||
|
12
|
12
682-82151-02-00 FUSE |
682-82151-02-00 |
from US $1.84 |
||
|
13
|
13
689-82540-01-00 Neutral Switch Assembly |
689-82540-01-00 |
from US $44.63 |
||
|
14
|
14
656-15774-41-00
Stay 4 (For Neutral Switch)
|
656-15774-41-00 |
— | ||
|
15
|
15
689-86111-01-00
Coil, Solenoid
|
689-86111-01-00 |
— | ||
|
16
|
16
682-86117-00-00 Hook, Wire Pull |
682-86117-00-00 |
from US $2.69 |
||
|
17
|
17
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
18
|
18
682-86116-00-00 Wire, Pull |
682-86116-00-00 |
from US $6.38 |
||
|
19
|
19
689-86112-01-00
Stay, Solenoid
|
689-86112-01-00 |
— | ||
| replacement | |||||
|
19
|
19
689-86112-02-00
Stay, Solenoid
|
689-86112-02-00 |
— | ||
|
20
|
20
90480-10155-00 Grommet |
90480-10155-00 |
from US $3.83 |
||
|
21
|
21
98503-04005-00 Screw, Pan Head |
98503-04005-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
98580-04006-00 Screw, Pan Head |
98580-04006-00 |
from US $1.56 |
||
|
22
|
22
97803-05012-00 Screw, Pan Head |
97803-05012-00 |
from US $2.13 |
||
| replacement | |||||
|
22
|
22
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $1.34 |
||
|
23
|
23
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
93210-03261-00 O-Ring |
93210-03261-00 |
from US $1.66 |
||
|
25
|
25
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
25
|
25
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
26
|
26
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
689-82580-13-00
Wire Harness Assembly 2
|
689-82580-13-00 |
— | ||
| replacement | |||||
|
27
|
27
689-82580-19-00
Wire Harness Assy
|
689-82580-19-00 |
— | ||
|
28
|
28
689-82105-12-00 Battery Cable |
689-82105-12-00 |
US $161.65 |
||
| replacements | |||||
|
28
|
28
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
28
|
28
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
US $183.56 |
||
|
29
|
29
689-82590-11-00
Wire Harness Assembly
|
689-82590-11-00 |
— | ||
|
30
|
30
689-42724-50-00 Grommet |
689-42724-50-00 |
US $7.93 |
||
|
31
|
31
90480-17165-00 Grommet |
90480-17165-00 |
from US $4.11 |
||
|
32
|
32
689-82594-10-00 Clamp |
689-82594-10-00 |
from US $6.52 |
||
|
33
|
33
682-42525-00-00 Plate, Friction 1 |
682-42525-00-00 |
from US $4.68 |
||
|
34
|
34
90161-06M00-00 Screw, Tapping |
90161-06M00-00 |
US $2.55 |
||
| replacement | |||||
|
34
|
34
90161-06M03-00 Screw, Tapping(6E7) |
90161-06M03-00 |
from US $2.55 |
||
|
35
|
35
90480-17M08-00 Grommet |
90480-17M08-00 |
from US $7.37 |
||
