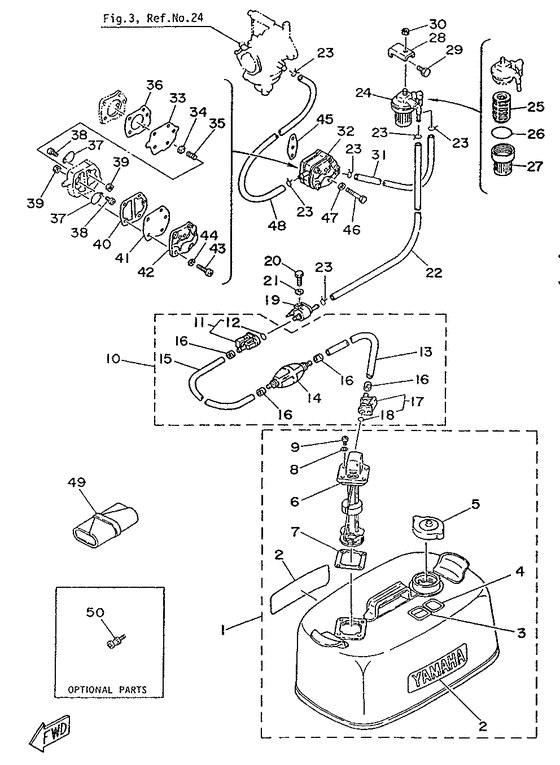

Fuel Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6Y1-24203-82-24
Fuel Tank Assy
|
6Y1-24203-82-24 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6Y1-24246-00-00
Graphic, Side
|
6Y1-24246-00-00 |
— | ||
|
03
|
03
6Y1-24255-80-00
Graphic, Fuel Tank 8
|
6Y1-24255-80-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
6Y1-24257-00-00
Graphic
|
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
6Y1-24610-00-00 Cap Assembly |
6Y1-24610-00-00 |
US $29.81 |
||
|
06
|
06
6Y1-24260-01-00 Fuel Meter Assy |
6Y1-24260-01-00 |
US $165.79 |
||
| replacement | |||||
|
06
|
06
6Y1-24260-19-00 FUEL METER ASSY |
6Y1-24260-19-00 |
US $86.48 |
||
|
07
|
07
6Y1-24268-00-00 Gasket, Fuel Meter |
6Y1-24268-00-00 |
US $3.83 |
||
|
08
|
08
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
09
|
09
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
10
|
10
6Y1-24306-05-00 Fuel Pipe Assy |
6Y1-24306-05-00 |
US $88.70 |
||
| replacement | |||||
|
10
|
10
6YL-24306-64-00 Fuel Pipe Comp. 1 |
6YL-24306-64-00 |
from US $268.03 |
||
|
11
|
11
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
11
|
11
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $24.14 |
||
|
12
|
12
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
13
|
13
90445-11M06-00 Hose |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
13
|
13
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
14
|
14
6Y1-24360-02-00 Primer Pump Assy |
6Y1-24360-02-00 |
US $32.59 |
||
| replacement | |||||
|
14
|
14
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
15
|
15
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
15
|
15
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.77 |
||
|
16
|
16
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
16
|
16
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
17
|
17
6Y1-24305-01-00 Fuel Pipe Joint Comp. 2 |
6Y1-24305-01-00 |
US $25.08 |
||
| replacement | |||||
|
17
|
17
6Y1-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-06-00 |
from US $25.08 |
||
|
18
|
18
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
19
|
19
6G1-24304-01-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-01-00 |
US $29.47 |
||
| replacements | |||||
|
19
|
19
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $29.47 |
||
|
19
|
19
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $30.10 |
||
|
20
|
20
97313-06020-00 Bolt, Hexagon |
97313-06020-00 |
US $1.56 |
||
| replacement | |||||
|
20
|
20
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.56 |
||
|
21
|
21
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
90445-09N25-00
Hose
|
90445-09N25-00 |
— | ||
|
23
|
23
90467-08004-00 Clip |
90467-08004-00 |
from US $1.70 |
||
|
24
|
24
655-24560-01-00 Filter Assembly |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
24
|
24
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $24.80 |
||
|
25
|
25
6F5-24563-00-00 Element, Filter |
6F5-24563-00-00 |
from US $8.08 |
||
|
26
|
26
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
27
|
27
655-24521-01-00
Cup, Filter
|
655-24521-01-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
648-24566-01-00
Bracket, Filter
|
648-24566-01-00 |
— | ||
|
29
|
29
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
29
|
29
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
29
|
29
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
30
|
30
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
30
|
30
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
30
|
30
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
31
|
31
664-24311-00-00 Pipe, Fuel 1 |
664-24311-00-00 |
US $4.26 |
||
|
32
|
32
6A0-24410-02-00 Fuel Pump Assy |
6A0-24410-02-00 |
US $131.67 |
||
| replacements | |||||
|
32
|
32
692-24410-00-00 Fuel Pump Assy |
692-24410-00-00 |
US $131.67 |
||
|
32
|
32
692-24410-01-00 FUEL PUMP ASSY |
692-24410-01-00 |
from US $67.03 |
||
|
33
|
33
648-24411-00-00 Diaphragm |
648-24411-00-00 |
from US $21.50 |
||
|
34
|
34
648-24424-00-00 Seat, Spring |
648-24424-00-00 |
from US $3.68 |
||
|
35
|
35
648-24423-00-00 Spring, Diaphragm |
648-24423-00-00 |
from US $3.68 |
||
|
36
|
36
648-24434-00-00 Gasket, Body |
648-24434-00-00 |
US $4.96 |
||
| replacement | |||||
|
36
|
36
648-24434-01-00 Gasket, Body |
648-24434-01-00 |
from US $4.30 |
||
|
37
|
37
6A0-24421-00-00 Valve, Check |
6A0-24421-00-00 |
US $20.69 |
||
| replacement | |||||
|
37
|
37
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $18.94 |
||
|
38
|
38
90147-03M00-00
Screw, Pan Head
|
90147-03M00-00 |
— | ||
|
39
|
39
98813-03100-00 Nut |
98813-03100-00 |
US $2.20 |
||
|
40
|
40
648-24435-02-00 Gasket, Body 2 |
648-24435-02-00 |
from US $13.32 |
||
|
41
|
41
663-24411-00-00 Diaphragm |
663-24411-00-00 |
from US $8.94 |
||
|
42
|
42
6A0-24413-00-00 Body 2 |
6A0-24413-00-00 |
from US $23.69 |
||
| replacement | |||||
|
42
|
42
648-24413-01-00 Cover, Pump |
648-24413-01-00 |
from US $17.65 |
||
|
43
|
43
98503-05028-00 Screw, Pan Head |
98503-05028-00 |
US $2.27 |
||
| replacements | |||||
|
43
|
43
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
43
|
43
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
44
|
44
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
45
|
45
650-24431-00-00 Gasket, Fuel Pump 1 |
650-24431-00-00 |
US $2.98 |
||
| replacement | |||||
|
45
|
45
650-24431-A0-00 Gasket, Fuel Pump 1 |
650-24431-A0-00 |
from US $1.34 |
||
|
46
|
46
97313-06040-00 Bolt (682) |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
46
|
46
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
47
|
47
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
47
|
47
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
48
|
48
648-24312-01-00 Pipe 2 |
648-24312-01-00 |
US $9.92 |
||
| replacement | |||||
|
48
|
48
4KN-24311-01-00 Pipe, Fuel 1 |
4KN-24311-01-00 |
from US $9.92 |
||
|
49
|
49
6E0-28100-01-00 Tool Kit |
6E0-28100-01-00 |
US $40.62 |
||
| replacements | |||||
|
49
|
49
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
|
49
|
49
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
|
50
|
50
6E0-28193-00-94 Plug, Water CheckA.p. |
6E0-28193-00-94 |
US $9.35 |
||
| replacement | |||||
|
50
|
50
6E0-28193-00-00 Plug, Water CheckA.p. |
6E0-28193-00-00 |
from US $9.35 |
||
