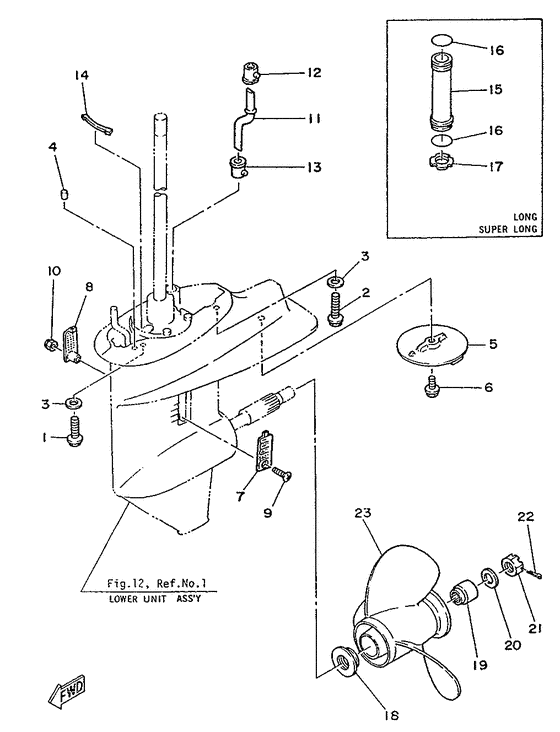

Lower & drive 2 Diagram Yamaha 20 MHS/L
- Year
- 1996
- Model
- 20C
- Model code
- 6A9
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
90105-10059-00 Bolt, Flange |
90105-10059-00 |
from US $10.51 |
||
|
02
|
02
90105-10M12-00 Bolt, Flange |
90105-10M12-00 |
from US $7.65 |
||
|
03
|
03
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
04
|
04
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.69 |
||
|
05
|
05
664-45371-01-00 Tab-Trim |
664-45371-01-00 |
from US $23.90 |
||
|
06
|
06
90105-08M02-00 Bolt, Flange |
90105-08M02-00 |
from US $4.96 |
||
|
07
|
07
689-45214-01-00 Cover, Water Inlet 1 |
689-45214-01-00 |
from US $9.35 |
||
|
08
|
08
689-45215-01-00 Cover, Water Inlet 2 |
689-45215-01-00 |
US $5.73 |
||
|
09
|
09
98180-05025-00 Screw, Oval Head |
98180-05025-00 |
US $2.55 |
||
| replacements | |||||
|
09
|
09
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
09
|
09
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
|
10
|
10
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
10
|
10
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2 |
||
|
11
|
11
664-44361-00-00 Tube, Water 1U.r. |
664-44361-00-00 |
from US $45.32 |
||
|
11
|
11
689-44361-10-00 Tube, Water 1U.r. |
689-44361-10-00 |
from US $40.81 |
||
|
11
|
11
689-44361-20-00 Tube, Water 1U.r. |
689-44361-20-00 |
US $29.08 |
||
|
12
|
12
689-44366-00-00 Damper, Water Seal 2 |
689-44366-00-00 |
US $1.35 |
||
|
13
|
13
626-44365-01-00 Damper, Water Seal 1 |
626-44365-01-00 |
US $3.54 |
||
|
14
|
14
689-44314-00-00 Spacer |
689-44314-00-00 |
US $6.66 |
||
|
15
|
15
689-44362-00-94 Tube, Water 2 |
689-44362-00-94 |
US $33.05 |
||
|
16
|
16
93210-26240-00 O-Ring |
93210-26240-00 |
from US $1.84 |
||
|
17
|
17
689-44328-03-00 Plate |
689-44328-03-00 |
from US $14.86 |
||
|
18
|
18
664-45987-00-00 Spacer |
664-45987-00-00 |
US $42.55 |
||
| replacement | |||||
|
18
|
18
664-45987-01-00 Spacer 1 |
664-45987-01-00 |
from US $42.55 |
||
|
19
|
19
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $15.22 |
||
|
20
|
20
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
21
|
21
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $8.78 |
||
|
22
|
22
91490-30022-00 Pin, Cotter |
91490-30022-00 |
from US $1.13 |
||
| replacement | |||||
|
22
|
22
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
23
|
23
664-45943-01-EL Propeller (3X9-7/8"x8"-F)U.r. |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45943-01-00 Propeller (3X9-7/8"x8"-F)U.r. |
664-45943-01-00 |
from US $216.91 |
||
|
23
|
23
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)U.r. |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)U.r. |
664-45945-00-00 |
from US $216.91 |
||
|
23
|
23
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)U.r. |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)U.r. |
664-45947-01-00 |
from US $216.91 |
||
|
23
|
23
664-45949-02-EL Propeller (3X9-7/8"x13"-F)U.r. |
664-45949-02-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45949-02-00 Propeller (3X9-7/8"x13"-F)U.r. |
664-45949-02-00 |
from US $138.86 |
||
|
23
|
23
664-45952-00-EL Propeller (3X9-7/8"x14"-F)U.r. |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45952-00-00 Propeller (3X9-7/8"x14"-F)U.r. |
664-45952-00-00 |
from US $216.91 |
||
|
23
|
23
664-45941-01-EL Propeller (3X9-7/8"x9"-F)U.r. |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
23
|
23
664-45941-01-00 Propeller (3X9-7/8"x9"-F)U.r. |
664-45941-01-00 |
from US $216.91 |
||
