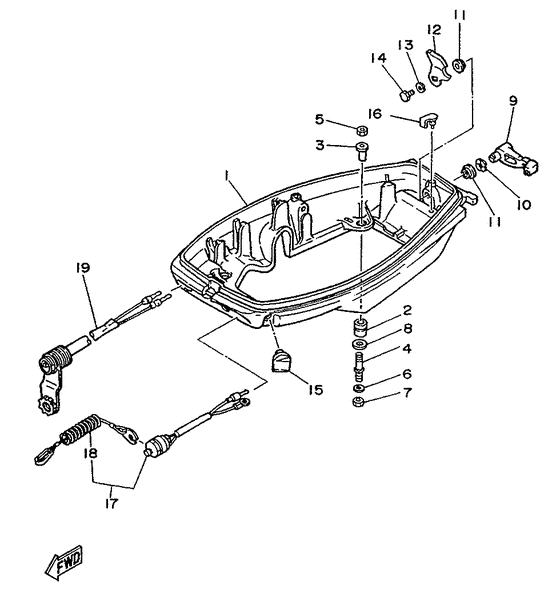

Bottom cowling Diagram Yamaha 20 MHS/L
- Year
- 1990
- Model
- 20C
- Model code
- 6A9
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-42711-01-1D
Cowling, Bottom
|
689-42711-01-1D |
— | ||
| replacement | |||||
|
01
|
01
689-42711-03-1D
Cowling, Bottom
|
689-42711-03-1D |
— | ||
|
02
|
02
90480-15M06-00 Grommet |
90480-15M06-00 |
from US $2 |
||
|
03
|
03
90387-08M25-00 Collar |
90387-08M25-00 |
from US $6.38 |
||
|
04
|
04
5G0-42796-00-00
Collar
|
5G0-42796-00-00 |
— | ||
|
05
|
05
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
06
|
06
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
07
|
07
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
08
|
08
90201-08M87-00 Washer, Plate |
90201-08M87-00 |
from US $4.96 |
||
|
09
|
09
689-42815-00-00 Lever, Clamp |
689-42815-00-00 |
from US $21.54 |
||
|
10
|
10
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.32 |
||
|
11
|
11
90386-12069-00 Bush |
90386-12069-00 |
from US $1.84 |
||
|
12
|
12
689-42816-00-00 Lever, Clamp |
689-42816-00-00 |
from US $17.14 |
||
|
13
|
13
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
14
|
14
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
14
|
14
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
15
|
15
689-42725-00-00 Grommet |
689-42725-00-00 |
US $10.20 |
||
| replacements | |||||
|
15
|
15
689-42725-01-00 Grommet |
689-42725-01-00 |
US $10.20 |
||
|
15
|
15
689-42725-02-00 Grommet |
689-42725-02-00 |
from US $9.59 |
||
|
16
|
16
647-42523-00-00 Spacer, Friction |
647-42523-00-00 |
from US $4.53 |
||
|
17
|
17
689-82575-02-00 Engine Stop Switch Assy |
689-82575-02-00 |
US $82.48 |
||
| replacement | |||||
|
17
|
17
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $50.98 |
||
|
18
|
18
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
19
|
19
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
