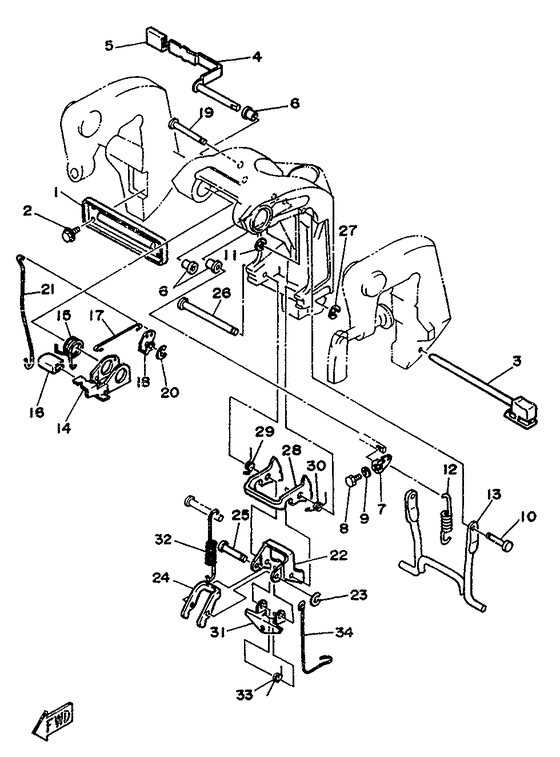

Bracket 2 Diagram Yamaha 20 MHOS/L
- Year
- 1992
- Model
- 20D
- Model code
- 6L3
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-43165-00-00
Plate, Tilt Lock
|
6L2-43165-00-00 |
— | ||
|
02
|
02
97515-06210-00 Bolt, With Washer |
97515-06210-00 |
US $4.53 |
||
| replacements | |||||
|
02
|
02
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
02
|
02
97595-06510-00 Bolt, With Washer(61B) |
97595-06510-00 |
US $3.68 |
||
|
02
|
02
97E95-06510-00 Bolt, Hexagon W/w De |
97E95-06510-00 |
from US $1.07 |
||
|
03
|
03
6L2-43160-00-00 Tilt Rod Assy |
6L2-43160-00-00 |
US $24.65 |
||
| replacement | |||||
|
03
|
03
6L2-43160-01-00 Tilt Rod Assy |
6L2-43160-01-00 |
from US $17.54 |
||
|
04
|
04
6L2-43630-00-00 Tilt Lever Assy |
6L2-43630-00-00 |
US $36.75 |
||
| replacement | |||||
|
04
|
04
6L2-43630-01-00 Tilt Lever Assy |
6L2-43630-01-00 |
from US $36.75 |
||
|
05
|
05
682-43318-01-00 Cover |
682-43318-01-00 |
from US $3.97 |
||
|
06
|
06
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
07
|
07
6L2-43682-01-00 Lever, Shallow Water Drive 2 |
6L2-43682-01-00 |
from US $5.81 |
||
|
08
|
08
97395-05010-00 Bolt (682) |
97395-05010-00 |
from US $1.06 |
||
| replacement | |||||
|
08
|
08
97095-05010-00 Bolt |
97095-05010-00 |
from US $1.78 |
||
|
09
|
09
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
10
|
10
6L2-43191-01-00 Shaft, Stopper |
6L2-43191-01-00 |
from US $6.23 |
||
|
11
|
11
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
12
|
12
90506-00M27-00
Spring, Tension
|
90506-00M27-00 |
— | ||
|
13
|
13
6L2-43350-01-00 Receiver Assy |
6L2-43350-01-00 |
US $103.76 |
||
| replacement | |||||
|
13
|
13
6L2-43350-02-00 Receiver Assy |
6L2-43350-02-00 |
from US $103.76 |
||
|
14
|
14
6L2-43631-00-00 Lever, Tilt |
6L2-43631-00-00 |
from US $17.12 |
||
|
15
|
15
6L2-43188-00-00 Spring |
6L2-43188-00-00 |
from US $5.81 |
||
|
16
|
16
6L2-43633-10-00 Cover, Tilt Lever |
6L2-43633-10-00 |
from US $3.83 |
||
|
17
|
17
6L2-43611-00-00 Shaft, Tilt Lock |
6L2-43611-00-00 |
from US $3.26 |
||
|
18
|
18
6L2-43641-00-00 Lever, Tilt |
6L2-43641-00-00 |
from US $8.93 |
||
|
19
|
19
6L2-43659-00-00 Shaft, Reverse Lock |
6L2-43659-00-00 |
from US $10.48 |
||
|
20
|
20
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
21
|
21
6L2-43617-00-00 Rod, Tilt Lock |
6L2-43617-00-00 |
from US $8.64 |
||
|
22
|
22
6L2-43613-00-00 Arm, Tilt Lock |
6L2-43613-00-00 |
from US $20.54 |
||
|
23
|
23
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
24
|
24
6L2-43624-00-00 Plate, Tilt Rock |
6L2-43624-00-00 |
from US $21.82 |
||
|
25
|
25
6L2-43336-00-00 Pin |
6L2-43336-00-00 |
from US $5.81 |
||
|
26
|
26
6J8-43611-01-00 Shaft, Tilt Lock |
6J8-43611-01-00 |
from US $6.52 |
||
|
27
|
27
99080-05600-00 Circlip |
99080-05600-00 |
from US $1.56 |
||
|
28
|
28
6L2-43614-00-00 Plate, Tilt Lock |
6L2-43614-00-00 |
from US $27.23 |
||
|
29
|
29
90508-12M28-00 Spring, Torsion |
90508-12M28-00 |
from US $2.27 |
||
|
30
|
30
90508-12M29-00 Spring, Torsion |
90508-12M29-00 |
from US $2.27 |
||
|
31
|
31
6L2-43615-00-00 Plate, Tilt Lock |
6L2-43615-00-00 |
from US $18.32 |
||
|
32
|
32
90506-23M11-00 Spring, Tension |
90506-23M11-00 |
from US $8.50 |
||
|
33
|
33
6L2-43657-00-00 Spring, Lock |
6L2-43657-00-00 |
from US $2.41 |
||
|
34
|
34
6L2-43676-00-00 Hook |
6L2-43676-00-00 |
from US $12.04 |
||
