Magneto Diagram Yamaha 20 MHOS/L
- Year
- 1992
- Model
- 20D
- Model code
- 6L3
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?

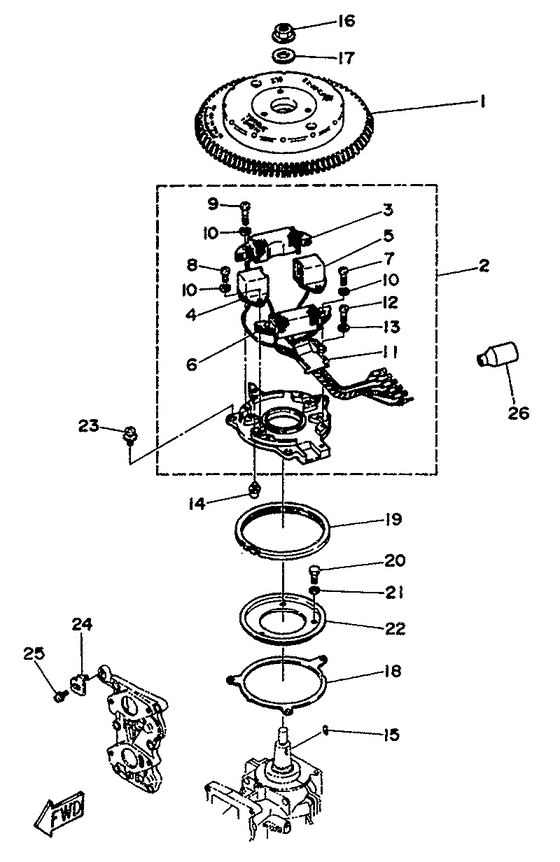

| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-85550-A0-00
Rotor Assembly
|
6L2-85550-A0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
6L2-85560-F1-00
Base Assembly
|
6L2-85560-F1-00 |
— | ||
|
03
|
03
6L2-85520-F0-00
Coil, Charge
|
6L2-85520-F0-00 |
— | ||
|
04
|
04
6L2-85592-F1-00
Pulser Coil Assembly
|
6L2-85592-F1-00 |
— | ||
|
05
|
05
6L2-85595-F1-00
Coil, Pulser
|
6L2-85595-F1-00 |
— | ||
|
06
|
06
6L2-85533-F0-00
Coil, Lighting
|
6L2-85533-F0-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
98501-05020-00 Screw, Pan Head |
98501-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
07
|
07
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.34 |
||
|
08
|
08
98501-05010-00 Screw, Pan Head |
98501-05010-00 |
US $1.21 |
||
| replacement | |||||
|
08
|
08
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.01 |
||
|
09
|
09
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
09
|
09
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
10
|
10
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
6G1-85548-70-00 Holder |
6G1-85548-70-00 |
from US $9.21 |
||
|
12
|
12
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
13
|
13
929-02041-00-00
Washer, Spring
|
929-02041-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
14
|
14
663-85518-00-00 Joint, Ball |
663-85518-00-00 |
from US $8.64 |
||
|
15
|
15
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
15
|
15
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.35 |
||
|
16
|
16
90179-12M04-00 Nut |
90179-12M04-00 |
from US $12.80 |
||
|
17
|
17
90201-13M42-00 Washer, Plate |
90201-13M42-00 |
from US $4.11 |
||
|
18
|
18
6G1-41611-00-00 Retainer, Magneto Base |
6G1-41611-00-00 |
US $22.53 |
||
| replacement | |||||
|
18
|
18
6N0-G1611-00-00 Retainer Magneto |
6N0-G1611-00-00 |
from US $22.53 |
||
|
19
|
19
695-41613-00-00 Plate, Base Friction |
695-41613-00-00 |
from US $18.43 |
||
| replacement | |||||
|
19
|
19
6N0-G1613-00-00 Plate Base Friction |
6N0-G1613-00-00 |
US $19.27 |
||
|
20
|
20
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
22
|
22
6G1-41612-00-00 Retainer, Magneto Base |
6G1-41612-00-00 |
from US $20.12 |
||
|
23
|
23
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
24
|
24
6L2-81332-00-00 Plate, Timing |
6L2-81332-00-00 |
from US $6.89 |
||
|
25
|
25
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
26
|
26
6L2-82599-00-00 Cover, Connector |
6L2-82599-00-00 |
from US $2.55 |
||
| replacement | |||||
|
26
|
26
6L2-82599-01-00 Cover, Connecter |
6L2-82599-01-00 |
from US $2.55 |
||
