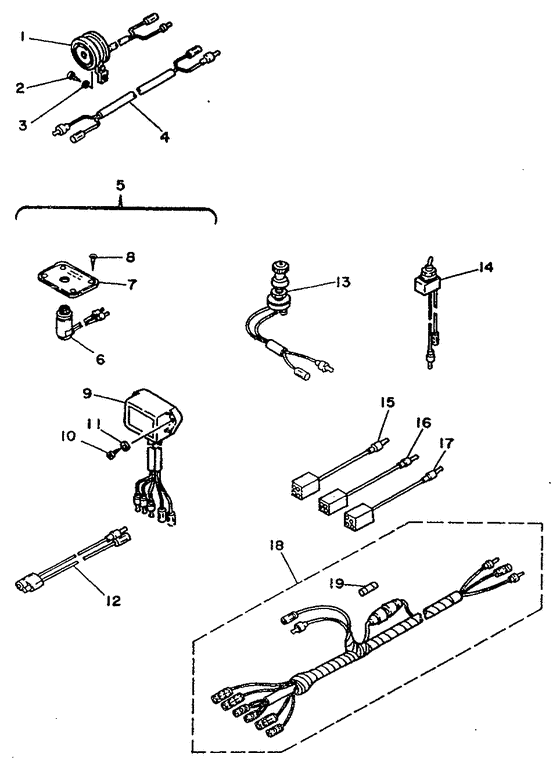

Optional parts 4 Diagram Yamaha 20 MHOS/L
- Year
- 1992
- Model
- 20D
- Model code
- 6L3
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
688-83383-11-00 Buzzer |
688-83383-11-00 |
US $54.99 |
||
| replacement | |||||
|
01
|
01
688-83383-12-00 Buzzer |
688-83383-12-00 |
from US $54.99 |
||
|
02
|
02
97780-60516-00 Screw, Tapping |
97780-60516-00 |
from US $2.23 |
||
| replacement | |||||
|
02
|
02
97780-60116-00 Screw, Tapping |
97780-60116-00 |
from US $3.73 |
||
|
03
|
03
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
04
|
04
668-83373-10-00
Lead, Horn
|
668-83373-10-00 |
— | ||
|
05
|
05
688-W0088-40-00
Pilot Lamp Kit
|
688-W0088-40-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
633-84301-01-00
Pilot Light Assy 1
|
633-84301-01-00 |
— | ||
|
07
|
07
663-84309-00-00 Plate, Set |
663-84309-00-00 |
US $82.62 |
||
|
08
|
08
95428-31316-00 Screw, Wood |
95428-31316-00 |
US $7.65 |
||
| replacement | |||||
|
08
|
08
901-6003M-01-00 Screw, Round Tapping |
901-6003M-01-00 |
from US $6.35 |
||
|
10
|
10
97780-60120-00 Screw, Tapping |
97780-60120-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
97780-60520-00 Screw, Tapping |
97780-60520-00 |
from US $1.66 |
||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
663-82521-09-00
Wire, Lead
|
663-82521-09-00 |
— | ||
|
13
|
13
688-82520-00-00 Light Switch Assy |
688-82520-00-00 |
from US $43.38 |
||
|
14
|
14
688-82526-00-00 Switch, Lamp |
688-82526-00-00 |
from US $62.03 |
||
|
15
|
15
6Y5-82149-00-00 Wire, Lead (Blue) (L300) |
6Y5-82149-00-00 |
from US $6.80 |
||
|
16
|
16
6Y5-82117-00-00 Wire, Lead (Black) (L300) |
6Y5-82117-00-00 |
from US $6.52 |
||
|
17
|
17
6Y5-82521-00-00 Wire, Lead (Yellow) (L300) |
6Y5-82521-00-00 |
from US $6.52 |
||
|
18
|
18
6Y5-83553-00-00 Wire, Lead (L=2.5M) |
6Y5-83553-00-00 |
US $57.20 |
||
| replacement | |||||
|
18
|
18
6Y5-83553-N0-00 Wire, Lead (L=2.5M) |
6Y5-83553-N0-00 |
US $88.98 |
||
|
19
|
19
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
