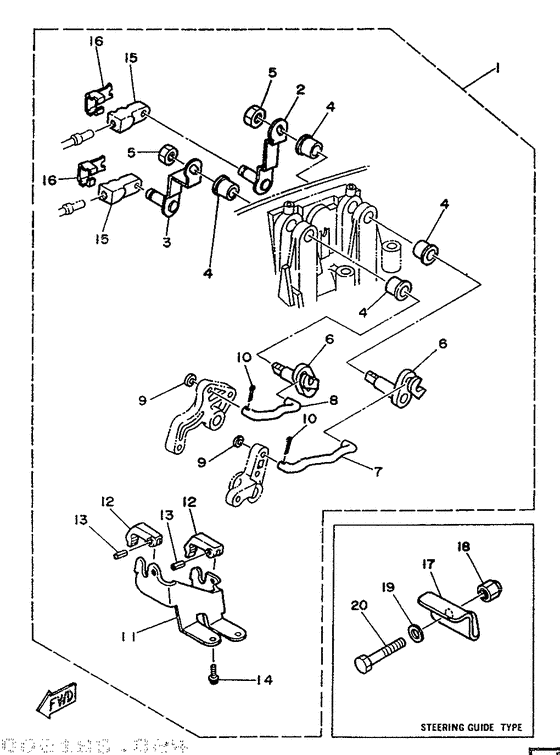

Remo-con attachment Diagram Yamaha 20 MHOS/L
- Year
- 1992
- Model
- 20D
- Model code
- 6L3
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-48501-11-00 Remote Cont. Attachment Assy |
6L2-48501-11-00 |
from US $112.19 |
||
|
02
|
02
6L2-48544-01-00 Lever, Shiftcontrol |
6L2-48544-01-00 |
from US $17.01 |
||
|
03
|
03
6L2-48534-01-00 Throttle Lever, Control |
6L2-48534-01-00 |
from US $31.03 |
||
|
04
|
04
90386-10009-00 Bush |
90386-10009-00 |
from US $4.11 |
||
|
05
|
05
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.30 |
||
|
06
|
06
6L2-42154-01-00 Lever, Throttle Control |
6L2-42154-01-00 |
from US $12.56 |
||
|
07
|
07
6L2-42191-01-00 Rod 1 |
6L2-42191-01-00 |
from US $14.03 |
||
|
08
|
08
6L2-42192-20-00 Rod 2 |
6L2-42192-20-00 |
from US $10.77 |
||
|
09
|
09
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
10
|
10
91490-20010-00 Pin. Cotter |
91490-20010-00 |
from US $1.98 |
||
|
11
|
11
6L2-48531-00-00 Bracket, Remote Control 1 |
6L2-48531-00-00 |
from US $20.54 |
||
|
12
|
12
682-48538-50-00 Clamp, Cable 1 |
682-48538-50-00 |
from US $5.67 |
||
|
13
|
13
91690-30012-00 Pin, Spring |
91690-30012-00 |
from US $2.69 |
||
|
14
|
14
90105-06M23-00 Bolt Flange |
90105-06M23-00 |
from US $2.05 |
||
|
15
|
15
6G8-26363-00-00 End, Wire 1 |
6G8-26363-00-00 |
from US $3.32 |
||
|
16
|
16
6G8-26364-00-00 End, Cable |
6G8-26364-00-00 |
from US $4.82 |
||
|
17
|
17
6L2-48511-00-00 Hook, Steering |
6L2-48511-00-00 |
from US $32.60 |
||
|
18
|
18
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
18
|
18
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
19
|
19
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
20
|
20
973-95100-40-00 Bolt |
973-95100-40-00 |
from US $3.40 |
||
| replacements | |||||
|
20
|
20
970-75100-40-00 Bolt |
970-75100-40-00 |
from US $3.14 |
||
|
20
|
20
97D-75100-40-00 BOLT HEXAGON DEEP RECESS |
97D-75100-40-00 |
from US $3.40 |
||
