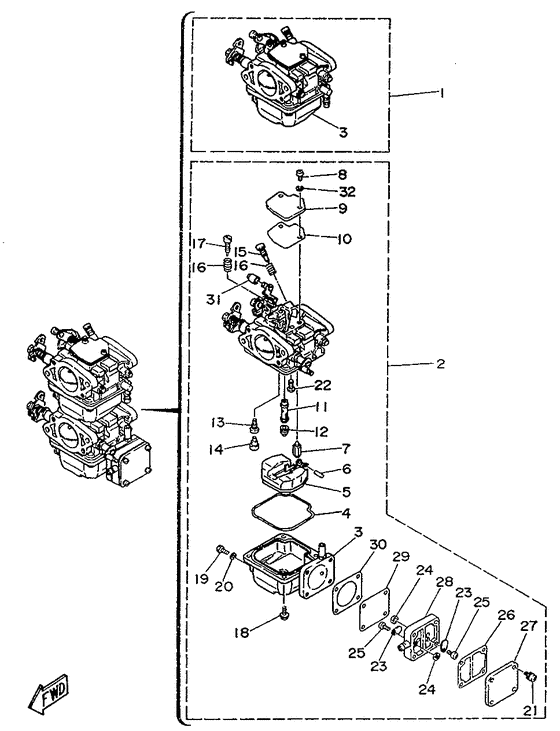

Carburetor Diagram Yamaha 20 MHOS/L
- Year
- 1993
- Model
- 20D
- Model code
- 6L3
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-14301-01-00
Carburateur Complet 1
Ur |
6L2-14301-01-00 |
— | ||
| replacement | |||||
|
01
|
01
6L2-14301-02-00 Carburetor Assy 1Ur |
6L2-14301-02-00 |
from US $258.52 |
||
|
01
|
01
6L3-14301-00-00
Carburetor Assembly 1
Ur |
6L3-14301-00-00 |
— | ||
| replacement | |||||
|
01
|
01
6L3-14301-01-00 Carburetor Assy 1Ur |
6L3-14301-01-00 |
from US $327.74 |
||
|
02
|
02
6L3-14302-00-00
Carburetor Assembly 2
Ur |
6L3-14302-00-00 |
— | ||
| replacement | |||||
|
02
|
02
6L3-14302-01-00 Carburetor Assy 2Ur |
6L3-14302-01-00 |
from US $369.77 |
||
|
02
|
02
6L2-14302-01-00
Carburateur Complet 2
Ur |
6L2-14302-01-00 |
— | ||
| replacement | |||||
|
02
|
02
6L2-14302-02-00 Carburetor Assy 2Ur |
6L2-14302-02-00 |
from US $429.41 |
||
|
03
|
03
6L2-14381-00-00 Body, Float Chamber 1Ur |
6L2-14381-00-00 |
from US $62.72 |
||
|
03
|
03
6L2-14383-00-00 Screw, DrainUr |
6L2-14383-00-00 |
from US $74.83 |
||
|
04
|
04
6L2-14384-00-00 Gasket, Float Chamber |
6L2-14384-00-00 |
US $6.24 |
||
| replacement | |||||
|
04
|
04
6L2-14384-01-00 GASKET FLOAT CHAMBER |
6L2-14384-01-00 |
from US $6.24 |
||
|
05
|
05
6L2-14385-00-00 Float |
6L2-14385-00-00 |
from US $22.89 |
||
|
06
|
06
6E5-14386-01-00 Pin, Float |
6E5-14386-01-00 |
from US $3.05 |
||
|
07
|
07
6L2-14392-00-00 Valve |
6L2-14392-00-00 |
from US $16.92 |
||
|
08
|
08
985-80040-10-00 Screw, Pan Head |
985-80040-10-00 |
from US $1.07 |
||
|
09
|
09
6L2-14157-00-00 Cover, Mixing |
6L2-14157-00-00 |
from US $13.74 |
||
|
10
|
10
6L2-14399-00-00 Gasket |
6L2-14399-00-00 |
US $5.97 |
||
|
11
|
11
6L2-14341-00-00 Nozzle, Main |
6L2-14341-00-00 |
from US $26.92 |
||
|
12
|
12
30X-14343-63-00 Jet, Main (125) |
30X-14343-63-00 |
from US $18.07 |
||
|
13
|
13
6L2-14342-30-00 Jet, Pilot (60) |
6L2-14342-30-00 |
from US $15.44 |
||
|
14
|
14
50M-14355-00-00
Plug
|
50M-14355-00-00 |
— | ||
| replacement | |||||
|
14
|
14
50M-14355-01-00 PLUG |
50M-14355-01-00 |
from US $2.70 |
||
|
15
|
15
6L2-14323-00-00 Screw, Air Adjusting |
6L2-14323-00-00 |
from US $13.45 |
||
|
16
|
16
646-14212-01-00 Spring, Pilot Adjusting |
646-14212-01-00 |
from US $4.11 |
||
|
17
|
17
664-14231-01-00
Jet, Main
|
664-14231-01-00 |
— | ||
|
18
|
18
97980-04112-00 Screw, With Washer |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
18
|
18
98580-04012-00 Screw, Pan Head (686) |
98580-04012-00 |
from US $1.28 |
||
|
19
|
19
677-14383-01-00 Screw, Drain |
677-14383-01-00 |
from US $6.94 |
||
|
20
|
20
6L2-14398-00-00 Gasket |
6L2-14398-00-00 |
from US $1.98 |
||
|
21
|
21
677-24444-01-00 Screw |
677-24444-01-00 |
from US $3.38 |
||
| replacement | |||||
|
21
|
21
677-24444-09-00 Screw |
677-24444-09-00 |
from US $2.94 |
||
|
22
|
22
98980-04006-00 Screw, Bind |
98980-04006-00 |
from US $1.42 |
||
|
23
|
23
6A0-24421-01-00 Valve,check |
6A0-24421-01-00 |
US $20.69 |
||
| replacement | |||||
|
23
|
23
62Y-24421-01-00 Valve, Check |
62Y-24421-01-00 |
from US $8.08 |
||
|
24
|
24
95380-03600-00 NutUr |
95380-03600-00 |
from US $1.56 |
||
|
24
|
24
98813-03100-00 NutUr |
98813-03100-00 |
US $2.20 |
||
|
25
|
25
6E7-14325-00-00 Screw, Pan Head |
6E7-14325-00-00 |
from US $2.55 |
||
|
26
|
26
677-24435-01-00 Gasket, Body 2Ur |
677-24435-01-00 |
from US $11.45 |
||
|
26
|
26
6L2-24435-00-00 Gasket, Body 2Ur |
6L2-24435-00-00 |
from US $14.70 |
||
|
27
|
27
6L2-24413-00-00 Body 2 |
6L2-24413-00-00 |
from US $12.25 |
||
|
28
|
28
682-24412-01-00 Body 1 |
682-24412-01-00 |
US $26.64 |
||
| replacement | |||||
|
28
|
28
682-24412-00-00 Body 1 |
682-24412-00-00 |
from US $26.64 |
||
|
29
|
29
677-24411-02-00 Diaphragm |
677-24411-02-00 |
from US $16.09 |
||
|
30
|
30
677-24434-02-00 Gasket, Body |
677-24434-02-00 |
from US $13.74 |
||
|
31
|
31
6L2-14578-00-00
Collar
|
6L2-14578-00-00 |
— | ||
| replacements | |||||
|
31
|
31
999-99034-99-00 Collar & Stopper Set |
999-99034-99-00 |
US $59.24 |
||
|
31
|
31
6L2-14578-01-00 Collar |
6L2-14578-01-00 |
from US $21.39 |
||
|
32
|
32
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
