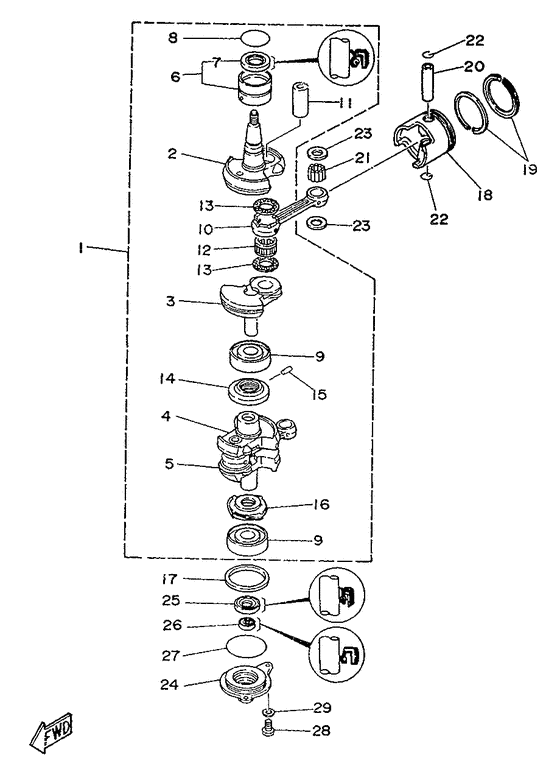

Crankshaft & Piston Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-11400-10-00 Crankshaft Assembly |
6L2-11400-10-00 |
US $1,510.01 |
||
|
02
|
02
6L2-11412-00-00 Crank 1 |
6L2-11412-00-00 |
US $226.58 |
||
|
03
|
03
6L2-11422-00-00 Crank 2 |
6L2-11422-00-00 |
US $208.62 |
||
|
04
|
04
6L2-11432-00-00 Crank 3 |
6L2-11432-00-00 |
US $192.04 |
||
|
05
|
05
6L2-11442-00-00 Crank 4 |
6L2-11442-00-00 |
US $226.58 |
||
|
10
|
10
6L2-11651-00-00 Rod, Connecting |
6L2-11651-00-00 |
from US $131.80 |
||
|
11
|
11
6L2-11681-00-00 Pin, Crank 1 |
6L2-11681-00-00 |
from US $19.88 |
||
|
14
|
14
6L2-11515-00-00 Seal, Labyrinth 1 |
6L2-11515-00-00 |
from US $42.55 |
||
|
16
|
16
6J8-11536-00-00 Gear, Drive |
6J8-11536-00-00 |
from US $135.40 |
||
|
18
|
18
6L2-11631-00-97 Piston (Std) |
6L2-11631-00-97 |
from US $52.86 |
||
|
18
|
18
6L2-11635-00-00 Piston (0.25Mm O/s)Ap |
6L2-11635-00-00 |
from US $58.24 |
||
|
18
|
18
6L2-11636-00-00 Piston (0.50Mm O/s)Ap |
6L2-11636-00-00 |
from US $53.86 |
||
|
19
|
19
6L2-11610-00-00 Piston Ring Set (Std)(std) |
6L2-11610-00-00 |
from US $38.72 |
||
|
19
|
19
6L2-11610-10-00 Piston Ring Set (0.25Mm O/s)Ap |
6L2-11610-10-00 |
from US $38.04 |
||
|
19
|
19
6L2-11610-20-00 Piston Ring Set (0.50Mm O/s)Ap |
6L2-11610-20-00 |
from US $36.02 |
||
|
20
|
20
648-11633-00-00 Pin, Piston |
648-11633-00-00 |
from US $8.08 |
||
|
24
|
24
6L2-15396-00-5B
Housing, Oil Seal
|
6L2-15396-00-5B |
— | ||
| replacement | |||||
|
24
|
24
6L2-15396-00-CA
Housing, Oil Seal
|
6L2-15396-00-CA |
— | ||
