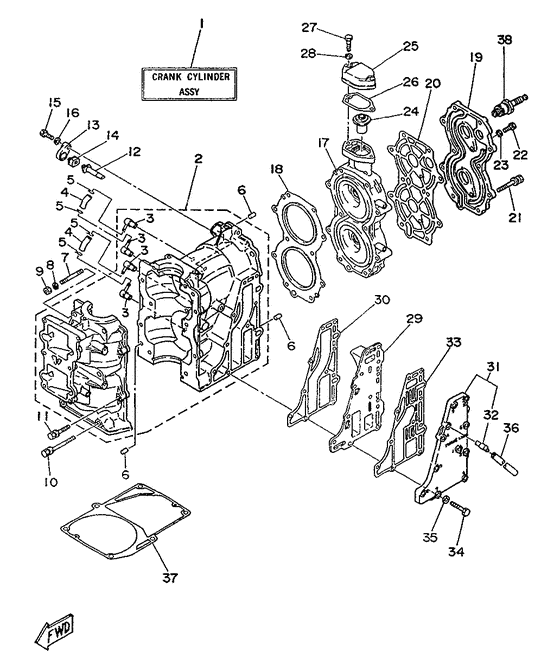

Cylinder Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-W0090-11-4D Crank Cylinder Assembly |
6L2-W0090-11-4D |
US $2,825.80 |
||
| replacement | |||||
|
01
|
01
6L2-W0090-12-1S Crank Cylinder Assy |
6L2-W0090-12-1S |
from US $2,466.18 |
||
|
02
|
02
6L2-15100-10-94 Crankcase Assembly |
6L2-15100-10-94 |
US $2,151.60 |
||
| replacement | |||||
|
02
|
02
6L2-15100-10-00 Crankcase Assy |
6L2-15100-10-00 |
from US $1,260.06 |
||
|
03
|
03
6E5-11372-00-00 Nipple, Hose |
6E5-11372-00-00 |
US $12.89 |
||
| replacement | |||||
|
03
|
03
6E5-11372-01-00 Nipple, Hose |
6E5-11372-01-00 |
from US $8.08 |
||
|
12
|
12
6J8-11325-00-00 Anode |
6J8-11325-00-00 |
from US $6.39 |
||
|
13
|
13
6H3-11327-00-94 Cover, Anode |
6H3-11327-00-94 |
from US $18.99 |
||
|
14
|
14
6H3-11328-00-00 Grommet, Anode |
6H3-11328-00-00 |
US $2.64 |
||
|
17
|
17
6L2-11111-01-94 Head, Cylinder 1 |
6L2-11111-01-94 |
US $157.50 |
||
| replacement | |||||
|
17
|
17
6L2-11111-01-1S Head, Cylinder 1 |
6L2-11111-01-1S |
from US $157.50 |
||
|
18
|
18
6L2-11181-A1-00 Gasket, Cylinder Head 1 |
6L2-11181-A1-00 |
US $58.03 |
||
| replacement | |||||
|
18
|
18
6L2-11181-A3-00 Gasket, Cylinder Head 1 |
6L2-11181-A3-00 |
from US $35.70 |
||
|
19
|
19
6L2-11191-00-9M Cover, Cylinder Head 1 |
6L2-11191-00-9M |
US $72.53 |
||
| replacement | |||||
|
19
|
19
6L2-11191-00-1S Cover, Cylinder Head 1 |
6L2-11191-00-1S |
from US $43.54 |
||
|
20
|
20
6L2-11193-A1-00 Gasket, Head Cover 1 |
6L2-11193-A1-00 |
from US $15.80 |
||
|
24
|
24
6E5-12411-20-00 Thermostat |
6E5-12411-20-00 |
US $50.01 |
||
| replacement | |||||
|
24
|
24
6E5-12411-30-00 Thermostat |
6E5-12411-30-00 |
from US $40.10 |
||
|
25
|
25
6H4-12413-00-9M Cover, Thermostat |
6H4-12413-00-9M |
US $34 |
||
| replacement | |||||
|
25
|
25
6H4-12413-00-1S Cover, Thermostat |
6H4-12413-00-1S |
from US $17.71 |
||
|
26
|
26
61A-12414-A0-00 Gasket, Cover |
61A-12414-A0-00 |
from US $4.69 |
||
|
29
|
29
6L2-41111-00-9M Inner Cover, Exhaust |
6L2-41111-00-9M |
US $69.36 |
||
| replacement | |||||
|
29
|
29
6L2-41111-00-1S Inner Cover, Exhaust |
6L2-41111-00-1S |
from US $47.29 |
||
|
30
|
30
6L2-41112-A1-00 Gasket, Exhaust Inner Cover |
6L2-41112-A1-00 |
US $18.84 |
||
| replacement | |||||
|
30
|
30
6L2-41112-A3-00 Gasket, Exhaust Inner Cover |
6L2-41112-A3-00 |
from US $18.84 |
||
|
31
|
31
6L2-41113-00-9M Outer Cover, Exhaust |
6L2-41113-00-9M |
US $60.51 |
||
| replacement | |||||
|
31
|
31
6L2-41113-00-1S Outer Cover, Exhaust |
6L2-41113-00-1S |
from US $56.81 |
||
|
32
|
32
676-11372-00-00 Nipple, Hose |
676-11372-00-00 |
from US $8.76 |
||
|
33
|
33
6L2-41114-A1-00 Gasket, Exhaust Outer Cover |
6L2-41114-A1-00 |
from US $9.95 |
||
|
37
|
37
6L2-45113-A1-00 Gasket, Upper Casing |
6L2-45113-A1-00 |
US $27.20 |
||
| replacement | |||||
|
37
|
37
6L2-45113-A2-00 Gasket, Upper Casing |
6L2-45113-A2-00 |
from US $24.50 |
||
