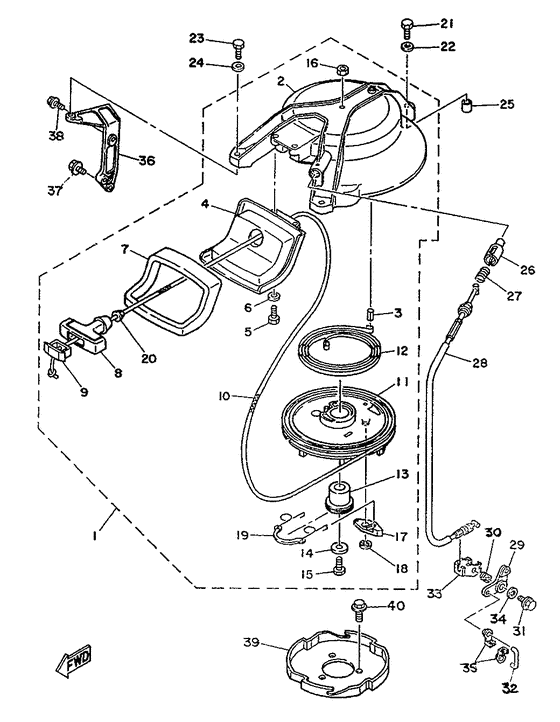

Starter Diagram Yamaha 20 MHOS/L
- Year
- 1996
- Model
- 20D
- Model code
- 6L3
- Year
- 1996
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (General) (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6L2-15710-01-00 Starter Assembly |
6L2-15710-01-00 |
US $484.22 |
||
| replacements | |||||
|
01
|
01
6L2-15710-02-00 Starter Assy |
6L2-15710-02-00 |
US $484.22 |
||
|
01
|
01
6L2-15710-03-00 Starter Assy |
6L2-15710-03-00 |
US $424.13 |
||
|
02
|
02
6L2-15711-00-94 Case, Starter |
6L2-15711-00-94 |
from US $111.36 |
||
|
04
|
04
6L2-15758-00-94 Guide, Rope |
6L2-15758-00-94 |
US $53.74 |
||
| replacement | |||||
|
04
|
04
6L2-15758-01-94 Guide, Rope |
6L2-15758-01-94 |
from US $52.76 |
||
|
07
|
07
6L2-15762-00-00 Seal, Rubber 2 |
6L2-15762-00-00 |
from US $36.47 |
||
|
08
|
08
689-15755-01-00 Handle, Starter |
689-15755-01-00 |
US $10.63 |
||
| replacement | |||||
|
08
|
08
689-15755-02-00 HANDLE STARTER |
689-15755-02-00 |
from US $6.06 |
||
|
09
|
09
6F5-15779-02-00 Cover |
6F5-15779-02-00 |
from US $2.36 |
||
|
11
|
11
6J8-15714-00-00 Drum, Sheave |
6J8-15714-00-00 |
from US $38.41 |
||
|
13
|
13
677-15717-01-00 Shaft, Starter |
677-15717-01-00 |
from US $30.04 |
||
|
17
|
17
676-15741-03-00 Pawl, Drive |
676-15741-03-00 |
from US $8.08 |
||
|
19
|
19
6J8-15705-00-00 Spring, Drive Pawl |
6J8-15705-00-00 |
from US $12.62 |
||
|
20
|
20
6A0-15789-00-00
Damper
|
6A0-15789-00-00 |
— | ||
| replacement | |||||
|
20
|
20
697-15789-00-00 Damper |
697-15789-00-00 |
US $4.39 |
||
|
26
|
26
656-15748-00-00 Plunger, Starter Stop |
656-15748-00-00 |
from US $11.33 |
||
|
28
|
28
6L2-15770-00-00 Cable Comp., Starter Stop |
6L2-15770-00-00 |
from US $18.99 |
||
|
29
|
29
6L2-15746-00-00 Arm |
6L2-15746-00-00 |
from US $12.18 |
||
|
32
|
32
6L2-15747-00-00 Link |
6L2-15747-00-00 |
from US $3.97 |
||
|
33
|
33
6L2-15774-00-00 Stay 4 |
6L2-15774-00-00 |
from US $10.77 |
||
|
35
|
35
661-41262-02-00 Joint, Choke Lever |
661-41262-02-00 |
from US $7.93 |
||
|
36
|
36
6L2-15772-00-94 Stay 2 |
6L2-15772-00-94 |
from US $29.33 |
||
|
39
|
39
6L2-15723-01-00 Pulley, Starter |
6L2-15723-01-00 |
US $29.89 |
||
| replacement | |||||
|
39
|
39
6L2-15723-02-00 PULLEY, STARTER |
6L2-15723-02-00 |
from US $29.89 |
||
