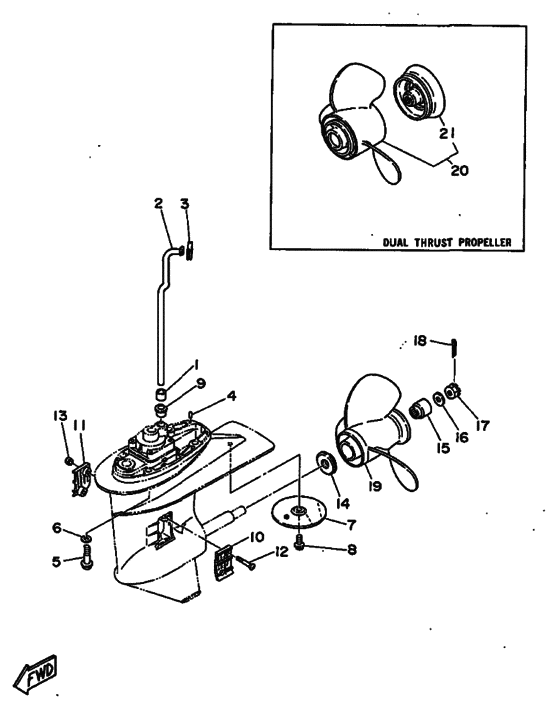

Lower casing & drive Diagram Yamaha 20 MHOS/L
- Year
- 1998
- Model
- 20D
- Model code
- 6L3
- Year
- 1998
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Europe (10C)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-44368-00-00 Rubber, Water Seal 4 |
6L2-44368-00-00 |
US $2.55 |
||
|
2
|
2
6L2-44361-00-00 Tube, Water 1UR SHORT |
6L2-44361-00-00 |
from US $34.63 |
||
|
2
|
2
6L2-44361-10-00 Tube, Water 1UR LONG |
6L2-44361-10-00 |
from US $40.39 |
||
|
3
|
3
6L2-44366-00-00 Damper, Water Seal 2 |
6L2-44366-00-00 |
US $5.67 |
||
|
4
|
4
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
5
|
5
90105-10M12-00 Bolt, Flange |
90105-10M12-00 |
from US $7.65 |
||
|
6
|
6
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.07 |
||
|
7
|
7
664-45371-01-00 Tab-Trim |
664-45371-01-00 |
from US $23.90 |
||
|
8
|
8
90105-08M02-00 Bolt, Flange |
90105-08M02-00 |
from US $4.96 |
||
|
9
|
9
6L2-44367-00-00 Damper, Water Seal 3 |
6L2-44367-00-00 |
US $3.83 |
||
|
10
|
10
6L2-45214-00-00 Cover, Water Inlet 1 |
6L2-45214-00-00 |
from US $7.23 |
||
|
11
|
11
6L2-45215-00-00 Cover, Water Inlet 2 |
6L2-45215-00-00 |
from US $7.23 |
||
|
12
|
12
98780-05530-00 Screw, Flat Head |
98780-05530-00 |
from US $2.55 |
||
|
13
|
13
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2 |
||
|
14
|
14
6L2-45987-01-00 Spacer 1 |
6L2-45987-01-00 |
from US $28.76 |
||
|
15
|
15
689-45997-00-00 Spacer 2 |
689-45997-00-00 |
from US $15.22 |
||
|
16
|
16
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.42 |
||
|
17
|
17
90171-14013-00 Nut, Castle |
90171-14013-00 |
from US $8.78 |
||
|
18
|
18
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
19
|
19
664-45941-01-EL Propeller (3X9-7/8"x9"-F)UR |
664-45941-01-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45941-01-00 Propeller (3X9-7/8"x9"-F)UR |
664-45941-01-00 |
from US $216.91 |
||
|
19
|
19
664-45943-01-EL Propeller (3X9-7/8"x8"-F)UR |
664-45943-01-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45943-01-00 Propeller (3X9-7/8"x8"-F)UR |
664-45943-01-00 |
from US $216.91 |
||
|
19
|
19
664-45945-00-EL Propeller (3X9-7/8"x10-1/2"-F)UR |
664-45945-00-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45945-00-00 Propeller (3X9-7/8"x10-1/2"-F)UR |
664-45945-00-00 |
from US $216.91 |
||
|
19
|
19
664-45947-01-EL Propeller (3X9-7/8"x11-1/4"-F)UR |
664-45947-01-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45947-01-00 Propeller (3X9-7/8"x11-1/4"-F)UR |
664-45947-01-00 |
from US $216.91 |
||
|
19
|
19
664-45949-02-EL Propeller (3X9-7/8"x13"-F)UR |
664-45949-02-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45949-02-00 Propeller (3X9-7/8"x13"-F)UR |
664-45949-02-00 |
from US $138.86 |
||
|
19
|
19
664-45952-00-EL Propeller (3X9-7/8"x14"-F)UR |
664-45952-00-EL |
US $216.91 |
||
| replacement | |||||
|
19
|
19
664-45952-00-00 Propeller (3X9-7/8"x14"-F)UR |
664-45952-00-00 |
from US $216.91 |
||
|
19
|
19
664-45970-00-98 Propeller (3X9-1/8"x13"-F)UR STAINLESS STEEL PROPELL |
664-45970-00-98 |
US $710.16 |
||
| replacement | |||||
|
19
|
19
664-45970-00-00 Propeller (3X9-1/8"x13"-F)UR STAINLESS STEEL PROPELL |
664-45970-00-00 |
from US $710.16 |
||
|
19
|
19
664-45972-00-98 Propeller (3X9-1/8"x12"-F)UR STAINLESS STEEL PROPELL |
664-45972-00-98 |
US $710.16 |
||
| replacement | |||||
|
19
|
19
664-45972-00-00 Propeller (3X9-1/8"x12"-F)UR STAINLESS STEEL PROPELL |
664-45972-00-00 |
from US $710.16 |
||
|
20
|
20
6J8-W4591-00-EL Propeller (3X10-5/8X8-1/4-F)DUAL THRUST PROPELLER |
6J8-W4591-00-EL |
US $204.48 |
||
| replacement | |||||
|
20
|
20
6J8-W4591-00-00 Propeller (3X10-5/8"x8-1/4"-F)DUAL THRUST PROPELLER |
6J8-W4591-00-00 |
from US $204.48 |
||
|
21
|
21
6J8-45986-10-96
Deflecteur De Cercle
DE CERCLE |
6J8-45986-10-96 |
— | ||
