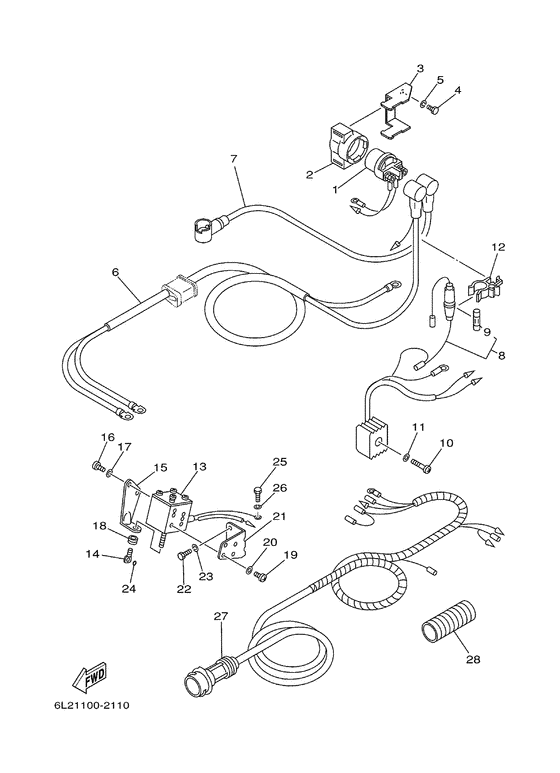

Electrical 2 Diagram Yamaha 20 WOS/L
- Year
- 2007
- Model
- 20D
- Model code
- 6L3
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Finland (150)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $54.56 |
||
|
02
|
02
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
03
|
03
6L2-81945-00-00 Plate, Switch Fitting |
6L2-81945-00-00 |
from US $15.58 |
||
|
04
|
04
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
04
|
04
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
05
|
05
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
06
|
06
6G1-82105-01-00 Battery Cable |
6G1-82105-01-00 |
US $161.65 |
||
| replacement | |||||
|
06
|
06
6E7-82105-12-00 Battery Cable |
6E7-82105-12-00 |
from US $91.22 |
||
|
07
|
07
6G1-82117-00-00 Wire, Lead |
6G1-82117-00-00 |
US $18.56 |
||
|
08
|
08
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
08
|
08
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
08
|
08
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
09
|
09
6G1-82151-00-00 Fuse (10A) |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
09
|
09
1E6-82151-00-00 Fuse (10A) |
1E6-82151-00-00 |
from US $1.66 |
||
|
10
|
10
97880-05025-00 Screw, Pan Head |
97880-05025-00 |
US $1.35 |
||
| replacement | |||||
|
10
|
10
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
11
|
11
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2 |
||
|
13
|
13
6L2-86111-00-00 Coil, Solenoid |
6L2-86111-00-00 |
from US $114.01 |
||
|
14
|
14
682-86117-00-00 Hook, Wire Pull |
682-86117-00-00 |
from US $2.69 |
||
|
15
|
15
6L2-86115-00-00 Holder, Solenoid |
6L2-86115-00-00 |
from US $12.85 |
||
|
16
|
16
97880-05008-00 Screw, Pan Head |
97880-05008-00 |
US $2.55 |
||
| replacements | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
97980-05108-00 Screw, With Washer |
97980-05108-00 |
from US $2.55 |
||
|
17
|
17
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
18
|
18
90480-10155-00 Grommet |
90480-10155-00 |
from US $3.83 |
||
|
19
|
19
97880-04008-00 Screw, Pan Head |
97880-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
20
|
20
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
21
|
21
6L2-86112-00-00 Stay, Solenoid |
6L2-86112-00-00 |
from US $11.05 |
||
|
22
|
22
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
22
|
22
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
24
|
24
93210-03261-00 O-Ring |
93210-03261-00 |
from US $1.66 |
||
|
25
|
25
97095-06012-00 Bolt |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
25
|
25
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
27
|
27
6L2-82590-00-00 Wire Harness Assy |
6L2-82590-00-00 |
US $142.30 |
||
|
28
|
28
6K3-83557-00-00
Tube
|
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
28
|
28
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
