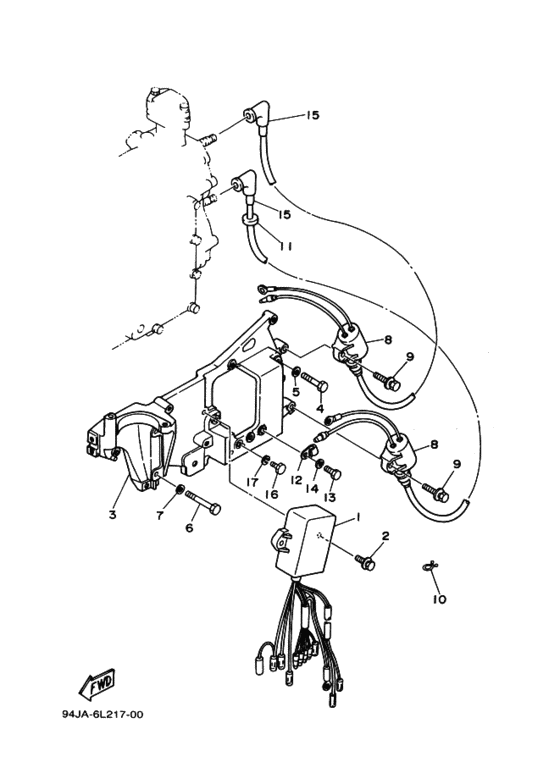

Electrical 1 Diagram Yamaha 20 MHOS/L
- Year
- 1994
- Model
- 20D
- Model code
- 6L3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-85540-20-00 C.d.i. Unit Assembly．．．ＣＤＩユニツトアセンブリ; |
6L2-85540-20-00 |
US $523.78 |
||
| replacement | |||||
|
1
|
1
6L2-85540-23-00 C.d.i. Unit Assy．．．ＣＤＩユニツトアセンブリ; |
6L2-85540-23-00 |
from US $523.78 |
||
|
2
|
2
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
2
|
2
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
2
|
2
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
3
|
3
6L2-85542-02-00 Bracket |
6L2-85542-02-00 |
from US $171.32 |
||
|
4
|
4
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
4
|
4
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
5
|
5
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90101-06M16-00 Bolt |
90101-06M16-00 |
from US $9.78 |
||
|
7
|
7
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
8
|
8
61N-85570-00-00 Ignition Coil Assyイグニツシヨンコイルアセンブリ; |
61N-85570-00-00 |
from US $101.82 |
||
| replacement | |||||
|
8
|
8
61N-85570-10-00 Ignition Coil Assemblyイグニツシヨンコイルアセンブリ; |
61N-85570-10-00 |
from US $76.38 |
||
|
9
|
9
97595-06420-00 Bolt, With Washerボルト，ウイズワツシヤ; |
97595-06420-00 |
from US $1.07 |
||
| replacements | |||||
|
9
|
9
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
9
|
9
97E95-06420-00 ボルト，ウイズワツシヤ; |
97E95-06420-00 |
US $1.49 |
||
|
10
|
10
90464-05M16-00 Clamp |
90464-05M16-00 |
from US $1.84 |
||
|
11
|
11
90480-25161-00 Grommet |
90480-25161-00 |
from US $2.41 |
||
|
12
|
12
90465-06M28-00 Clamp |
90465-06M28-00 |
from US $3.12 |
||
|
13
|
13
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
663-82370-01-00 Plug Cap Assyプラグキヤツプアセンブリ; |
663-82370-01-00 |
from US $7.62 |
||
|
16
|
16
97095-06012-00 Boltボルト; |
97095-06012-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
970-80060-12-00 Boltボルト; |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
