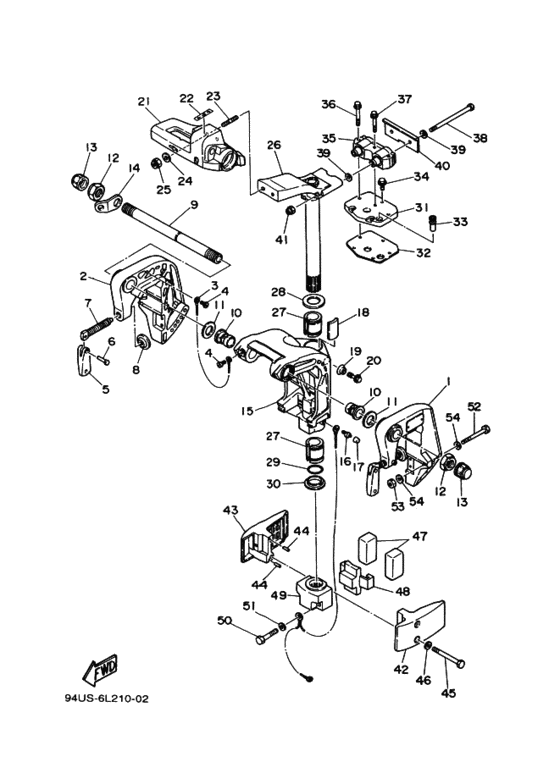

ﾌﾞﾗｹﾂﾄ 1 Diagram Yamaha 20 MHOS/L
- Year
- 1994
- Model
- 20D
- Model code
- 6L3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-43111-02-4D Bracket, Clamp 1ブラケツト，クランプ; |
6L2-43111-02-4D |
US $129.04 |
||
| replacement | |||||
|
1
|
1
6L2-43111-05-8D BRACKET, CLAMP 1ブラケツト，クランプ; |
6L2-43111-05-8D |
from US $129.04 |
||
|
2
|
2
6L2-43112-03-4D Bracket, Clamp 2ブラケツト，クランプ; |
6L2-43112-03-4D |
US $203.10 |
||
| replacement | |||||
|
2
|
2
6L2-43112-06-8D BRACKET, CLAMP 2ブラケツト，クランプ; |
6L2-43112-06-8D |
from US $144.18 |
||
|
3
|
3
6E5-82148-00-00 Wire, Lead 4ワイヤ，リード ４; |
6E5-82148-00-00 |
from US $5.64 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
5
|
5
616-43118-00-4D Handle, Transom Clampハンドル，トランサムクランプ; |
616-43118-00-4D |
US $13.60 |
||
| replacement | |||||
|
5
|
5
999-99028-08-00 Handle, Transom Clampハンドル，トランサムクランプ; |
999-99028-08-00 |
from US $13.60 |
||
|
6
|
6
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
7
|
7
6L2-43116-00-00 Screw, Transom Clampスクリユ，トランサムクランプ; |
6L2-43116-00-00 |
from US $27.77 |
||
|
8
|
8
648-43114-01-00 Pad, Transom Clampパツド，トランサムクランプ; |
648-43114-01-00 |
from US $5.30 |
||
|
9
|
9
6J8-43131-01-00 Bolt, Clamp Bracketボルト，クランプブラケツト; |
6J8-43131-01-00 |
from US $34.72 |
||
|
10
|
10
90386-22M67-00 Bush |
90386-22M67-00 |
from US $2.32 |
||
|
11
|
11
90201-22428-00 Washer, Plateワツシヤ，プレート; |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
11
|
11
90201-22M03-00 Washer, Plateワツシヤ，プレート; |
90201-22M03-00 |
from US $2.66 |
||
|
12
|
12
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
12
|
12
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $23.16 |
||
|
13
|
13
6G5-43145-00-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
13
|
13
6G5-43145-01-00 Cap, Clamp Bracketキヤツプ，クランプブラケツト; |
6G5-43145-01-00 |
from US $6.62 |
||
|
14
|
14
6J8-43113-01-00 Plate, Clamp Bracketプレート，クランプブラケツト; |
6J8-43113-01-00 |
from US $6.52 |
||
|
15
|
15
6L2-43311-03-4D Bracket, Swivel 1ブラケツト，スウイベル; |
6L2-43311-03-4D |
US $564.96 |
||
| replacement | |||||
|
15
|
15
999-99028-87-00 Bracket, Swivel (6L2 4D)ブラケツト，スウイベル; |
999-99028-87-00 |
from US $500.18 |
||
|
16
|
16
93700-06M03-00 Nipple, Greaseニツプル，グリース; |
93700-06M03-00 |
from US $2.66 |
||
|
17
|
17
663-45119-00-00 Cap, Grease Nippleキヤツプ，グリースニツプル; |
663-45119-00-00 |
US $3.68 |
||
|
18
|
18
6H4-42528-00-00 Plate, Frictionプレート，フリクシヨン; |
6H4-42528-00-00 |
from US $13.18 |
||
|
19
|
19
689-43373-01-00 Seal, Damperシール，ダンパ; |
689-43373-01-00 |
US $4.53 |
||
|
20
|
20
90105-06M18-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-06M18-00 |
from US $2.74 |
||
|
21
|
21
6L2-42121-00-EK
Bracket
|
6L2-42121-00-EK |
— | ||
| replacement | |||||
|
21
|
21
6L2-W4212-01-EK
Bracket
|
6L2-W4212-01-EK |
— | ||
|
22
|
22
6E0-44191-11-00 Indicator, Shiftインジケータ，シフト; |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
22
|
22
6X3-44191-00-00 Indicator, Shiftインジケータ，シフト; |
6X3-44191-00-00 |
from US $4.68 |
||
|
23
|
23
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
23
|
23
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.64 |
||
|
24
|
24
929-90106-00-00 Washer, Plateワツシヤ，プレート; |
929-90106-00-00 |
from US $1.07 |
||
|
25
|
25
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
25
|
25
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.42 |
||
|
26
|
26
6L2-42510-00-4D Steering Bracket Assemblyステアリングブラケツトアセンブリ; |
6L2-42510-00-4D |
US $424.20 |
||
| replacement | |||||
|
26
|
26
6L2-42510-01-8D STEERING BRACKET ASSYステアリングブラケツトアセンブリ; |
6L2-42510-01-8D |
from US $372.80 |
||
|
27
|
27
90386-30M75-00 Bush |
90386-30M75-00 |
from US $18.56 |
||
|
28
|
28
90201-30M00-00 Washer, Plateワツシヤ，プレート; |
90201-30M00-00 |
from US $4.64 |
||
|
29
|
29
93210-29375-00 O-Ring |
93210-29375-00 |
from US $1.56 |
||
|
30
|
30
90386-30M60-00 Bush |
90386-30M60-00 |
from US $2.66 |
||
|
31
|
31
6L2-44512-00-4D Cover, Upper Mountカバー; |
6L2-44512-00-4D |
US $30.60 |
||
| replacement | |||||
|
31
|
31
6L2-44512-00-8D COVER, UPPER MOUNTカバー; |
6L2-44512-00-8D |
from US $30.60 |
||
|
32
|
32
6L2-45114-A1-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
6L2-45114-A1-00 |
from US $9.95 |
||
|
33
|
33
6L2-44365-00-00 Damper, Water Seal 1ダンパ，ウオータシール; |
6L2-44365-00-00 |
US $4.68 |
||
|
34
|
34
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
34
|
34
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
34
|
34
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
35
|
35
6L2-44514-00-00 Silent-Bloc, Superieur Lateralマウントダンパ，アツパーサイド; ＵＲ ＳＨＯＲＴ／ＬＯＮＧ |
6L2-44514-00-00 |
US $79.99 |
||
| replacement | |||||
|
35
|
35
6L2-44514-01-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; ＵＲ ＳＨＯＲＴ／ＬＯＮＧ |
6L2-44514-01-00 |
from US $71.69 |
||
|
35
|
35
6L2-44514-20-00 Mount Damper, Upper Sideマウントダンパ，アツパーサイド; ＵＲ ＳＵＰＥＲ ＬＯＮＧ／ＵＬＴＲＡ ＬＯＮＧ |
6L2-44514-20-00 |
US $88.42 |
||
|
36
|
36
97515-06250-00 Bolt, With Washer |
97515-06250-00 |
US $2.41 |
||
| replacements | |||||
|
36
|
36
90119-06M04-00 Bolt, With Washer |
90119-06M04-00 |
from US $1.73 |
||
|
36
|
36
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
37
|
37
97515-06240-00 Bolt, With Washer |
97515-06240-00 |
from US $1.28 |
||
| replacement | |||||
|
37
|
37
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
38
|
38
90101-08M09-00 Bolt |
90101-08M09-00 |
from US $12.18 |
||
|
39
|
39
90201-08M01-00 Washer, Plateワツシヤ，プレート; |
90201-08M01-00 |
from US $1.98 |
||
|
40
|
40
6L2-44526-00-00 Plateプレート; |
6L2-44526-00-00 |
from US $8.22 |
||
|
41
|
41
95780-08300-00 Nut, Nylon (6J8)ナツト，フランジ; |
95780-08300-00 |
from US $6.30 |
||
|
42
|
42
6L2-44551-00-4D Housing, Lower Mount Rubber 1ハウジング，ロワーマウントラバー; |
6L2-44551-00-4D |
US $59.82 |
||
| replacements | |||||
|
42
|
42
6L2-44551-01-4D Housing, Lower Mount Rubber 1ハウジング，ロワーマウントラバー; |
6L2-44551-01-4D |
US $59.82 |
||
|
42
|
42
6L2-44551-01-8D Housing, Lower Mount Rubber 1ハウジング，ロワーマウントラバー; |
6L2-44551-01-8D |
from US $55.78 |
||
|
43
|
43
6L2-44552-00-4D Housing, Lower Mount Rubber 2ハウジング，ロワーマウントラバー; |
6L2-44552-00-4D |
US $59.82 |
||
| replacement | |||||
|
43
|
43
6L2-44552-01-8D HOUSING, LOWER MOUNTハウジング，ロワーマウントラバー; |
6L2-44552-01-8D |
from US $56.50 |
||
|
44
|
44
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
45
|
45
97395-08085-00 Bolt |
97395-08085-00 |
from US $5.76 |
||
| replacement | |||||
|
45
|
45
975-95085-85-00 Bolt, With Washer |
975-95085-85-00 |
from US $5.66 |
||
|
46
|
46
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
47
|
47
6L2-44555-00-00 Mount Damper, Lower Sideマウントダンパ，ロワーサイド; |
6L2-44555-00-00 |
from US $21.54 |
||
|
48
|
48
6L2-44557-00-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ ＳＨＯＲＴ／ＬＯＮＧ |
6L2-44557-00-00 |
from US $18.43 |
||
|
48
|
48
6L2-44557-20-00 Mount Damper, Lower Frontマウントダンパ，ロワーフロント; ＵＲ ＳＵＰＥＲ ＬＯＮＧ／ＵＬＴＲＡ ＬＯＮＧ |
6L2-44557-20-00 |
US $11.90 |
||
|
49
|
49
6L2-44553-00-4D Cover, Lower Mountカバー，ロワーマウント; |
6L2-44553-00-4D |
US $59.82 |
||
| replacement | |||||
|
49
|
49
6L2-44553-01-8D COVER, LOWER MOUNTカバー，ロワーマウント; |
6L2-44553-01-8D |
from US $59.82 |
||
|
50
|
50
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
50
|
50
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
50
|
50
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
51
|
51
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
|
52
|
52
97395-08070-00 Bolt |
97395-08070-00 |
US $9.78 |
||
| replacement | |||||
|
52
|
52
97095-08070-00 Bolt |
97095-08070-00 |
from US $9.78 |
||
|
53
|
53
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
53
|
53
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
53
|
53
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
54
|
54
92990-08600-00 Washer, Plateワツシヤ，プレート; |
92990-08600-00 |
from US $1.34 |
||
