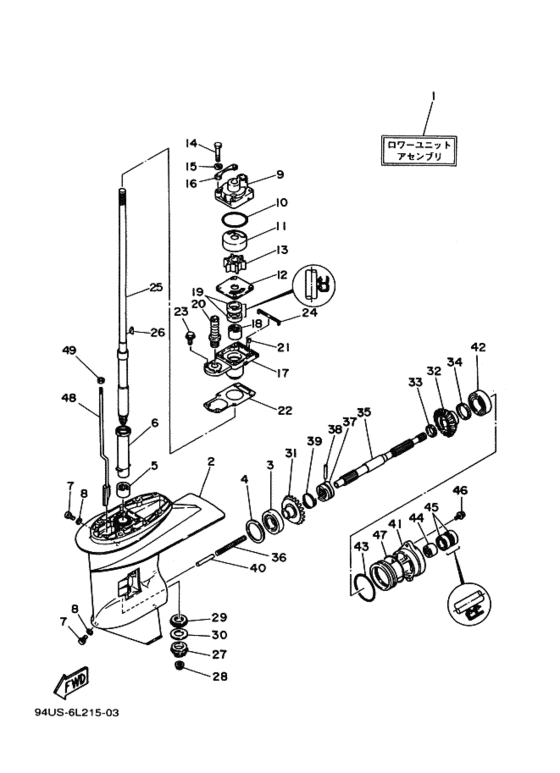

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 1 Diagram Yamaha 20 MHOS/L
- Year
- 1994
- Model
- 20D
- Model code
- 6L3
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-45300-02-4D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＳＨＯＲＴ ＊１ |
6L2-45300-02-4D |
US $2,112 |
||
| replacements | |||||
|
1
|
1
6L2-45300-04-8D LOWER UNIT ASSY (S)ロワーユニツトアセンブリ; ＵＲ ＳＨＯＲＴ ＊１ |
6L2-45300-04-8D |
US $2,112 |
||
|
1
|
1
6L2-45300-05-8D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＳＨＯＲＴ ＊１ |
6L2-45300-05-8D |
US $1,883.17 |
||
|
1
|
1
6L2-45300-12-4D Lower Unit Assyロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6L2-45300-12-4D |
US $2,112 |
||
| replacements | |||||
|
1
|
1
6L2-45300-14-8D LOWER UNIT ASSY (L)ロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6L2-45300-14-8D |
from US $1,578.54 |
||
|
1
|
1
6L2-45300-15-8D LOWER UNIT ASSYロワーユニツトアセンブリ; ＵＲ ＬＯＮＧ ＊１ |
6L2-45300-15-8D |
from US $1,589.19 |
||
|
1
|
1
6L2-45300-22-4D
Lower Unit Assy
ロワーユニツトアセンブリ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ ＊１ |
6L2-45300-22-4D |
— | ||
|
1
|
1
6L2-45300-32-4D
Lower Unit Assy
ロワーユニツトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ ＊１ |
6L2-45300-32-4D |
— | ||
|
2
|
2
6L2-45311-01-4D Casing, Lowerケーシング，ロワー; |
6L2-45311-01-4D |
US $663.96 |
||
| replacement | |||||
|
2
|
2
6L2-45311-02-8D CASING, LOWERケーシング，ロワー; |
6L2-45311-02-8D |
from US $357.01 |
||
|
3
|
3
933-32000-05-00 Bearing |
933-32000-05-00 |
from US $22.53 |
||
|
4
|
4
6L2-45567-00-10 Shim (T:1.0Mm)．シム ; Ｔ：１０ＭＭ; ＵＲ |
6L2-45567-00-10 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-00-00 Shim (T:1.0Mm)．シム ; Ｔ：１０ＭＭ; ＵＲ |
6L2-45567-00-00 |
from US $7.08 |
||
|
4
|
4
6L2-45567-00-11 Shim (T:1.1Mm)．シム ; Ｔ：１１ＭＭ; ＵＲ |
6L2-45567-00-11 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-10-00 Shim (T:1.1Mm)．シム ; Ｔ：１１ＭＭ; ＵＲ |
6L2-45567-10-00 |
from US $7.08 |
||
|
4
|
4
6L2-45567-00-12 Shim (T:1.2Mm)．シム ; Ｔ：１２ＭＭ; ＵＲ |
6L2-45567-00-12 |
US $7.08 |
||
| replacements | |||||
|
4
|
4
6L2-45567-20-00 Shim (T:1.2Mm)．シム ; Ｔ：１２ＭＭ; ＵＲ |
6L2-45567-20-00 |
from US $7.08 |
||
|
4
|
4
999-99999-99-00
Not Available
．シム ; Ｔ：１２ＭＭ; ＵＲ |
999-99999-99-00 |
— | ||
|
4
|
4
6L2-45567-00-13 Shim (T:1.3Mm)．シム ; Ｔ：１３ＭＭ; ＵＲ |
6L2-45567-00-13 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-30-00 Shim (T:1.3Mm)．シム ; Ｔ：１３ＭＭ; ＵＲ |
6L2-45567-30-00 |
from US $6.30 |
||
|
4
|
4
6L2-45567-00-14 Shim (T:1.4Mm)．シム ; Ｔ：１４ＭＭ; ＵＲ |
6L2-45567-00-14 |
US $7.08 |
||
| replacement | |||||
|
4
|
4
6L2-45567-40-00 Shim (T:1.4Mm)．シム ; Ｔ：１４ＭＭ; ＵＲ |
6L2-45567-40-00 |
from US $7.08 |
||
|
5
|
5
93315-220V9-00 Bearing |
93315-220V9-00 |
from US $45.18 |
||
|
6
|
6
6L2-45536-00-00 Sleeve, Drive Shaftスリーブ，ドライブシヤフト; |
6L2-45536-00-00 |
from US $19.13 |
||
|
7
|
7
903-4008M-04-00
Plug, Straight Screw
|
903-4008M-04-00 |
— | ||
| replacement | |||||
|
7
|
7
903-40080-02-00 Plug, Straight Screw |
903-40080-02-00 |
from US $3.12 |
||
|
8
|
8
904-30080-20-00 Gasket |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
8
|
8
90430-08003-00 Gasket |
90430-08003-00 |
from US $1.28 |
||
|
9
|
9
6L2-44311-00-00 Housing, Water Pumpハウジング，ウオータポンプ; |
6L2-44311-00-00 |
US $37.86 |
||
| replacement | |||||
|
9
|
9
6L2-44311-01-00 Housing, Water Pumpハウジング，ウオータポンプ; |
6L2-44311-01-00 |
from US $13.90 |
||
|
10
|
10
93210-45161-00 O-Ring |
93210-45161-00 |
from US $2.55 |
||
|
11
|
11
6L2-44322-00-00 Insert, Cartridgeインサート，カートリツジ; |
6L2-44322-00-00 |
from US $7.62 |
||
|
12
|
12
6L2-44323-00-00 Outer Plate, Cartridgeアウタプレート，カートリツジ; |
6L2-44323-00-00 |
from US $3.98 |
||
|
13
|
13
6L2-44352-00-00 Impellerインペラ; |
6L2-44352-00-00 |
from US $23.52 |
||
|
14
|
14
97095-06040-00 Boltボルト; |
97095-06040-00 |
from US $1.28 |
||
|
15
|
15
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
6L2-44328-00-00 Plateプレート; |
6L2-44328-00-00 |
from US $3.97 |
||
|
17
|
17
6L2-45331-00-5B Housing, Bearingハウジング，ベアリング; |
6L2-45331-00-5B |
US $129.18 |
||
| replacement | |||||
|
17
|
17
6L2-45331-00-CA Housing, Bearingハウジング，ベアリング; |
6L2-45331-00-CA |
from US $81 |
||
|
18
|
18
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.63 |
||
|
19
|
19
93101-20048-00 Oil Sealオイルシール; |
93101-20048-00 |
from US $5.96 |
||
| replacement | |||||
|
19
|
19
93102-20484-00 Oil Sealオイルシール; |
93102-20484-00 |
from US $3.64 |
||
|
20
|
20
6L2-44147-00-00 Boot, Shift Rodブーツ，シフトロツド; |
6L2-44147-00-00 |
from US $3.98 |
||
|
21
|
21
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.66 |
||
|
22
|
22
6L2-45315-A0-00 Packing, Lower Casingパツキング，ロワーケーシング; |
6L2-45315-A0-00 |
from US $2 |
||
|
23
|
23
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
23
|
23
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
23
|
23
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
24
|
24
6L2-45375-00-00 Damper, Sealダンパ，シール; |
6L2-45375-00-00 |
from US $6.38 |
||
|
25
|
25
6L2-45510-00-00 Drive Shaft Assyドライブシヤフトアセンブリ; ＵＲ ＳＨＯＲＴ |
6L2-45510-00-00 |
from US $383.63 |
||
|
25
|
25
6L2-45510-10-00 Drive Shaft Assyドライブシヤフトアセンブリ; ＵＲ ＬＯＮＧ |
6L2-45510-10-00 |
from US $394.58 |
||
|
25
|
25
6L2-45510-20-00
Drive Shaft Assy
ドライブシヤフトアセンブリ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ |
6L2-45510-20-00 |
— | ||
|
25
|
25
6L2-45510-30-00
Drive Shaft Assy
ドライブシヤフトアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
6L2-45510-30-00 |
— | ||
|
26
|
26
90280-03024-00 Key, Woodruffキー，ウツドラフ; |
90280-03024-00 |
from US $5.30 |
||
|
27
|
27
6L2-45551-01-00 Pinion (13T) |
6L2-45551-01-00 |
from US $73.92 |
||
|
28
|
28
90179-10M14-00 Nut |
90179-10M14-00 |
from US $9.35 |
||
|
29
|
29
93341-320U0-00 Bearingベアリング，スラスト; |
93341-320U0-00 |
from US $25.80 |
||
|
30
|
30
6L2-45587-00-15 Shim (T:1.5Mm)．シム ; Ｔ：１５ＭＭ; ＵＲ |
6L2-45587-00-15 |
US $10.20 |
||
| replacement | |||||
|
30
|
30
6L2-45587-00-00 Shim (T:1.5Mm)．シム ; Ｔ：１５ＭＭ; ＵＲ |
6L2-45587-00-00 |
from US $10.20 |
||
|
30
|
30
6L2-45587-00-16 Shim (T:1.6Mm)．シム ; Ｔ：１６ＭＭ; ＵＲ |
6L2-45587-00-16 |
US $9.21 |
||
| replacement | |||||
|
30
|
30
6L2-45587-10-00 Shim (T:1.6Mm)．シム ; Ｔ：１６ＭＭ; ＵＲ |
6L2-45587-10-00 |
from US $9.21 |
||
|
31
|
31
6L2-45560-00-00 Gearギヤ; |
6L2-45560-00-00 |
US $212.77 |
||
| replacement | |||||
|
31
|
31
6L2-45560-10-00 Gear 1 (27T)ギヤ; |
6L2-45560-10-00 |
from US $175.57 |
||
|
32
|
32
6L2-45571-00-00 Gear 2 (27T)ギヤ; |
6L2-45571-00-00 |
from US $178.09 |
||
|
33
|
33
90201-20417-00 Washer, Plateワツシヤ，プレート; |
90201-20417-00 |
from US $4.64 |
||
|
34
|
34
6L2-45577-00-10 Shim (T:1.0Mm)．シム ; Ｔ：１０ＭＭ; ＵＲ |
6L2-45577-00-10 |
US $9.21 |
||
| replacement | |||||
|
34
|
34
6L2-45577-00-00 Shim (T:1.0Mm)．シム ; Ｔ：１０ＭＭ; ＵＲ |
6L2-45577-00-00 |
from US $9.21 |
||
|
34
|
34
6L2-45577-00-11 Shim (T:1.1Mm)．シム ; Ｔ：１１ＭＭ; ＵＲ |
6L2-45577-00-11 |
US $9.21 |
||
| replacement | |||||
|
34
|
34
6L2-45577-10-00 Shim (T:1.1Mm)．シム ; Ｔ：１１ＭＭ; ＵＲ |
6L2-45577-10-00 |
from US $9.21 |
||
|
34
|
34
6L2-45577-00-12 Shim (T:1.2Mm)．シム ; Ｔ：１２ＭＭ; ＵＲ |
6L2-45577-00-12 |
US $9.21 |
||
| replacement | |||||
|
34
|
34
6L2-45577-20-00 Shim (T:1.2Mm)．シム ; Ｔ：１２ＭＭ; ＵＲ |
6L2-45577-20-00 |
from US $9.21 |
||
|
34
|
34
6L2-45577-00-13 Shim (T:1.3Mm)．シム ; Ｔ：１３ＭＭ; ＵＲ |
6L2-45577-00-13 |
US $9.21 |
||
| replacement | |||||
|
34
|
34
6L2-45577-30-00 Shim (T:1.3Mm)．シム ; Ｔ：１３ＭＭ; ＵＲ |
6L2-45577-30-00 |
from US $4.96 |
||
|
35
|
35
6L2-45611-00-00 Shaft, Propellerシヤフト，プロペラ; |
6L2-45611-00-00 |
from US $343.75 |
||
|
36
|
36
905-01100-65-00 Spring, Compression |
905-01100-65-00 |
from US $2.32 |
||
|
37
|
37
6L2-45631-00-00 Clutch, Dogクラツチ，ドツグ; |
6L2-45631-00-00 |
from US $85.66 |
||
|
38
|
38
902-50050-10-00 Pin, Straight |
902-50050-10-00 |
from US $2 |
||
|
39
|
39
648-45633-00-00
Ring, Cross Pin
リング，クロスピン; |
648-45633-00-00 |
— | ||
| replacement | |||||
|
39
|
39
648-45633-11-00 RING, CROSS PINリング，クロスピン; |
648-45633-11-00 |
from US $2.41 |
||
|
40
|
40
648-45635-00-00 Plunger, Shiftプランジヤ，シフト; |
648-45635-00-00 |
from US $3.64 |
||
|
41
|
41
6L2-45361-02-4D Cap, Lower Casingキヤツプ，ロワーケーシング; |
6L2-45361-02-4D |
US $98.37 |
||
| replacement | |||||
|
41
|
41
6L2-45361-03-8D Cap, Lower Casingキヤツプ，ロワーケーシング; |
6L2-45361-03-8D |
from US $98.37 |
||
|
42
|
42
933-06006-12-00 Bearing |
933-06006-12-00 |
from US $23.09 |
||
|
43
|
43
93210-60MA3-00 O-Ring |
93210-60MA3-00 |
from US $6.09 |
||
|
44
|
44
933-15220-04-00 Bearing |
933-15220-04-00 |
from US $10.63 |
||
|
45
|
45
931-0120M-07-00 Oil Sealオイルシール; |
931-0120M-07-00 |
from US $4.64 |
||
|
46
|
46
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
46
|
46
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.56 |
||
|
46
|
46
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
47
|
47
93210-60M99-00 O-RingＯ−リング; |
93210-60M99-00 |
from US $4.39 |
||
|
48
|
48
6L2-44150-00-00 Shift Cam Assyシフトカムアセンブリ; ＵＲ ＳＨＯＲＴ |
6L2-44150-00-00 |
from US $108.43 |
||
|
48
|
48
6L2-44150-10-00 Shift Cam Assyシフトカムアセンブリ; ＵＲ ＬＯＮＧ |
6L2-44150-10-00 |
from US $103.37 |
||
|
48
|
48
6L2-44150-20-00 Shift Cam Assyシフトカムアセンブリ; ＵＲ ＳＵＰＥＲ ＬＯＮＧ |
6L2-44150-20-00 |
US $79.18 |
||
|
48
|
48
6L2-44150-30-00
Shift Cam Assy
シフトカムアセンブリ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
6L2-44150-30-00 |
— | ||
|
49
|
49
956-01062-00-00
Nut, U-Flange
ナツト，セルフロツキング; |
956-01062-00-00 |
— | ||
| replacement | |||||
|
49
|
49
95604-06200-00 Nut, U Flangeナツト，セルフロツキング; |
95604-06200-00 |
from US $1.56 |
||
