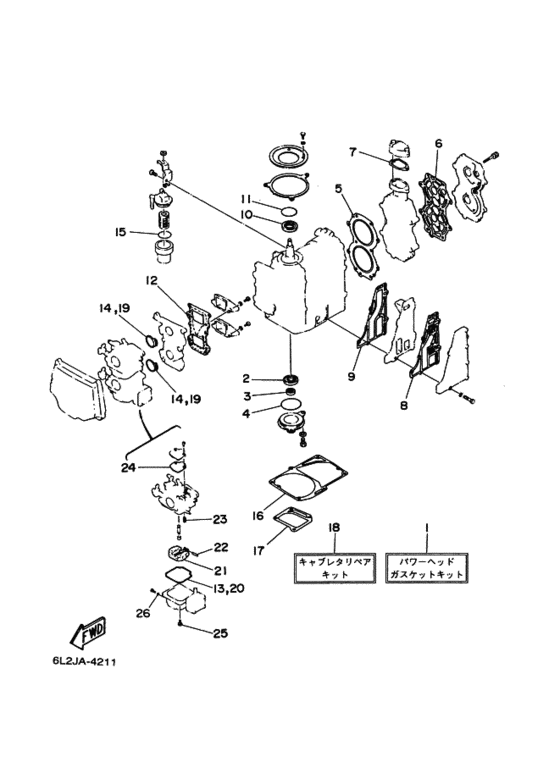

ﾘﾍﾟｱｷﾂﾄ 1 Diagram Yamaha 20 MHOS/L
- Year
- 1997
- Model
- 20D
- Model code
- 6L3
- Year
- 1997
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-W0001-03-00 Power Head Gasket Kitパワーヘツドガスケツトキツト; |
6L2-W0001-03-00 |
from US $176.47 |
||
|
2
|
2
93102-25142-00 Oil Seal．オイルシール; |
93102-25142-00 |
from US $13.56 |
||
|
3
|
3
93101-13M37-00 Oil Seal．オイルシール; |
93101-13M37-00 |
from US $4.96 |
||
|
4
|
4
93210-56M80-00 O-Ring．Ｏ−リング; |
93210-56M80-00 |
from US $3.54 |
||
|
5
|
5
6L2-11181-A1-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6L2-11181-A1-00 |
US $58.03 |
||
| replacement | |||||
|
5
|
5
6L2-11181-A3-00 Gasket, Cylinder Head 1．ガスケツト，シリンダヘツド １; |
6L2-11181-A3-00 |
from US $34.06 |
||
|
6
|
6
6L2-11193-A1-00 Gasket, Head Cover 1．ガスケツト，ヘツドカバー １; |
6L2-11193-A1-00 |
from US $15.80 |
||
|
7
|
7
61A-12414-A0-00 Gasket, Cover．ガスケツト，カバー; |
61A-12414-A0-00 |
from US $3.97 |
||
|
8
|
8
6L2-41114-A1-00 Gasket, Exhaust Outer Cover．ガスケツト，エキゾーストアウタカバー; |
6L2-41114-A1-00 |
from US $9.95 |
||
|
9
|
9
6L2-41112-A1-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾーストインナカバー; |
6L2-41112-A1-00 |
US $18.84 |
||
| replacement | |||||
|
9
|
9
6L2-41112-A3-00 Gasket, Exhaust Inner Cover．ガスケツト，エキゾーストインナカバー; |
6L2-41112-A3-00 |
from US $18.84 |
||
|
10
|
10
93102-26M27-00 Oil Seal．オイルシール; |
93102-26M27-00 |
from US $10.63 |
||
|
11
|
11
93210-42159-00 O-Ring．Ｏ−リング; |
93210-42159-00 |
from US $2.32 |
||
|
12
|
12
6L2-13621-00-00 Gasket, Valve Seat．ガスケツト，バルブシート; |
6L2-13621-00-00 |
from US $18.14 |
||
|
13
|
13
6L2-14384-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
6L2-14384-00-00 |
US $6.38 |
||
| replacement | |||||
|
13
|
13
6L2-14384-01-00 GASKET FLOAT CHAMBER．ガスケツト，フロートチヤンバ; |
6L2-14384-01-00 |
from US $6.38 |
||
|
14
|
14
6L2-14198-00-00 Gasket．ガスケツト; |
6L2-14198-00-00 |
from US $3.68 |
||
|
15
|
15
93210-32738-00 O-Ring．Ｏ−リング; |
93210-32738-00 |
from US $1.34 |
||
|
16
|
16
6L2-45113-A1-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6L2-45113-A1-00 |
US $27.20 |
||
| replacement | |||||
|
16
|
16
6L2-45113-A2-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6L2-45113-A2-00 |
from US $24.50 |
||
|
17
|
17
6L2-41133-A1-00 Gasket, Exhaust Manifold 1．ガスケツト，エキゾーストマニホールド １; |
6L2-41133-A1-00 |
US $16.72 |
||
| replacement | |||||
|
17
|
17
6L2-41133-A3-00 Gasket, Exhaust Manifold 1．ガスケツト，エキゾーストマニホールド １; |
6L2-41133-A3-00 |
from US $16.72 |
||
|
18
|
18
6L2-W0093-00-00 Carburetor Repair Kitキヤブレタリペキット; |
6L2-W0093-00-00 |
from US $124.24 |
||
|
19
|
19
6L2-14198-00-00 Gasket．ガスケツト; |
6L2-14198-00-00 |
from US $3.68 |
||
|
20
|
20
6L2-14384-00-00 Gasket, Float Chamber．ガスケツト，フロートチヤンバ; |
6L2-14384-00-00 |
US $6.38 |
||
| replacement | |||||
|
20
|
20
6L2-14384-01-00 GASKET FLOAT CHAMBER．ガスケツト，フロートチヤンバ; |
6L2-14384-01-00 |
from US $6.38 |
||
|
21
|
21
6L2-14385-00-00 Float．フロート; |
6L2-14385-00-00 |
from US $23.38 |
||
|
22
|
22
6E5-14386-01-00 Pin, Float．ピン，フロート; |
6E5-14386-01-00 |
from US $2.98 |
||
|
23
|
23
6L2-14392-00-00 Valve．バルブ，ニードル; |
6L2-14392-00-00 |
from US $17.28 |
||
|
24
|
24
6L2-14399-00-00 Gasket．ガスケツト; |
6L2-14399-00-00 |
US $5.67 |
||
|
25
|
25
97980-04112-00 Screw, With Washer．スクリユ，ウイズワツシヤ; |
97980-04112-00 |
from US $2.13 |
||
| replacement | |||||
|
25
|
25
98580-04012-00 Screw, Pan Head (686)．スクリユ，ウイズワツシヤ; |
98580-04012-00 |
from US $1.28 |
||
|
26
|
26
6L2-14398-00-00 Gasket．ガスケツト; |
6L2-14398-00-00 |
from US $1.98 |
||
