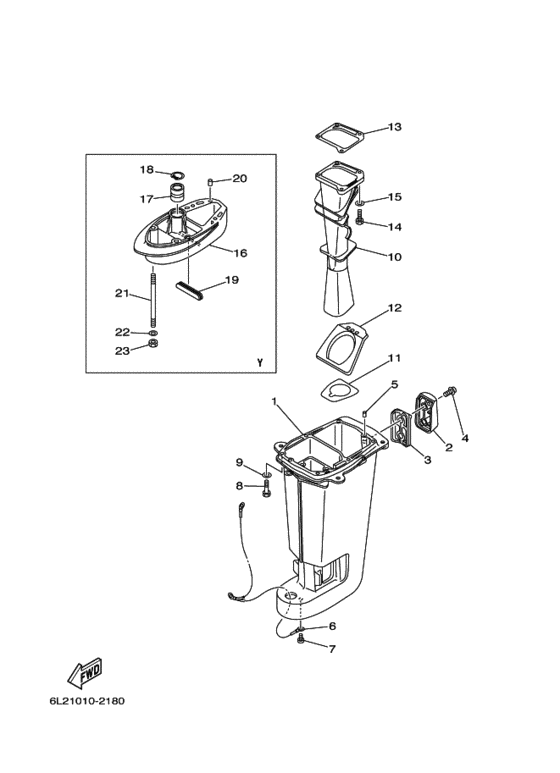

ｱﾂﾊﾟｰｹｰｼﾝｸﾞ Diagram Yamaha 20 MHOS/L
- Year
- 2003
- Model
- 20D
- Model code
- 6L3
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 20
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-45111-02-4D Casing, Upperケーシング，アツパー; ＵＲ Ｓ |
6L2-45111-02-4D |
US $689.04 |
||
| replacement | |||||
|
1
|
1
6L2-45111-03-8D CASING, UPPERケーシング，アツパー; ＵＲ Ｓ |
6L2-45111-03-8D |
from US $580.16 |
||
|
1
|
1
6L2-45111-12-4D Casing, Upperケーシング，アツパー; ＵＲ Ｌ／Ｙ |
6L2-45111-12-4D |
US $689.04 |
||
| replacements | |||||
|
1
|
1
6L2-45111-13-4D Casing, Upperケーシング，アツパー; ＵＲ Ｌ／Ｙ |
6L2-45111-13-4D |
US $689.04 |
||
|
1
|
1
6L2-45111-13-8D Casing, Upperケーシング，アツパー; ＵＲ Ｌ／Ｙ |
6L2-45111-13-8D |
from US $634.03 |
||
|
2
|
2
6L2-45151-01-4D Cover, Upper Casingカバー，アツパーケーシング; |
6L2-45151-01-4D |
from US $33.21 |
||
|
3
|
3
6L2-45115-00-00 Gasket, Upper Casingガスケツト，アツパーケーシング; |
6L2-45115-00-00 |
from US $19.27 |
||
|
4
|
4
90159-06M11-00 Screw, With Washer |
90159-06M11-00 |
from US $1.98 |
||
|
5
|
5
93604-12M07-00 Pin, Dowelピン，ダウエル; |
93604-12M07-00 |
US $1.84 |
||
| replacement | |||||
|
5
|
5
93604-10M03-00 Pin, Dowelピン，ダウエル; |
93604-10M03-00 |
from US $1.66 |
||
|
6
|
6
6L2-82127-00-00 Wire, Lead 2ワイヤ，リード ２; |
6L2-82127-00-00 |
from US $28.15 |
||
|
7
|
7
90157-06M06-00 Screw, Pan Head |
90157-06M06-00 |
from US $1.98 |
||
|
8
|
8
97075-08030-00 Boltボルト; |
97075-08030-00 |
US $2.69 |
||
| replacement | |||||
|
8
|
8
97080-08030-00 Boltボルト; |
97080-08030-00 |
from US $2.69 |
||
|
9
|
9
929-95086-00-00
Washer, Plate
|
929-95086-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
10
|
10
6L2-41131-00-5B Pipe D'echappementマニホールド，エキゾースト １; ＵＲ ２５Ｎ |
6L2-41131-00-5B |
US $157.50 |
||
| replacement | |||||
|
10
|
10
6L2-41131-00-CA Manifold, Ext. 1マニホールド，エキゾースト １; ＵＲ ２５Ｎ |
6L2-41131-00-CA |
from US $88.18 |
||
|
10
|
10
6L3-41131-00-5B Manifold, Ext. 1マニホールド，エキゾースト １; ＵＲ ２０Ｄ |
6L3-41131-00-5B |
US $157.50 |
||
| replacement | |||||
|
10
|
10
6L3-41131-00-CA Manifold, Ext. 1マニホールド，エキゾースト １; ＵＲ ２０Ｄ |
6L3-41131-00-CA |
from US $107.93 |
||
|
11
|
11
6L2-41134-00-00 Gasket, Exhaust Manifoldガスケツト，エキゾーストマニホールド; |
6L2-41134-00-00 |
US $16.72 |
||
|
12
|
12
6L2-45123-01-00 Gasket, Mufflerガスケツト，マフラ; |
6L2-45123-01-00 |
from US $24.65 |
||
|
13
|
13
6L2-41133-A1-00 Gasket, Exhaust Manifold 1ガスケツト，エキゾーストマニホールド １; |
6L2-41133-A1-00 |
US $16.72 |
||
| replacement | |||||
|
13
|
13
6L2-41133-A3-00 Gasket, Exhaust Manifold 1ガスケツト，エキゾーストマニホールド １; |
6L2-41133-A3-00 |
from US $16.72 |
||
|
14
|
14
97095-06020-00 Boltボルト; |
97095-06020-00 |
US $1.56 |
||
| replacement | |||||
|
14
|
14
970-80060-20-00 Boltボルト; |
970-80060-20-00 |
from US $1.56 |
||
|
15
|
15
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
16
|
16
6L2-45211-20-4D
Extension
Ｙ |
6L2-45211-20-4D |
— | ||
|
17
|
17
6L2-45318-00-00 Bushing, Drive Shaftブツシング，ドライブシヤフト; Ｙ |
6L2-45318-00-00 |
from US $40.34 |
||
|
18
|
18
93420-30042-00 Circlipサークリツプ; Ｙ |
93420-30042-00 |
from US $2.29 |
||
|
19
|
19
6L2-45375-10-00 Damper, Sealダンパ，シール; Ｙ |
6L2-45375-10-00 |
US $4.84 |
||
|
20
|
20
93604-12M07-00 Pin, Dowelピン，ダウエル; Ｙ |
93604-12M07-00 |
US $1.84 |
||
| replacement | |||||
|
20
|
20
93604-10M03-00 Pin, Dowelピン，ダウエル; Ｙ |
93604-10M03-00 |
from US $1.66 |
||
|
21
|
21
90116-10M34-00 Bolt, StudＹ |
90116-10M34-00 |
US $17.50 |
||
|
22
|
22
92995-10600-00 Washer, PlateＹ |
92995-10600-00 |
US $0.90 |
||
| replacement | |||||
|
22
|
22
929-90106-00-00 Washer, PlateＹ |
929-90106-00-00 |
from US $1.07 |
||
|
23
|
23
90179-10M03-00 NutＹ |
90179-10M03-00 |
US $10.48 |
||
