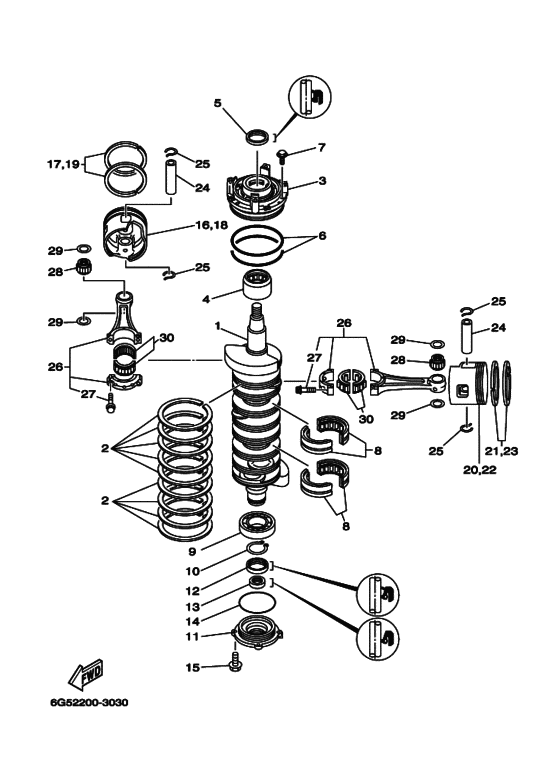

Crankshaft & Piston Diagram Yamaha 200 ETL/XL
- Year
- 2003
- Model
- 200A
- Model code
- 60H
- Year
- 2003
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G5-11411-02-00 Crankshaft |
6G5-11411-02-00 |
from US $2,436.74 |
||
|
2
|
2
6E5-11447-00-00 Seal, Crankシール，クランク; |
6E5-11447-00-00 |
from US $14.48 |
||
|
3
|
3
6E5-15163-00-1S Housing, Bearing 1 |
6E5-15163-00-1S |
from US $114.26 |
||
|
4
|
4
93311-940U3-00 Bearing |
93311-940U3-00 |
from US $99.20 |
||
|
5
|
5
931-0240M-14-00
Oil Seal
オイルシール; |
931-0240M-14-00 |
— | ||
| replacement | |||||
|
5
|
5
93102-40M38-00 Oil Sealオイルシール; |
93102-40M38-00 |
from US $23.02 |
||
|
6
|
6
93211-04001-00 O-Ring |
93211-04001-00 |
from US $6.48 |
||
|
7
|
7
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
8
|
8
93310-954U1-00 Bearing |
93310-954U1-00 |
from US $198.94 |
||
|
9
|
9
93306-20802-00 Bearing |
93306-20802-00 |
from US $58.24 |
||
|
10
|
10
934-1040M-03-00
Circlip
サークリツプ; |
934-1040M-03-00 |
— | ||
| replacement | |||||
|
10
|
10
99009-40400-00 Circlipサークリツプ; |
99009-40400-00 |
from US $3.33 |
||
|
11
|
11
6G5-15359-00-94 Housing, Oil Sealハウジング，オイルシール; |
6G5-15359-00-94 |
from US $90.08 |
||
|
12
|
12
93102-35M61-00 Oil Sealオイルシール; |
93102-35M61-00 |
from US $30.30 |
||
|
13
|
13
93101-22M15-00 Oil Sealオイルシール; |
93101-22M15-00 |
from US $6.40 |
||
|
14
|
14
93210-74M35-00 O-RingＯ−リング; |
93210-74M35-00 |
from US $7.08 |
||
|
15
|
15
90119-06MA2-00 Bolt, With Washer |
90119-06MA2-00 |
from US $2.22 |
||
|
16
|
16
64D-11631-02-90 Piston (Std)ＳＴＤ; ＃３，５ |
64D-11631-02-90 |
from US $90.22 |
||
|
16
|
16
64D-11635-02-00 Piston (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11635-02-00 |
from US $90.90 |
||
|
16
|
16
64D-11636-02-00 Piston (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11636-02-00 |
from US $88.88 |
||
|
17
|
17
64D-11603-01-00
Piston Ring Set (Std)
ピストンリングセツト ; ＳＴＤ; ＃３，５ |
64D-11603-01-00 |
— | ||
| replacement | |||||
|
17
|
17
64D-11603-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ; ＃３，５ |
64D-11603-02-00 |
from US $67.66 |
||
|
17
|
17
64D-11604-01-00
Piston Ring Set (0.25Mm O/s)
ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11604-01-00 |
— | ||
| replacement | |||||
|
17
|
17
64D-11604-02-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11604-02-00 |
from US $58.86 |
||
|
17
|
17
64D-11605-01-00
Piston Ring Set (0.50Mm O/s)
ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11605-01-00 |
— | ||
| replacement | |||||
|
17
|
17
64D-11605-02-00 Piston Ring Set (0.50Mm O/s)ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃３，５ |
64D-11605-02-00 |
from US $67.34 |
||
|
18
|
18
64D-11631-22-90 Piston (Std)ＳＴＤ; ＃１ |
64D-11631-22-90 |
US $116.61 |
||
|
18
|
18
64D-11635-22-00 Piston (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11635-22-00 |
US $119.92 |
||
|
18
|
18
64D-11636-22-00 Piston (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11636-22-00 |
US $116.61 |
||
|
19
|
19
64D-11603-01-00
Piston Ring Set (Std)
ピストンリングセツト ; ＳＴＤ; ＃１ |
64D-11603-01-00 |
— | ||
| replacement | |||||
|
19
|
19
64D-11603-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ; ＃１ |
64D-11603-02-00 |
from US $67.66 |
||
|
19
|
19
64D-11604-01-00
Piston Ring Set (0.25Mm O/s)
ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11604-01-00 |
— | ||
| replacement | |||||
|
19
|
19
64D-11604-02-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11604-02-00 |
from US $58.86 |
||
|
19
|
19
64D-11605-01-00
Piston Ring Set (0.50Mm O/s)
ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11605-01-00 |
— | ||
| replacement | |||||
|
19
|
19
64D-11605-02-00 Piston Ring Set (0.50Mm O/s)ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃１ |
64D-11605-02-00 |
from US $67.34 |
||
|
20
|
20
64D-11642-02-90 Piston 2 (Std)ＳＴＤ; ＃４，６ |
64D-11642-02-90 |
from US $89.22 |
||
|
20
|
20
64D-11645-02-00 Piston 2 (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11645-02-00 |
from US $89.54 |
||
|
20
|
20
64D-11646-02-00 Piston 2 (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11646-02-00 |
from US $90.22 |
||
|
21
|
21
64D-11603-01-00
Piston Ring Set (Std)
ピストンリングセツト ; ＳＴＤ; ＃４，６ |
64D-11603-01-00 |
— | ||
| replacement | |||||
|
21
|
21
64D-11603-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ; ＃４，６ |
64D-11603-02-00 |
from US $67.66 |
||
|
21
|
21
64D-11604-01-00
Piston Ring Set (0.25Mm O/s)
ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11604-01-00 |
— | ||
| replacement | |||||
|
21
|
21
64D-11604-02-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11604-02-00 |
from US $58.86 |
||
|
21
|
21
64D-11605-01-00
Piston Ring Set (0.50Mm O/s)
ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11605-01-00 |
— | ||
| replacement | |||||
|
21
|
21
64D-11605-02-00 Piston Ring Set (0.50Mm O/s)ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃４，６ |
64D-11605-02-00 |
from US $67.34 |
||
|
22
|
22
64D-11642-22-90 Piston 2 (Std)ＳＴＤ; ＃２ |
64D-11642-22-90 |
US $116.61 |
||
|
22
|
22
64D-11645-22-00 Piston 2 (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11645-22-00 |
from US $119.92 |
||
|
22
|
22
64D-11646-22-00 Piston 2 (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11646-22-00 |
US $116.61 |
||
|
23
|
23
64D-11603-01-00
Piston Ring Set (Std)
ピストンリングセツト ; ＳＴＤ; ＃２ |
64D-11603-01-00 |
— | ||
| replacement | |||||
|
23
|
23
64D-11603-02-00 Piston Ring Set (Std)ピストンリングセツト ; ＳＴＤ; ＃２ |
64D-11603-02-00 |
from US $67.66 |
||
|
23
|
23
64D-11604-01-00
Piston Ring Set (0.25Mm O/s)
ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11604-01-00 |
— | ||
| replacement | |||||
|
23
|
23
64D-11604-02-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11604-02-00 |
from US $58.86 |
||
|
23
|
23
64D-11605-01-00
Piston Ring Set (0.50Mm O/s)
ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11605-01-00 |
— | ||
| replacement | |||||
|
23
|
23
64D-11605-02-00 Piston Ring Set (0.50Mm O/s)ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ−＃２ |
64D-11605-02-00 |
from US $67.34 |
||
|
24
|
24
6R5-11633-10-00 Pin, Pistonピン，ピストン; |
6R5-11633-10-00 |
from US $14.82 |
||
|
25
|
25
6R5-11634-10-00 Clip, Piston Pinクリツプ，ピストンピン; |
6R5-11634-10-00 |
from US $2.36 |
||
|
26
|
26
60H-11650-00-00 Connecting Rod Assy |
60H-11650-00-00 |
from US $216.40 |
||
|
27
|
27
90109-08022-00 Bolt．ボルト; |
90109-08022-00 |
from US $10.10 |
||
|
28
|
28
933-10323-37-00 Bearing |
933-10323-37-00 |
from US $24.06 |
||
|
29
|
29
90201-23M01-00 Washer, Plateワツシヤ，プレート; |
90201-23M01-00 |
from US $3.04 |
||
|
30
|
30
93310-836U0-00 Bearing |
93310-836U0-00 |
from US $84.12 |
||
