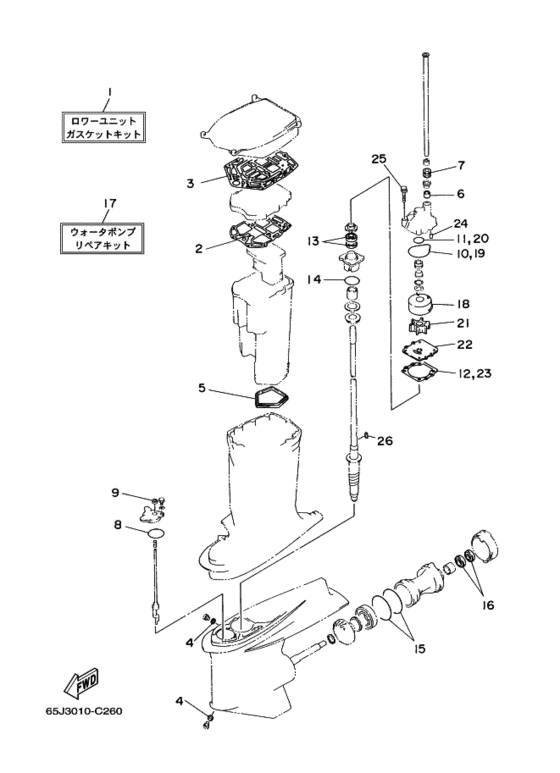

ﾘﾍﾟｱｷﾂﾄ 2 Diagram Yamaha 200 ETOL/XL (VMAX)
- Year
- 2004
- Model
- 200H
- Model code
- 66X
- Year
- 2004
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (999)
- Colour
- Shiny Black (SBL; 00NA)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
66K-W0001-20-00 Lower Unit Gasket Kitロワーユニツトガスケツトキツト; |
66K-W0001-20-00 |
from US $198.25 |
||
|
2
|
2
61A-41134-A0-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
61A-41134-A0-00 |
US $35.28 |
||
| replacement | |||||
|
2
|
2
6D0-41134-00-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
6D0-41134-00-00 |
from US $32.40 |
||
|
3
|
3
61A-45114-A0-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
61A-45114-A0-00 |
from US $27.04 |
||
|
4
|
4
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.28 |
||
| replacement | |||||
|
4
|
4
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.28 |
||
|
5
|
5
66K-45123-00-00 Gasket, Muffler．ガスケツト，マフラ; |
66K-45123-00-00 |
from US $31.59 |
||
|
6
|
6
6E5-44365-00-00
Damper, Water Seal 1
．ダンパ，ウオータシール; |
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
6
|
6
6E5-44365-01-00 DAMPER, WATER SEAL 1．ダンパ，ウオータシール; |
6E5-44365-01-00 |
from US $2.70 |
||
|
7
|
7
6E5-44366-00-00 Damper, Water Seal 2．ダンパ，ウオータシール; |
6E5-44366-00-00 |
US $5.24 |
||
|
8
|
8
932-10644-88-00
O-Ring
．Ｏ−リング; |
932-10644-88-00 |
— | ||
| replacement | |||||
|
8
|
8
93210-65752-00 O-Ring．Ｏ−リング; |
93210-65752-00 |
from US $12.12 |
||
|
9
|
9
931-06090-14-00 Oil Seal．オイルシール; |
931-06090-14-00 |
from US $2.98 |
||
|
10
|
10
93210-86M38-00 O-Ring．Ｏ−リング; |
93210-86M38-00 |
from US $7.42 |
||
|
11
|
11
932-10371-60-00
O-Ring
．Ｏ−リング; |
932-10371-60-00 |
— | ||
| replacement | |||||
|
11
|
11
93210-37M67-00 O-Ring (6G8)．Ｏ−リング; |
93210-37M67-00 |
from US $2.55 |
||
|
12
|
12
6E5-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
6E5-44315-A0-00 |
from US $5.10 |
||
|
13
|
13
931-0128M-16-00 Oil Seal．オイルシール; |
931-0128M-16-00 |
from US $7.08 |
||
|
14
|
14
932-1055M-14-00
O-Ring
．Ｏ−リング; |
932-1055M-14-00 |
— | ||
| replacement | |||||
|
14
|
14
932-10545-34-00 O-Ring．Ｏ−リング; |
932-10545-34-00 |
from US $2.55 |
||
|
15
|
15
93211-04384-00 O-Ring (705)．Ｏ−リング; |
93211-04384-00 |
from US $4.38 |
||
|
16
|
16
931-0130M-17-00 Oil Seal．オイルシール; |
931-0130M-17-00 |
from US $6.40 |
||
|
17
|
17
61A-W0078-A3-00
Water Pump Repair Kit
ウオータポンプリペアキツト; |
61A-W0078-A3-00 |
— | ||
| replacement | |||||
|
17
|
17
61A-W0078-A4-00 WATER PUMP REPAIR KITウオータポンプリペアキツト; |
61A-W0078-A4-00 |
from US $96.80 |
||
|
18
|
18
61A-44322-02-00 Insert, Cartridge．インサート，カートリツジ; |
61A-44322-02-00 |
from US $54.85 |
||
|
19
|
19
93210-86M38-00 O-Ring．Ｏ−リング; |
93210-86M38-00 |
from US $7.42 |
||
|
20
|
20
932-10371-60-00
O-Ring
．Ｏ−リング; |
932-10371-60-00 |
— | ||
| replacement | |||||
|
20
|
20
93210-37M67-00 O-Ring (6G8)．Ｏ−リング; |
93210-37M67-00 |
from US $2.55 |
||
|
21
|
21
6E5-44352-01-00 Impeller．インペラ; |
6E5-44352-01-00 |
from US $41.62 |
||
|
22
|
22
6G5-44323-00-00
Outer Plate, Cartridge
．アウタプレート，カートリツジ; |
6G5-44323-00-00 |
— | ||
| replacement | |||||
|
22
|
22
6G5-44323-01-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
6G5-44323-01-00 |
from US $16.43 |
||
|
23
|
23
6E5-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
6E5-44315-A0-00 |
from US $5.10 |
||
|
24
|
24
936-06120-19-00 Pin, Dowel．ピン，ダウエル; |
936-06120-19-00 |
from US $2.69 |
||
|
25
|
25
90119-08M14-00 Bolt, With Washer．ボルト，ウイズワツシヤ; |
90119-08M14-00 |
from US $3.04 |
||
|
26
|
26
90280-04M05-00 Key, Woodruff．キー，ウツドラフ; |
90280-04M05-00 |
from US $10.44 |
||
