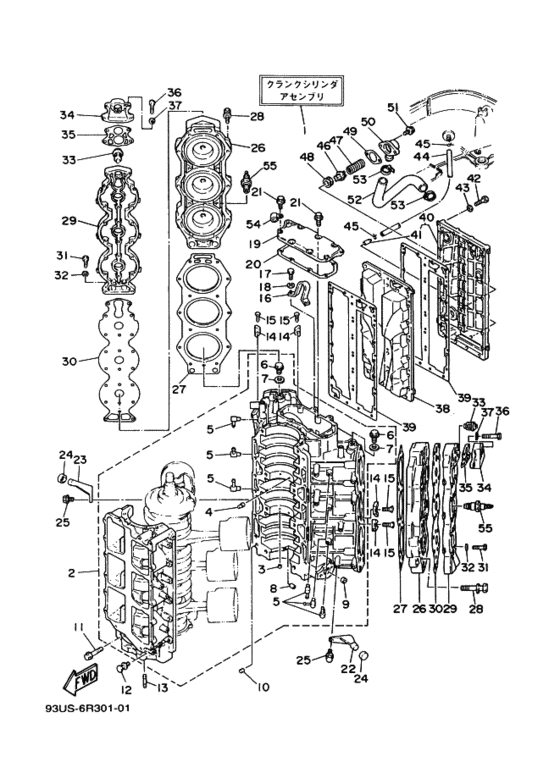

ｼﾘﾝﾀﾞ. ｸﾗﾝｸｹｰｽ Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6R2-W0090-14-4D
Crank Cylinder Assy
クランクシリンダアセンブリ; ＵＲ １５０Ｃ ＊１ |
6R2-W0090-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6R2-W0090-15-1S
Crank Cylinder Assy
クランクシリンダアセンブリ; ＵＲ １５０Ｃ ＊１ |
6R2-W0090-15-1S |
— | ||
|
1
|
1
6R4-W0090-14-4D
Crank Cylinder Assy
クランクシリンダアセンブリ; ＵＲ １７５Ｂ／２００Ｂ ＊１ |
6R4-W0090-14-4D |
— | ||
| replacement | |||||
|
1
|
1
6R4-W0090-15-1S
Crank Cylinder Assy
クランクシリンダアセンブリ; ＵＲ １７５Ｂ／２００Ｂ ＊１ |
6R4-W0090-15-1S |
— | ||
|
2
|
2
6R2-15100-00-94
Crankcase Assembly
クランクケースアセンブリ; ＵＲ １５０Ｃ |
6R2-15100-00-94 |
— | ||
|
2
|
2
6R3-15100-00-94
Crankcase Assembly
クランクケースアセンブリ; ＵＲ １７５Ｂ／２００Ｂ |
6R3-15100-00-94 |
— | ||
| replacement | |||||
|
2
|
2
6R3-15100-00-00
element
クランクケースアセンブリ; ＵＲ １７５Ｂ／２００Ｂ |
6R3-15100-00-00 |
— | ||
|
3
|
3
624-11379-00-00 Valve, Check．バルブ，チエツク; |
624-11379-00-00 |
from US $3.72 |
||
|
4
|
4
663-11518-01-00 Lock, Bearing．ロツク，ベアリング; |
663-11518-01-00 |
from US $6.38 |
||
|
5
|
5
646-11370-00-00
Check Valve Assy
．チエツクバルブアセンブリ; |
646-11370-00-00 |
— | ||
| replacement | |||||
|
5
|
5
646-11370-01-00 Check Valve Assy．チエツクバルブアセンブリ; |
646-11370-01-00 |
from US $10.44 |
||
|
6
|
6
903-4014M-00-00
Plug, Straight Screw
．プラグ，ストレイトスクリユ; |
903-4014M-00-00 |
— | ||
| replacement | |||||
|
6
|
6
90340-14M06-00 Plug, Straight Screw．プラグ，ストレイトスクリユ; |
90340-14M06-00 |
from US $6.51 |
||
|
7
|
7
904-30141-15-00 Gasket．ガスケツト; |
904-30141-15-00 |
from US $2.08 |
||
|
8
|
8
90384-06M07-00 Bush, Bimetal Formed．ブツシユ，バイメタルフオームド; |
90384-06M07-00 |
US $2.55 |
||
|
9
|
9
903-8414M-09-00
Bush, Bimetal Formed
．ブツシユ，バイメタルフオームド; |
903-8414M-09-00 |
— | ||
| replacement | |||||
|
9
|
9
903-84140-11-00 Bush, Bimetal Formed．ブツシユ，バイメタルフオームド; |
903-84140-11-00 |
US $2.83 |
||
|
10
|
10
93608-12063-00 Pin, Dowel |
93608-12063-00 |
from US $1.84 |
||
|
11
|
11
90105-10M20-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10M20-00 |
from US $7.51 |
||
|
12
|
12
90119-08M23-00
Bolt, W/washer
|
90119-08M23-00 |
— | ||
|
13
|
13
90116-08M45-00 Bolt, Stud |
90116-08M45-00 |
US $10.48 |
||
| replacement | |||||
|
13
|
13
90116-08M14-00 Bolt, Stud |
90116-08M14-00 |
from US $8.01 |
||
|
14
|
14
6E5-11325-00-00 Anodeアノード; |
6E5-11325-00-00 |
from US $5.40 |
||
|
15
|
15
98680-04016-00 Screw, Flat Headスクリユ，オーバルヘツド; |
98680-04016-00 |
from US $1.39 |
||
| replacements | |||||
|
15
|
15
98780-04014-00 Screw, Flat Head(Ga5)スクリユ，オーバルヘツド; |
98780-04014-00 |
from US $1.70 |
||
|
15
|
15
98780-04016-00 Screw, Flat Head (Fe4)スクリユ，オーバルヘツド; |
98780-04016-00 |
from US $2.13 |
||
|
16
|
16
6E5-11119-00-00 Hanger, Engineハンガ，エンジン; |
6E5-11119-00-00 |
US $14.31 |
||
| replacement | |||||
|
16
|
16
6E5-11119-01-00 Hanger, Engineハンガ，エンジン; |
6E5-11119-01-00 |
from US $14.31 |
||
|
17
|
17
973-13080-20-00
Bolt (661)
|
973-13080-20-00 |
— | ||
| replacements | |||||
|
17
|
17
97080-08020-00 Bolt(6Td) |
97080-08020-00 |
from US $4.05 |
||
|
17
|
17
97013-08020-00 Bolt |
97013-08020-00 |
from US $1.64 |
||
|
18
|
18
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.66 |
||
|
19
|
19
6K7-11371-01-9M Coverカバー; |
6K7-11371-01-9M |
US $32.02 |
||
| replacement | |||||
|
19
|
19
6K7-11371-01-1S Coverカバー; |
6K7-11371-01-1S |
from US $32.02 |
||
|
20
|
20
6E5-11381-00-00 Gasket 1ガスケツト １; |
6E5-11381-00-00 |
US $10.20 |
||
| replacement | |||||
|
20
|
20
6E5-11381-A2-00 Gasket 1ガスケツト １; |
6E5-11381-A2-00 |
from US $8.08 |
||
|
21
|
21
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
21
|
21
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
21
|
21
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
22
|
22
6E5-42761-00-94 Stopperストツパ; |
6E5-42761-00-94 |
US $16.01 |
||
| replacement | |||||
|
22
|
22
6E5-42761-00-1S Stopperストツパ; |
6E5-42761-00-1S |
from US $16.01 |
||
|
23
|
23
6E5-42762-00-94 Stopperストツパ; |
6E5-42762-00-94 |
US $16.01 |
||
| replacement | |||||
|
23
|
23
6E5-42762-00-1S Stopperストツパ; |
6E5-42762-00-1S |
from US $14.47 |
||
|
24
|
24
663-44533-00-00 Damper, Upper Mount Rubberダンパ，アツパーマウントラバー; |
663-44533-00-00 |
from US $5.38 |
||
|
25
|
25
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
25
|
25
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
25
|
25
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
26
|
26
6G4-11111-02-94 Head, Cylinder 1ヘツド，シリンダ １; ＵＲ １５０Ｃ |
6G4-11111-02-94 |
US $356 |
||
| replacement | |||||
|
26
|
26
6G4-11111-02-1S Head, Cylinder 1ヘツド，シリンダ １; ＵＲ １５０Ｃ |
6G4-11111-02-1S |
from US $356 |
||
|
26
|
26
6G5-11111-03-94 Head, Cylinder 1ヘツド，シリンダ １; ＵＲ １７５Ｂ／２００Ｂ |
6G5-11111-03-94 |
US $398.29 |
||
| replacement | |||||
|
26
|
26
6G5-11111-03-1S Head, Cylinder 1ヘツド，シリンダ １; ＵＲ １７５Ｂ／２００Ｂ |
6G5-11111-03-1S |
from US $398.29 |
||
|
27
|
27
6G5-11181-A0-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
6G5-11181-A0-00 |
US $84.42 |
||
| replacement | |||||
|
27
|
27
6G5-11181-A3-00 Gasket, Cylinder Head 1ガスケツト，シリンダヘツド １; |
6G5-11181-A3-00 |
from US $56.22 |
||
|
28
|
28
90119-08M21-00 Bolt,with Washer |
90119-08M21-00 |
from US $3.08 |
||
| replacement | |||||
|
28
|
28
90119-08M07-00 Bolt, With Washer |
90119-08M07-00 |
from US $4.68 |
||
|
29
|
29
6G5-11191-00-9M Cover, Cylinder Head 1カバー，シリンダヘツド １; |
6G5-11191-00-9M |
US $85.94 |
||
| replacement | |||||
|
29
|
29
6G5-11191-00-1S Cover, Cylinder Head 1カバー，シリンダヘツド １; |
6G5-11191-00-1S |
from US $85.94 |
||
|
30
|
30
6G5-11193-A0-00
Gasket, Head Cover 1
ガスケツト，ヘツドカバー １; |
6G5-11193-A0-00 |
— | ||
| replacement | |||||
|
30
|
30
6G5-11193-A2-00 Gasket, Head Cover 1ガスケツト，ヘツドカバー １; |
6G5-11193-A2-00 |
from US $30.30 |
||
|
31
|
31
970-95060-30-00
Bolt
ボルト; |
970-95060-30-00 |
— | ||
| replacement | |||||
|
31
|
31
97080-06030-00 Boltボルト; |
97080-06030-00 |
from US $2.83 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
33
|
33
6E5-12411-20-00 Thermostatサーモスタツト; |
6E5-12411-20-00 |
US $50.01 |
||
| replacement | |||||
|
33
|
33
6E5-12411-30-00 Thermostatサーモスタツト; |
6E5-12411-30-00 |
from US $40.10 |
||
|
34
|
34
6G5-12413-00-9M Cover, Thermostatカバー，サーモスタツト; |
6G5-12413-00-9M |
US $44.62 |
||
| replacement | |||||
|
34
|
34
6G5-12413-00-1S Cover, Thermostatカバー，サーモスタツト; |
6G5-12413-00-1S |
from US $23.60 |
||
|
35
|
35
688-12414-A1-00 Gasket, Coverガスケツト，カバー; |
688-12414-A1-00 |
from US $3.04 |
||
|
36
|
36
97313-06045-00 Bolt, Hexagon |
97313-06045-00 |
from US $1.57 |
||
| replacement | |||||
|
36
|
36
97013-06045-00 Bolt |
97013-06045-00 |
from US $1.57 |
||
|
37
|
37
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
38
|
38
6G5-41111-00-9M Inner Cover, Exhaustインナカバー，エキゾースト; |
6G5-41111-00-9M |
US $142.30 |
||
| replacement | |||||
|
38
|
38
64D-41111-00-1S Inner Cover, Exhaustインナカバー，エキゾースト; |
64D-41111-00-1S |
from US $142.30 |
||
|
39
|
39
6G5-41112-A1-00 Gasket, Exhaust Inner Coverガスケツト，エキゾーストインナカバー; |
6G5-41112-A1-00 |
from US $20.26 |
||
|
40
|
40
6R3-41113-00-9M Outer Cover, Exhaustアウタカバー，エキゾースト; |
6R3-41113-00-9M |
US $129.32 |
||
| replacement | |||||
|
40
|
40
6R3-41113-00-1S Outer Cover, Exhaustアウタカバー，エキゾースト; |
6R3-41113-00-1S |
from US $129.32 |
||
|
41
|
41
650-24378-00-00
Pipe, Joint 4
．パイプ，ジヨイント ４; |
650-24378-00-00 |
— | ||
| replacements | |||||
|
41
|
41
652-24461-00-00 Pipe, Joint 4．パイプ，ジヨイント ４; |
652-24461-00-00 |
from US $3.97 |
||
|
41
|
41
6EE-F4377-00-00 Pipe, Joint 2．パイプ，ジヨイント ４; |
6EE-F4377-00-00 |
from US $3.33 |
||
|
42
|
42
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
42
|
42
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
43
|
43
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
44
|
44
6E5-24312-00-00 Pipe 2 |
6E5-24312-00-00 |
from US $9.21 |
||
|
45
|
45
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
46
|
46
6G5-12416-00-00 Valve, Pressure Contバルブ，プレツシヤコントロール; |
6G5-12416-00-00 |
from US $15.16 |
||
| replacement | |||||
|
46
|
46
60H-12416-00-00 Valve, Pressure Controlバルブ，プレツシヤコントロール; |
60H-12416-00-00 |
from US $9.78 |
||
|
47
|
47
90501-16M11-00 Spring, Compression |
90501-16M11-00 |
from US $2.70 |
||
|
48
|
48
904-8020M-05-00 Grommet |
904-8020M-05-00 |
from US $1.70 |
||
|
49
|
49
6G5-11382-A1-00 Gasket 2 |
6G5-11382-A1-00 |
from US $2.02 |
||
|
50
|
50
6G5-11372-00-5B Nipple, Hose (6G5-11372-00-9M)カバー，バイパス ２; |
6G5-11372-00-5B |
US $20.54 |
||
| replacement | |||||
|
50
|
50
6G5-11372-00-1S Cover, Bypass 2カバー，バイパス ２; |
6G5-11372-00-1S |
from US $19.20 |
||
|
51
|
51
975-95065-20-00
Bolt, With Washer
ボルト，ウイズワツシヤ; |
975-95065-20-00 |
— | ||
| replacements | |||||
|
51
|
51
970-80060-20-00 Boltボルト，ウイズワツシヤ; |
970-80060-20-00 |
from US $1.66 |
||
|
51
|
51
97E95-06520-00 Bolt, Hexagon W/w Deボルト，ウイズワツシヤ; |
97E95-06520-00 |
from US $1.07 |
||
|
52
|
52
6G5-12576-00-00 Hose 1ホース １; |
6G5-12576-00-00 |
from US $10.77 |
||
|
53
|
53
90465-13M36-00 Clamp |
90465-13M36-00 |
US $1.98 |
||
| replacement | |||||
|
53
|
53
90465-13M39-00 Clamp(6E8) |
90465-13M39-00 |
from US $1.70 |
||
|
54
|
54
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
|
55
|
55
947-09002-47-00 Pulg Spark (NGK BR8HS-10)プラグ，スパーク ; ＮＧＫ ＢＲ８ＨＳ−１０ |
947-09002-47-00 |
US $7.49 |
||
