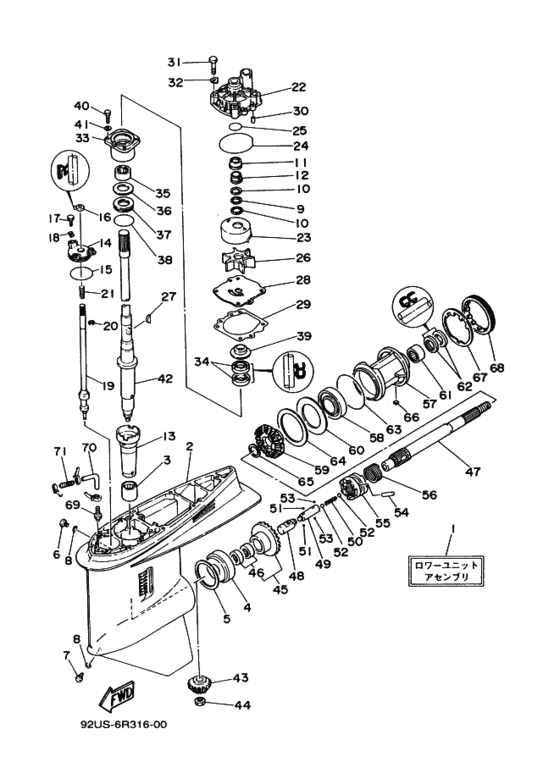

ロワーケーシング. ドライブ 1 Diagram Yamaha 200 ETOL/XL

Year
1995
Model
200B
Model code
6R4
Year
1995
Stroke (2-stroke or 4-stroke)
2 stroke
Power
200
Sales region
Japan (010)
Colour
Dark Bluish Gray Metallic 2 (DBNM2; 004D)

Difficulties in parts search?

Parts list
ロワーケーシング. ドライブ 1

Difficulties in parts search?

ロワーケーシング. ドライブ 1
Description OEM Part # Price
1
1

6G5-45300-14-4D

Lower Unit Assy

ロワーユニツトアセンブリ; UR LONG *1

6G5-45300-14-4D

US $3,696

replacements
1
1

6G5-45300-17-8D

Lower Unit Assy

ロワーユニツトアセンブリ; UR LONG *1

6G5-45300-17-8D

US $3,696

1
1

6G5-45300-1B-8D

LOWER UNIT ASSY

ロワーユニツトアセンブリ; UR LONG *1

6G5-45300-1B-8D

from US $3,696

1
1

6G5-45300-24-4D

Lower Unit Assy

ロワーユニツトアセンブリ; UR ULTRA LONG *1

6G5-45300-24-4D

US $3,696

replacements
1
1

6G5-45300-27-8D

Lower Unit Assy (X)

ロワーユニツトアセンブリ; UR ULTRA LONG *1

6G5-45300-27-8D

US $3,738.91

1
1

6G5-45300-2B-8D

LOWER UNIT ASSY

ロワーユニツトアセンブリ; UR ULTRA LONG *1

6G5-45300-2B-8D

from US $3,696

2
2

6J9-45301-01-4D

Casing, Lower

ケーシング,ロワー;

6J9-45301-01-4D

US $1,887.60

replacement
2
2

6J9-45301-05-8D

Casing, Lower

ケーシング,ロワー;

6J9-45301-05-8D

from US $1,682.05

3
3

93311-928U5-00

Bearing

93311-928U5-00

from US $101.06

4
4

93332-000V3-00

Bearing

93332-000V3-00

from US $83.66

5
5
6G5-45567-01-10
Shim (T:0.10Mm)

.シム ; T:010MM; UR

6G5-45567-01-10

replacement
5
5

6G5-45567-01-00

Shim (T:0.10Mm)

.シム ; T:010MM; UR

6G5-45567-01-00

from US $3.38

5
5
6G5-45567-01-12
Shim (T:0.12Mm)

.シム ; T:012MM; UR

6G5-45567-01-12

replacement
5
5

6G5-45567-10-00

Shim (T:0.12Mm)

.シム ; T:012MM; UR

6G5-45567-10-00

from US $7.65

5
5
6G5-45567-01-15
Shim (T:0.15Mm)

.シム ; T:015MM; UR

6G5-45567-01-15

replacement
5
5

6G5-45567-20-00

Shim (T:0.15Mm)

.シム ; T:015MM; UR

6G5-45567-20-00

from US $7.65

5
5
6G5-45567-01-18
Shim (T:0.18Mm)

.シム ; T:018MM; UR

6G5-45567-01-18

replacement
5
5

6G5-45567-30-00

Shim (T:0.18Mm)

.シム ; T:018MM; UR

6G5-45567-30-00

from US $2.70

5
5
6G5-45567-01-30
Shim (T:0.30Mm)

.シム ; T:030MM; UR

6G5-45567-01-30

replacement
5
5

6G5-45567-40-00

Shim (T:0.30Mm)

.シム ; T:030MM; UR

6G5-45567-40-00

from US $8.05

5
5

6G5-45567-01-40

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6G5-45567-01-40

US $7.65

replacement
5
5

6G5-45567-50-00

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6G5-45567-50-00

from US $8.05

5
5

6G5-45567-01-50

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6G5-45567-01-50

US $7.65

replacement
5
5

6G5-45567-60-00

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6G5-45567-60-00

from US $7.65

6
6
903-4008M-04-00
Plug, Straight Screw

903-4008M-04-00

replacement
6
6

903-40080-02-00

Plug, Straight Screw

903-40080-02-00

from US $3.74

7
7
688-45341-00-00
Plug, Drain

プラグ,ドレン;

688-45341-00-00

replacement
7
7

688-45341-10-00

Plug, Drain

プラグ,ドレン;

688-45341-10-00

from US $7.21

8
8

904-30080-20-00

Gasket

904-30080-20-00

from US $1.52

replacement
8
8

90430-08003-00

Gasket

90430-08003-00

from US $1.36

9
9

90206-22M19-00

Washer, Wave

ワツシヤ,ウエイブ;

90206-22M19-00

from US $4.72

10
10

90201-22M01-00

Washer, Plate

ワツシヤ,プレート;

90201-22M01-00

from US $2.50

11
11

61A-45527-00-00

Collar, Drive Shaft

カラー,ドライブシヤフト;

61A-45527-00-00

from US $8.32

12
12

61A-45538-00-00

Spacer 1

スペーサ 1;

61A-45538-00-00

from US $2.08

13
13

6G5-45536-01-00

Sleeve, Drive Shaft

スリーブ,ドライブシヤフト;

6G5-45536-01-00

from US $13.03

14
14

6E5-45321-00-00

Plate

プレート;

6E5-45321-00-00

from US $25.02

15
15

93210-58677-00

O-Ring

O−リング;

93210-58677-00

from US $3.04

16
16

931-06090-14-00

Oil Seal

オイルシール;

931-06090-14-00

from US $3.13

17
17

97395-06020-00

Bolt, Hexagon

97395-06020-00

US $1.56

replacement
17
17

970-80060-20-00

Bolt

970-80060-20-00

from US $1.66

18
18
90209-06M04-00
Washer

90209-06M04-00

19
19

6G5-44150-01-00

Shift Cam Assy

シフトカムアセンブリ;

6G5-44150-01-00

US $482.86

replacement
19
19

6G5-44150-02-00

Shift Cam Assy

シフトカムアセンブリ;

6G5-44150-02-00

from US $373.64

20
20

99001-08600-00

Circlip

サークリツプ;

99001-08600-00

from US $1.52

21
21

90501-11M10-00

Spring, Compression

90501-11M10-00

from US $5.09

22
22

61A-44311-00-00

Housing, Water Pump

ハウジング,ウオータポンプ;

61A-44311-00-00

US $72.12

replacement
22
22

61A-44311-01-00

Housing, Water Pump

ハウジング,ウオータポンプ;

61A-44311-01-00

from US $28.96

23
23

61A-44322-00-00

Insert, Cartridge

インサート,カートリツジ;

61A-44322-00-00

from US $25.26

24
24

93210-86M38-00

O-Ring

O−リング;

93210-86M38-00

from US $8.08

25
25

93210-37M67-00

O-Ring (6G8)

O−リング;

93210-37M67-00

from US $2.77

26
26

6E5-44352-00-00

Impeller

インペラ;

6E5-44352-00-00

US $48.63

replacement
26
26

6E5-44352-01-00

Impeller

インペラ;

6E5-44352-01-00

from US $42.23

27
27

90280-04M05-00

Key, Woodruff

キー,ウツドラフ;

90280-04M05-00

from US $10.78

28
28
6G5-44323-00-00
Outer Plate, Cartridge

アウタプレート,カートリツジ;

6G5-44323-00-00

replacement
28
28

6G5-44323-01-00

Outer Plate, Cartridge

アウタプレート,カートリツジ;

6G5-44323-01-00

from US $16.09

29
29

6E5-44315-A0-00

Gasket, Water Pump

ガスケツト,ウオータポンプ;

6E5-44315-A0-00

from US $4.99

30
30

936-06120-19-00

Pin, Dowel

936-06120-19-00

from US $2.86

31
31

97395-08045-00

Bolt

97395-08045-00

from US $1.56

replacements
31
31

97080-08045-00

Bolt, Hexagon

97080-08045-00

from US $4.25

31
31

97095-08045-00

Bolt

97095-08045-00

from US $1.56

32
32

90209-08M02-00

Washer

90209-08M02-00

from US $3.83

33
33

6E5-45331-00-94

Housing, Bearing

ハウジング,ベアリング;

6E5-45331-00-94

US $102.51

replacement
33
33

6E5-45331-00-9S

Housing, Bearing

ハウジング,ベアリング;

6E5-45331-00-9S

from US $102.51

34
34

931-0128M-16-00

Oil Seal

オイルシール;

931-0128M-16-00

from US $7.42

35
35

93317-330U2-00

Bearing

93317-330U2-00

from US $25.53

replacement
35
35

93315-430V5-00

Bearing

93315-430V5-00

from US $20.20

36
36
6E5-45587-01-10
Shim (T:0.10Mm)

.シム ; T:010MM; UR

6E5-45587-01-10

replacement
36
36

6E5-45587-01-00

Shim (T:0.10Mm)

.シム ; T:010MM; UR

6E5-45587-01-00

from US $2.70

36
36
6E5-45587-01-12
Shim (T:0.12Mm)

.シム ; T:012MM; UR

6E5-45587-01-12

replacement
36
36

6E5-45587-10-00

Shim (T:0.12Mm)

.シム ; T:012MM; UR

6E5-45587-10-00

from US $2.70

36
36
6E5-45587-01-15
Shim (T:0.15Mm)

.シム ; T:015MM; UR

6E5-45587-01-15

replacement
36
36

6E5-45587-20-00

Shim (T:0.15Mm)

.シム ; T:015MM; UR

6E5-45587-20-00

from US $2.36

36
36

6E5-45587-01-18

Shim (T:0.18Mm)

.シム ; T:018MM; UR

6E5-45587-01-18

US $7.65

replacement
36
36

6E5-45587-30-00

Shim (T:0.18Mm)

.シム ; T:018MM; UR

6E5-45587-30-00

from US $3.04

36
36

6E5-45587-01-30

Shim (T:0.30Mm)

.シム ; T:030MM; UR

6E5-45587-01-30

US $7.65

replacement
36
36

6E5-45587-40-00

Shim (T:0.30Mm)

.シム ; T:030MM; UR

6E5-45587-40-00

from US $2.36

36
36

6E5-45587-01-40

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6E5-45587-01-40

US $7.65

replacement
36
36

6E5-45587-50-00

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6E5-45587-50-00

from US $3.04

36
36

6E5-45587-01-50

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6E5-45587-01-50

US $7.65

replacement
36
36

6E5-45587-60-00

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6E5-45587-60-00

from US $2.02

37
37

93341-930U0-00

Bearing

ベアリング,スラスト;

93341-930U0-00

from US $130.15

replacement
37
37

93341-930V2-00

Bearing

ベアリング,スラスト;

93341-930V2-00

from US $128.27

38
38

932-10545-34-00

O-Ring

O−リング;

932-10545-34-00

from US $2.77

39
39

6E5-45344-00-00

Cover, Oil Seal

カバー,オイルシール;

6E5-45344-00-00

from US $7.42

40
40

97395-08025-00

Bolt

97395-08025-00

from US $4.53

replacements
40
40

98980-08025-00

Screw, Bind (98902-08025-00)

98980-08025-00

from US $5.68

40
40

97095-08025-00

Bolt

97095-08025-00

from US $3.38

41
41

92990-08600-00

Washer, Plate

ワツシヤ,プレート;

92990-08600-00

from US $1.66

42
42
6G5-45501-01-00
Drive Shaft Comp (L)

ドライブシヤフトコンプリート; UR LONG

6G5-45501-01-00

replacement
42
42

6G5-45501-02-00

Drive Shaft Comp (L)

Drive shaft comp. ( long)

ドライブシヤフトコンプリート; UR LONG

6G5-45501-02-00

from US $637.88

42
42
6G5-45501-21-00
Drive Shaft Comp (X)

ドライブシヤフトコンプリート; UR ULTRA LONG

6G5-45501-21-00

replacement
42
42

6G5-45501-22-00

Drive Shaft Comp (X)

ドライブシヤフトコンプリート; UR ULTRA LONG

6G5-45501-22-00

from US $614.29

43
43
6G5-45551-01-00
Pinion (14T)

6G5-45551-01-00

replacement
43
43

6G5-45551-10-00

Pinion (14T)

6G5-45551-10-00

from US $114.82

44
44

90170-16M01-00

Nut

90170-16M01-00

from US $5.74

45
45

6G5-45560-01-00

Gear 1 (26T)

ギヤ;

6G5-45560-01-00

US $298.43

replacement
45
45

6G5-45560-10-00

Gear 1 (26T)

ギヤ;

6G5-45560-10-00

from US $268.62

46
46

93315-425V3-00

Bearing

.ベアリング;

93315-425V3-00

from US $20.12

47
47

6J9-45611-01-00

Shaft, Propeller

シヤフト,プロペラ;

6J9-45611-01-00

from US $319.90

48
48

6E5-45641-01-00

Shifter

シフター;

6E5-45641-01-00

US $133.32

replacement
48
48

6E5-45641-03-00

Shifter

シフター;

6E5-45641-03-00

from US $133.32

49
49

6E5-45634-01-00

Slide, Shift

スライド,シフト;

6E5-45634-01-00

from US $41.57

50
50

90501-16M37-00

Spring, Compression

90501-16M37-00

from US $2.02

51
51

93507-32031-00

Ball 7-32

ボール;

93507-32031-00

from US $1.63

52
52

93511-32027-00

Ball

ボール;

93511-32027-00

from US $1.66

53
53

93503-16010-00

Ball 3-16

ボール;

93503-16010-00

from US $1.39

replacement
53
53

93503-16003-00

Ball

ボール;

93503-16003-00

from US $1.39

54
54

90250-08M07-00

Pin, Straight

90250-08M07-00

from US $4.39

55
55

6G5-45631-00-00

Clutch, Dog

クラツチ,ドツグ;

6G5-45631-00-00

from US $204.48

replacement
55
55

6G5-45631-10-00

Clutch, Dog

クラツチ,ドツグ;

6G5-45631-10-00

US $165.26

56
56

6E5-45633-01-00

Ring, Cross Pin

リング,クロスピン;

6E5-45633-01-00

from US $10.78

57
57

6J9-45332-00-94

Housing, Bearing

6J9-45332-00-94

US $132.50

replacement
57
57

6J9-45332-00-CA

Housing, Bearing

6J9-45332-00-CA

from US $132.50

58
58

93306-209U0-00

Bearing

93306-209U0-00

from US $56.63

59
59

6G5-45571-02-00

Gear 2 (26T)

ギヤ;

6G5-45571-02-00

from US $196.19

60
60
6G5-45576-00-00
Washer, Thrust 2

ワツシヤ,スラスト;

6G5-45576-00-00

61
61
933-15430-U8-00
Bearing

933-15430-U8-00

replacement
61
61

93315-43061-00

Bearing

93315-43061-00

from US $30.64

62
62

931-0130M-17-00

Oil Seal

オイルシール;

931-0130M-17-00

from US $6.74

63
63

93210-97M55-00

O-Ring

93210-97M55-00

from US $9.57

64
64

6G5-45577-02-40

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6G5-45577-02-40

US $7.23

replacement
64
64

6G5-45577-50-00

Shim (T:0.40Mm)

.シム ; T:040MM; UR

6G5-45577-50-00

from US $7.63

64
64

6G5-45577-02-50

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6G5-45577-02-50

US $7.23

replacement
64
64

6G5-45577-60-00

Shim (T:0.50Mm)

.シム ; T:050MM; UR

6G5-45577-60-00

from US $4.04

64
64

6G5-45577-02-10

Shim (T:0.10Mm)

.シム ; T:010MM; UR

6G5-45577-02-10

US $7.23

replacement
64
64

6G5-45577-02-00

Shim (T:0.10Mm)

.シム ; T:010MM; UR

6G5-45577-02-00

from US $4.38

64
64

6G5-45577-02-12

Shim (T:0.12Mm)

.シム ; T:012MM; UR

6G5-45577-02-12

US $7.23

replacement
64
64

6G5-45577-10-00

Shim (T:0.12Mm)

.シム ; T:012MM; UR

6G5-45577-10-00

from US $4.04

64
64

6G5-45577-02-15

Shim (T:0.15Mm)

.シム ; T:015MM; UR

6G5-45577-02-15

US $7.23

replacement
64
64

6G5-45577-20-00

Shim (T:0.15Mm)

.シム ; T:015MM; UR

6G5-45577-20-00

from US $4.04

64
64

6G5-45577-02-18

Shim (T:0.18Mm)

.シム ; T:018MM; UR

6G5-45577-02-18

US $7.23

replacement
64
64

6G5-45577-30-00

Shim (T:0.18Mm)

.シム ; T:018MM; UR

6G5-45577-30-00

from US $7.23

64
64

6G5-45577-02-30

Shim (T:0.30Mm)

.シム ; T:030MM; UR

6G5-45577-02-30

US $7.23

replacement
64
64

6G5-45577-40-00

Shim (T:0.30Mm)

.シム ; T:030MM; UR

6G5-45577-40-00

from US $4.04

65
65

90201-30M92-00

Washer, Plate

ワツシヤ,プレート;

90201-30M92-00

from US $4.53

66
66

90282-04M00-00

Key, Straight

キー,ストレイト;

90282-04M00-00

from US $2.45

67
67

6G5-45383-01-00

Washer, Claw

ワツシヤ,クロー;

6G5-45383-01-00

from US $12.80

68
68

6G5-45384-00-00

Nut

6G5-45384-00-00

US $52.09

replacement
68
68

6G5-45384-02-00

Nut

6G5-45384-02-00

from US $23.58

69
69

6E5-45378-00-00

Nipple, Hose

ニツプル,ホース;

6E5-45378-00-00

from US $4.72

70
70
904-4507M-E8-00
Hose (L80)

ホース; UR LONG

904-4507M-E8-00

replacement
70
70

90445-07MF2-00

Hose (L250)

ホース; UR LONG

90445-07MF2-00

from US $1.98

70
70

90445-07ME9-00

Hose (L120)

ホース; UR ULTRA LONG

90445-07ME9-00

US $1.98

replacement
70
70

90445-07MF2-00

Hose (L250)

ホース; UR ULTRA LONG

90445-07MF2-00

from US $1.98

71
71

6E5-83558-10-00

End, Nipple

エンド,ニツプル;

6E5-83558-10-00

from US $6.23

ロワーケーシング. ドライブ 1 Diagram Yamaha 200 ETOL/XL Dark Bluish Gray Metallic 2 (DBNM2; 004D) Japan (010) 11281039-718708
