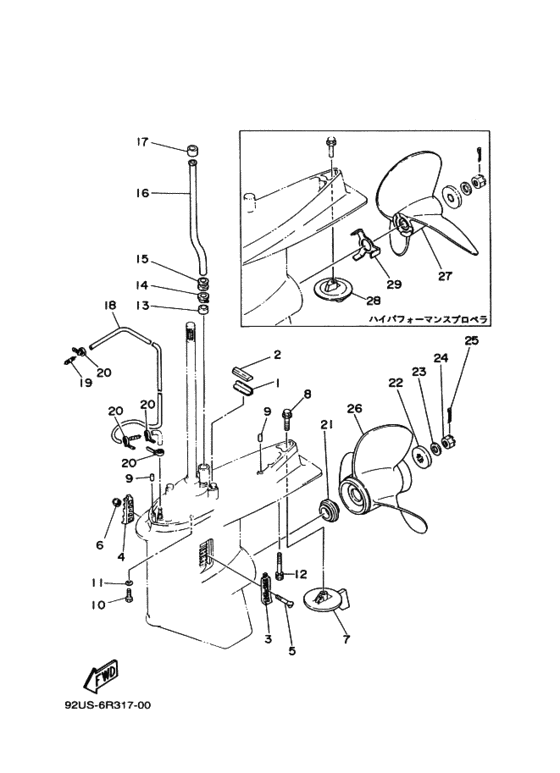

ﾛﾜｰｹｰｼﾝｸﾞ. ﾄﾞﾗｲﾌﾞ 2 Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
663-45376-00-94
Guide, Seal Damper
ガイド，シールダンパ; 参照 |
663-45376-00-94 |
— | ||
| replacement | |||||
|
1
|
1
663-45376-00-00 Guide, Seal Damperガイド，シールダンパ; 参照 |
663-45376-00-00 |
from US $5.82 |
||
|
2
|
2
688-45375-00-00 Damper, Sealダンパ，シール; 参照 |
688-45375-00-00 |
from US $6.66 |
||
|
3
|
3
6J9-45214-00-00 Cover, Water Inlet 1カバー，ウオータインレツト; |
6J9-45214-00-00 |
from US $5.06 |
||
|
4
|
4
6J9-45215-00-00 Cover, Water Inlet 2カバー，ウオータインレツト; |
6J9-45215-00-00 |
from US $5.06 |
||
|
5
|
5
90142-05M04-00 Screw |
90142-05M04-00 |
US $3.26 |
||
| replacement | |||||
|
5
|
5
90152-05M08-00 Screw, Countersunk |
90152-05M08-00 |
from US $3.04 |
||
|
6
|
6
901-85050-02-00
Nut, Nylon
|
901-85050-02-00 |
— | ||
| replacement | |||||
|
6
|
6
90185-05904-00 Nut, Self-Locking |
90185-05904-00 |
from US $2.36 |
||
|
7
|
7
6J9-45371-01-00 Tab-Trimタブトリム; |
6J9-45371-01-00 |
from US $28.17 |
||
|
8
|
8
90105-10M00-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
90105-10M00-00 |
from US $6.40 |
||
|
9
|
9
93608-12M05-00 Pin, Dowelピン，ダウエル; |
93608-12M05-00 |
from US $2.02 |
||
|
10
|
10
97395-10045-00 Bolt |
97395-10045-00 |
US $7.51 |
||
| replacements | |||||
|
10
|
10
970-75100-45-00 Bolt(64D) |
970-75100-45-00 |
from US $8.64 |
||
|
10
|
10
97095-10045-00 Bolt |
97095-10045-00 |
from US $5.74 |
||
|
11
|
11
92990-10100-00 Ybs67-10 Washer, Springワツシヤ，スプリング; |
92990-10100-00 |
from US $1.66 |
||
|
12
|
12
90119-10M89-00 Bolt, With Washer |
90119-10M89-00 |
from US $9.07 |
||
| replacement | |||||
|
12
|
12
901-19100-71-00 BOLT WITH WASHER |
901-19100-71-00 |
from US $7.70 |
||
|
13
|
13
6E5-44365-00-00
Damper, Water Seal 1
ダンパ，ウオータシール; 参照 |
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
13
|
13
6E5-44365-01-00 DAMPER, WATER SEAL 1ダンパ，ウオータシール; 参照 |
6E5-44365-01-00 |
from US $2.93 |
||
|
14
|
14
6E5-44312-00-00 Cover, Water Pump Housingカバー，ウオータポンプハウジング; 参照 |
6E5-44312-00-00 |
from US $2.70 |
||
|
15
|
15
6E5-44366-00-00 Damper, Water Seal 2ダンパ，ウオータシール; |
6E5-44366-00-00 |
US $5.55 |
||
|
16
|
16
6E5-44361-00-00 Tube, Water 1チユーブ，ウオータ; ＵＲ Ｌ０ＮＧ |
6E5-44361-00-00 |
from US $36.70 |
||
|
16
|
16
6E5-44361-20-00 Tube, Water 1チユーブ，ウオータ; ＵＲ ＵＬＴＲＡ ＬＯＮＧ |
6E5-44361-20-00 |
from US $47.39 |
||
|
17
|
17
6E5-44365-00-00
Damper, Water Seal 1
ダンパ，ウオータシール; |
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
17
|
17
6E5-44365-01-00 DAMPER, WATER SEAL 1ダンパ，ウオータシール; |
6E5-44365-01-00 |
from US $2.93 |
||
|
18
|
18
90445-07MF0-00 Hose (L1030)ホース; |
90445-07MF0-00 |
US $27.06 |
||
| replacement | |||||
|
18
|
18
904-4507M-21-00 Hose (L1160)ホース; |
904-4507M-21-00 |
from US $16 |
||
|
19
|
19
6E5-83558-00-00 End, Nipple |
6E5-83558-00-00 |
from US $6.23 |
||
|
20
|
20
904-6511M-10-00
Clamp
|
904-6511M-10-00 |
— | ||
| replacements | |||||
|
20
|
20
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
20
|
20
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
|
21
|
21
6E5-45987-01-00 Spacer 1スペーサ; |
6E5-45987-01-00 |
US $97.26 |
||
| replacement | |||||
|
21
|
21
63P-45987-00-00 Spacer 1スペーサ; |
63P-45987-00-00 |
from US $69.77 |
||
|
22
|
22
688-45997-01-00 Spacer 2スペーサ; |
688-45997-01-00 |
from US $27.28 |
||
|
23
|
23
92990-18200-00 Washer |
92990-18200-00 |
from US $3.69 |
||
|
24
|
24
90171-18M04-00 Nut, Castle |
90171-18M04-00 |
from US $12.46 |
||
|
25
|
25
914-90400-30-00 Pin. Cotter |
914-90400-30-00 |
from US $2.36 |
||
|
26
|
26
6G5-45976-01-98 Propeller (3X13-3/8"x23"-M)プロペラ ; ３Ｘ１３−３／８ Ｘ２３ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45976-01-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45976-01-00 Propeller (3X13-3/8"x23"-M)プロペラ ; ３Ｘ１３−３／８ Ｘ２３ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45976-01-00 |
from US $1,085.04 |
||
|
26
|
26
6G5-45978-02-98 Propeller Assy (3 X 13-3/4" X 17"-M)プロペラ ; ３Ｘ１３−３／４ Ｘ１７ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45978-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45978-03-00 Propeller (3X13-3/4"x17"-M2)プロペラ ; ３Ｘ１３−３／４ Ｘ１７ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45978-03-00 |
from US $1,037.78 |
||
|
26
|
26
6G5-45930-00-98 Propeller (3X13-3/8"x25"-M)プロペラ ; ３Ｘ１３−３／８ Ｘ２５ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45930-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45930-00-00 Propeller (3X13-3/8"x25"-M)プロペラ ; ３Ｘ１３−３／８ Ｘ２５ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45930-00-00 |
from US $1,085.04 |
||
|
26
|
26
6G5-45932-00-98 Propeller (3X15-3/4"x13"-M)プロペラ ; ３Ｘ１５−３／４ Ｘ１３ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45932-00-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45932-00-00 Propeller (3X15-3/4"x13"-M)プロペラ ; ３Ｘ１５−３／４ Ｘ１３ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45932-00-00 |
from US $1,085.04 |
||
|
26
|
26
6G5-45941-00-98 Propeller (3X15-1/4"x15"-M)プロペラ ; ３Ｘ１５−１／４ Ｘ１５ −Ｍ; ＵＲ |
6G5-45941-00-98 |
US $384.65 |
||
| replacement | |||||
|
26
|
26
6G5-45941-00-00 Propeller (3X15-1/4"x15"-M)プロペラ ; ３Ｘ１５−１／４ Ｘ１５ −Ｍ; ＵＲ |
6G5-45941-00-00 |
from US $368.55 |
||
|
26
|
26
6G5-45945-01-98 Propeller (3X14"x19"-M)プロペラ ; ３Ｘ１４ Ｘ１９ −Ｍ; ＵＲ |
6G5-45945-01-98 |
US $384.65 |
||
| replacement | |||||
|
26
|
26
6G5-45945-01-00 Propeller (3X14"x19"-M)プロペラ ; ３Ｘ１４ Ｘ１９ −Ｍ; ＵＲ |
6G5-45945-01-00 |
from US $368.55 |
||
|
26
|
26
6G5-45947-01-98 Propeller (3X14-1/2"x17"-M)プロペラ ; ３Ｘ１４−１／２ Ｘ１７ −Ｍ; ＵＲ |
6G5-45947-01-98 |
US $384.65 |
||
| replacement | |||||
|
26
|
26
6G5-45947-01-00 Propeller (3X14-1/2"x17"-M)プロペラ ; ３Ｘ１４−１／２ Ｘ１７ −Ｍ; ＵＲ |
6G5-45947-01-00 |
from US $368.55 |
||
|
26
|
26
6G5-45949-00-98 Propeller (3X13-1/2"x23"-M)プロペラ ; ３Ｘ１３−１／２ Ｘ２３ −Ｍ; ＵＲ |
6G5-45949-00-98 |
US $384.65 |
||
| replacement | |||||
|
26
|
26
6G5-45949-00-00 Propeller (3X13-1/2"x23"-M)プロペラ ; ３Ｘ１３−１／２ Ｘ２３ −Ｍ; ＵＲ |
6G5-45949-00-00 |
from US $368.55 |
||
|
26
|
26
6G5-45952-00-98 Propeller (3X14-5/8"x16"-M)プロペラ ; ３Ｘ１４−５／８ Ｘ１６ −Ｍ; ＵＲ |
6G5-45952-00-98 |
US $384.65 |
||
| replacement | |||||
|
26
|
26
6G5-45952-00-00 Propeller (3X14-5/8"x16"-M)プロペラ ; ３Ｘ１４−５／８ Ｘ１６ −Ｍ; ＵＲ |
6G5-45952-00-00 |
from US $368.55 |
||
|
26
|
26
6G5-45970-02-98 Propeller (3X15-1/4"x15"-M)プロペラ ; ３Ｘ１５−１／４ Ｘ１５ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45970-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45970-02-00 Propeller (3X15-1/4"x15"-M)プロペラ ; ３Ｘ１５−１／４ Ｘ１５ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45970-02-00 |
from US $1,085.04 |
||
|
26
|
26
6G5-45972-02-98 Propeller (3X13-3/4"x21"-M)プロペラ ; ３Ｘ１３−３／４ Ｘ２１ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45972-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45972-02-00 Propeller (3X13-3/4"x21"-M)プロペラ ; ３Ｘ１３−３／４ Ｘ２１ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45972-02-00 |
from US $1,030.38 |
||
|
26
|
26
6G5-45974-02-98 Propeller Assy (3 X 13-3/4" X 19"-M)プロペラ ; ３Ｘ１３−３／４ Ｘ１９ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45974-02-98 |
US $1,085.04 |
||
| replacement | |||||
|
26
|
26
6G5-45974-03-00 Propeller (3X13-3/4"x19"-M2)プロペラ ; ３Ｘ１３−３／４ Ｘ１９ −Ｍ; ＵＲ ステンレスステイールプロペラ |
6G5-45974-03-00 |
from US $1,045.86 |
||
|
27
|
27
6E5-45970-10-00 Propeller (3X14"x20"-P)プロペラ ; ３Ｘ１４ Ｘ２０ −Ｐ; ＵＲ ハイパフオーマンスプロペラ |
6E5-45970-10-00 |
from US $1,099.70 |
||
|
27
|
27
6E5-45972-10-00 Propeller (3X14"x24"-P)プロペラ ; ３Ｘ１４ Ｘ２４ −Ｐ; ＵＲ ハイパフオーマンスプロペラ |
6E5-45972-10-00 |
from US $1,099.70 |
||
|
27
|
27
6E5-45974-10-00 Propeller (3X14"x28"-P)プロペラ ; ３Ｘ１４ Ｘ２８ −Ｐ; ＵＲ ハイパフオーマンスプロペラ |
6E5-45974-10-00 |
from US $1,099.70 |
||
|
27
|
27
6E5-45976-10-00 Propeller (3X14"x22"-P)プロペラ ; ３Ｘ１４ Ｘ２２ −Ｐ; ＵＲ ハイパフオーマンスプロペラ |
6E5-45976-10-00 |
from US $1,099.70 |
||
|
27
|
27
6E5-45978-10-00 Propeller (3X14"x26"-P)プロペラ ; ３Ｘ１４ Ｘ２６ −Ｐ; ＵＲ ハイパフオーマンスプロペラ |
6E5-45978-10-00 |
from US $1,099.70 |
||
|
28
|
28
6E5-45371-10-00 Tab-Trimタブトリム; |
6E5-45371-10-00 |
from US $29.33 |
||
|
29
|
29
6E5-45994-10-00 Plate, Toothプレート，ツース; |
6E5-45994-10-00 |
from US $55.40 |
||
