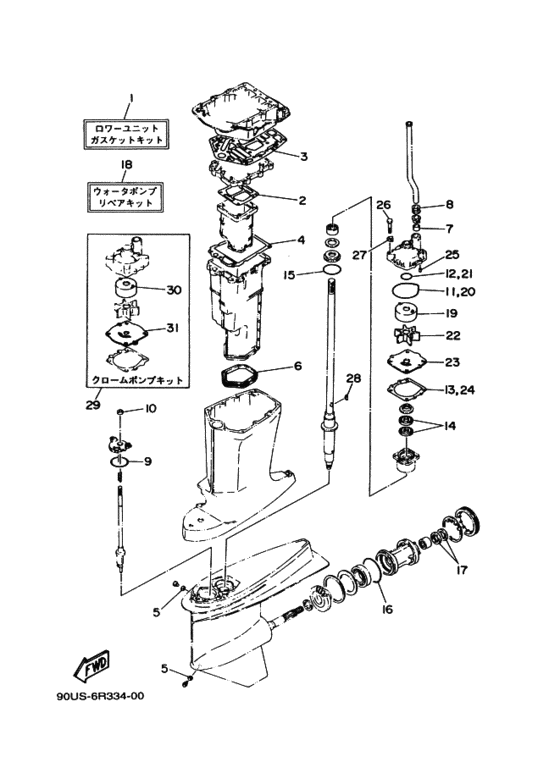

ﾘﾍﾟｱｷﾂﾄ 2 Diagram Yamaha 200 ETOL/XL
- Year
- 1995
- Model
- 200B
- Model code
- 6R4
- Year
- 1995
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 200
- Sales region
- Japan (010)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G5-W0001-21-00 Gasket Kitロワーユニツトガスケツトキツト; |
6G5-W0001-21-00 |
US $178.09 |
||
| replacements | |||||
|
1
|
1
6G5-W0001-C1-00 Lower Unit Gasket Kitロワーユニツトガスケツトキツト; |
6G5-W0001-C1-00 |
US $178.09 |
||
|
1
|
1
6G5-W0001-C2-00 LOWER UNIT GASKET KITロワーユニツトガスケツトキツト; |
6G5-W0001-C2-00 |
from US $151.48 |
||
|
2
|
2
6G5-41134-A0-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
6G5-41134-A0-00 |
US $9.35 |
||
| replacement | |||||
|
2
|
2
6G5-41134-A1-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
6G5-41134-A1-00 |
from US $9.35 |
||
|
3
|
3
6G5-45114-A0-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6G5-45114-A0-00 |
US $45.45 |
||
| replacement | |||||
|
3
|
3
6G5-45114-A1-00 Gasket, Upper Casing．ガスケツト，アツパーケーシング; |
6G5-45114-A1-00 |
from US $30.89 |
||
|
4
|
4
6E5-41135-A0-00 Gasket, Exhaust Manifold．ガスケツト，エキゾーストマニホールド; |
6E5-41135-A0-00 |
from US $7.42 |
||
|
5
|
5
904-30080-20-00 Gasket．ガスケツト; |
904-30080-20-00 |
from US $1.52 |
||
| replacement | |||||
|
5
|
5
90430-08003-00 Gasket．ガスケツト; |
90430-08003-00 |
from US $1.36 |
||
|
6
|
6
6E5-45123-00-00 Gasket, Muffler．ガスケツト，マフラ; |
6E5-45123-00-00 |
from US $20.12 |
||
|
7
|
7
6E5-44365-00-00
Damper, Water Seal 1
．ダンパ，ウオータシール; |
6E5-44365-00-00 |
— | ||
| replacement | |||||
|
7
|
7
6E5-44365-01-00 DAMPER, WATER SEAL 1．ダンパ，ウオータシール; |
6E5-44365-01-00 |
from US $2.93 |
||
|
8
|
8
6E5-44366-00-00 Damper, Water Seal 2．ダンパ，ウオータシール; |
6E5-44366-00-00 |
US $5.55 |
||
|
9
|
9
93210-58677-00 O-Ring．Ｏ−リング; |
93210-58677-00 |
from US $3.04 |
||
|
10
|
10
931-06090-14-00 Oil Seal．オイルシール; |
931-06090-14-00 |
from US $3.13 |
||
|
11
|
11
93210-86M38-00 O-Ring．Ｏ−リング; |
93210-86M38-00 |
from US $8.08 |
||
|
12
|
12
93210-37M67-00 O-Ring (6G8)．Ｏ−リング; |
93210-37M67-00 |
from US $2.77 |
||
|
13
|
13
6E5-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
6E5-44315-A0-00 |
from US $4.99 |
||
|
14
|
14
931-0128M-16-00 Oil Seal．オイルシール; |
931-0128M-16-00 |
from US $7.42 |
||
|
15
|
15
932-10545-34-00 O-Ring．Ｏ−リング; |
932-10545-34-00 |
from US $2.77 |
||
|
16
|
16
93210-97M55-00 O-Ring．Ｏ−リング; |
93210-97M55-00 |
from US $9.57 |
||
|
17
|
17
931-0130M-17-00 Oil Seal．オイルシール; |
931-0130M-17-00 |
from US $6.74 |
||
|
18
|
18
61A-W0078-01-00 Water Pump Repair Kitウオータポンプリペアキツト; |
61A-W0078-01-00 |
US $191.49 |
||
| replacement | |||||
|
18
|
18
61A-W0078-A1-00 Water Pump Rerair Kitウオータポンプリペアキツト; |
61A-W0078-A1-00 |
from US $150.35 |
||
|
19
|
19
61A-44322-00-00 Insert, Cartridge．インサート，カートリツジ; |
61A-44322-00-00 |
from US $25.26 |
||
|
20
|
20
93210-86M38-00 O-Ring．Ｏ−リング; |
93210-86M38-00 |
from US $8.08 |
||
|
21
|
21
93210-37M67-00 O-Ring (6G8)．Ｏ−リング; |
93210-37M67-00 |
from US $2.77 |
||
|
22
|
22
6E5-44352-00-00 Impeller．インペラ; |
6E5-44352-00-00 |
US $48.63 |
||
| replacement | |||||
|
22
|
22
6E5-44352-01-00 Impeller．インペラ; |
6E5-44352-01-00 |
from US $42.23 |
||
|
23
|
23
6G5-44323-00-00
Outer Plate, Cartridge
．アウタプレート，カートリツジ; |
6G5-44323-00-00 |
— | ||
| replacement | |||||
|
23
|
23
6G5-44323-01-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
6G5-44323-01-00 |
from US $16.09 |
||
|
24
|
24
6E5-44315-A0-00 Gasket, Water Pump．ガスケツト，ウオータポンプ; |
6E5-44315-A0-00 |
from US $4.99 |
||
|
25
|
25
936-06120-19-00 Pin, Dowel．ピン，ダウエル; |
936-06120-19-00 |
from US $2.86 |
||
|
26
|
26
97395-08045-00 Bolt．ボルト; |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
26
|
26
97080-08045-00 Bolt, Hexagon．ボルト; |
97080-08045-00 |
from US $4.25 |
||
|
26
|
26
97095-08045-00 Bolt．ボルト; |
97095-08045-00 |
from US $1.56 |
||
|
27
|
27
90209-08M02-00 Washer．ワツシヤ; |
90209-08M02-00 |
from US $3.83 |
||
|
28
|
28
90280-04M05-00 Key, Woodruff．キー，ウツドラフ; |
90280-04M05-00 |
from US $10.78 |
||
|
29
|
29
61A-W0078-0A-00 Chrome Pump Kitクロームポンプキツト; ＡＰ |
61A-W0078-0A-00 |
from US $149.07 |
||
|
30
|
30
6R3-44322-40-00 Insert, Cartridge．インサート，カートリツジ; |
6R3-44322-40-00 |
from US $102.51 |
||
|
31
|
31
6G5-44323-40-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
6G5-44323-40-00 |
US $46.56 |
||
| replacement | |||||
|
31
|
31
6G5-44323-41-00 Outer Plate, Cartridge．アウタプレート，カートリツジ; |
6G5-44323-41-00 |
from US $46.56 |
||
