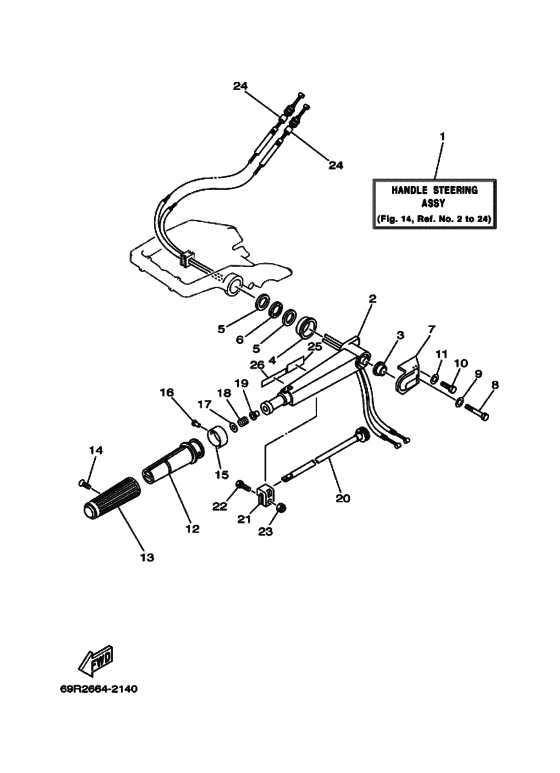

Steering Diagram Yamaha 25 MHS/L
- Year
- 2002
- Model
- 25B
- Model code
- 69R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (160)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69P-W0084-00-4D Handle Steering Assy |
69P-W0084-00-4D |
US $320.53 |
||
| replacement | |||||
|
1
|
1
69P-W0084-01-4D Handle Steering Assy |
69P-W0084-01-4D |
US $320.53 |
||
|
2
|
2
689-42111-01-4D Handle, Steering |
689-42111-01-4D |
US $79.72 |
||
| replacement | |||||
|
2
|
2
689-42111-01-8D HANDLE, STEERING |
689-42111-01-8D |
from US $76.84 |
||
|
3
|
3
90387-13003-00 Collar |
90387-13003-00 |
from US $2.70 |
||
|
4
|
4
90387-33001-00 Collar |
90387-33001-00 |
from US $3.72 |
||
|
5
|
5
90201-28013-00 Washer, Plate |
90201-28013-00 |
US $2.69 |
||
|
6
|
6
90206-28001-00 Washer, Wave |
90206-28001-00 |
US $5.53 |
||
|
7
|
7
69P-42112-00-4D Handle, Steering |
69P-42112-00-4D |
US $87.04 |
||
|
8
|
8
97095-06050-00 Bolt |
97095-06050-00 |
US $1.28 |
||
| replacement | |||||
|
8
|
8
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
9
|
9
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
9
|
9
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
10
|
10
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
11
|
11
929-95066-00-00
Washer, Plate
|
929-95066-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
12
|
12
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
13
|
13
6F6-42177-A0-00
Rubber, Handle
|
6F6-42177-A0-00 |
— | ||
| replacements | |||||
|
13
|
13
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
|
13
|
13
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
14
|
14
901-4905M-13-00
Screw
|
901-4905M-13-00 |
— | ||
| replacement | |||||
|
14
|
14
901-52050-11-00 Screw, Countersunk |
901-52050-11-00 |
from US $1.52 |
||
|
15
|
15
6G1-42137-10-00 Indicator, Throttle |
6G1-42137-10-00 |
US $4.82 |
||
| replacement | |||||
|
15
|
15
6G1-42137-20-00 Indicator, Throttle |
6G1-42137-20-00 |
from US $4.82 |
||
|
16
|
16
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
17
|
17
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
18
|
18
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
19
|
19
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
20
|
20
689-42138-00-00 Lever, Throttle |
689-42138-00-00 |
from US $15.16 |
||
|
21
|
21
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
22
|
22
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
23
|
23
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
|
24
|
24
61N-26311-00-00 Cable, Throttle 1 |
61N-26311-00-00 |
US $15.87 |
||
| replacement | |||||
|
24
|
24
61N-26311-01-00 Cable, Throttle 1 |
61N-26311-01-00 |
from US $15.87 |
||
|
25
|
25
6E0-83627-51-00 Label, Caution 7 |
6E0-83627-51-00 |
US $3.67 |
||
|
25
|
25
61T-83627-80-00 Label, Caution 7FOR VOLGA |
61T-83627-80-00 |
US $3.82 |
||
|
26
|
26
6E0-83627-41-00 Label, Caution 7 |
6E0-83627-41-00 |
from US $6.66 |
||
