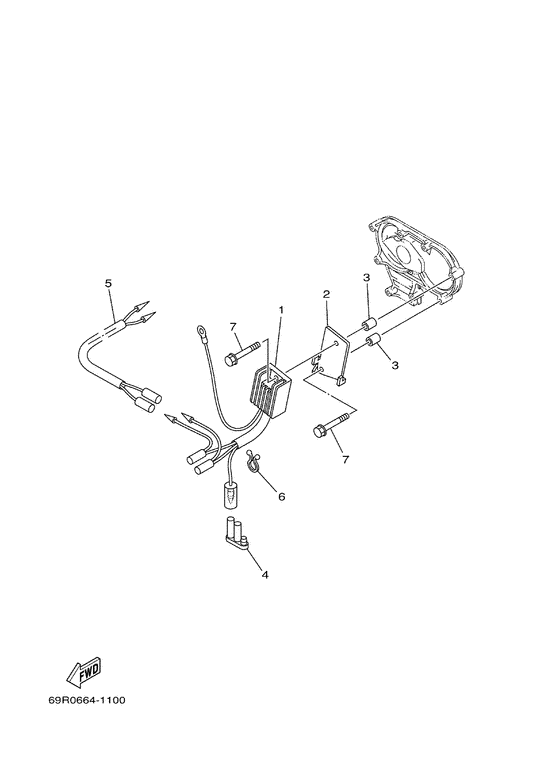

Electrical 2 Diagram Yamaha 25 MHS/L
- Year
- 2007
- Model
- 25B
- Model code
- 69R
- Year
- 2007
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (260)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
6J8-81960-00-00 Rectifier & Regulator Assy |
6J8-81960-00-00 |
from US $109.15 |
||
|
02
|
02
69R-81915-00-00 Plate, Regulator Fitting |
69R-81915-00-00 |
US $16.29 |
||
|
03
|
03
90387-06504-00 Collar |
90387-06504-00 |
from US $4.39 |
||
|
04
|
04
6E5-82582-00-00 Cover, Wire Harness |
6E5-82582-00-00 |
from US $4.53 |
||
|
05
|
05
69R-82553-00-00 Extension, Wire Lead |
69R-82553-00-00 |
US $17.28 |
||
|
06
|
06
904-6408M-07-00
Clamp
|
904-6408M-07-00 |
— | ||
| replacement | |||||
|
06
|
06
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
07
|
07
90119-06026-00
Bolt, With Washer
|
90119-06026-00 |
— | ||
