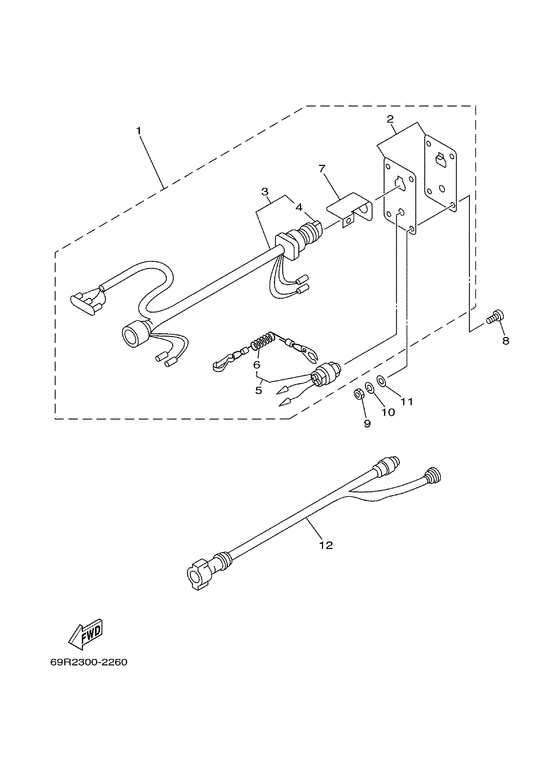

Switch. panel Diagram Yamaha 25 WHS/L
- Year
- 2002
- Model
- 25B
- Model code
- 69R
- Year
- 2002
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Russia (230)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-82570-1A-00 Panel Switch AssyAp |
689-82570-1A-00 |
US $465.12 |
||
| replacements | |||||
|
01
|
01
689-82570-1C-00 Switch :obAp |
689-82570-1C-00 |
US $286.85 |
||
|
01
|
01
689-82570-1D-00 Panel Switch AssyAp |
689-82570-1D-00 |
US $376.65 |
||
|
02
|
02
704-82571-01-00 Panel, Switch |
704-82571-01-00 |
US $54.99 |
||
| replacement | |||||
|
02
|
02
704-82571-02-00 Panel, Switch |
704-82571-02-00 |
from US $54.99 |
||
|
03
|
03
689-82510-04-00 Main Switch Assy |
689-82510-04-00 |
from US $193.42 |
||
|
04
|
04
703-82577-00-00 Cap, Key |
703-82577-00-00 |
from US $5.81 |
||
|
05
|
05
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
05
|
05
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
06
|
06
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
07
|
07
64D-82581-00-00 Stay, Cord Clamp |
64D-82581-00-00 |
from US $14.03 |
||
|
08
|
08
90149-05M05-00 ScrewAp |
90149-05M05-00 |
from US $1.84 |
||
|
09
|
09
95380-05600-00 NutAp |
95380-05600-00 |
from US $1.42 |
||
|
10
|
10
92990-05100-00 Washer, SpringAp |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
92990-05600-00 Washer, PlateAp |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
688-82586-50-00 Extension, Wire Harness (5M)Ap l:5m(7p) |
688-82586-50-00 |
US $215.53 |
||
