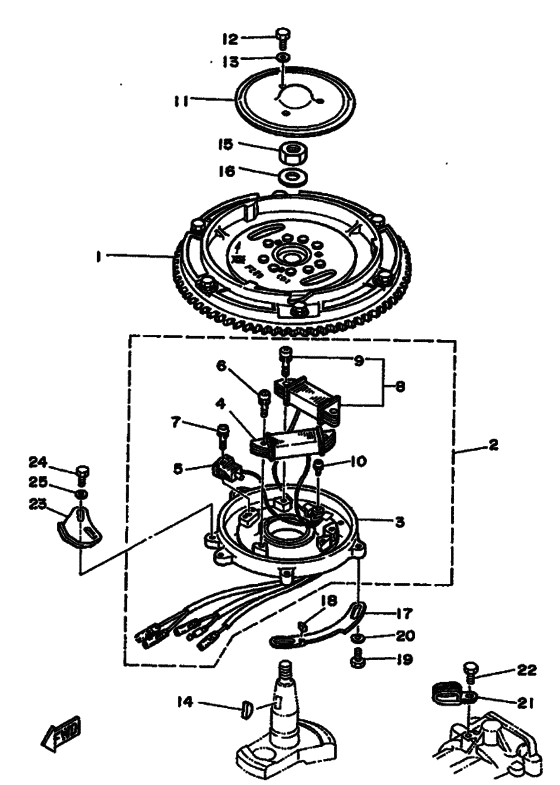

Magneto Diagram Yamaha 25 (E)MHS/L
- Year
- 1990
- Model
- 25D
- Model code
- 695
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Solid 1 (DBGS1; 001D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-85550-40-00
Rotor Assembly
|
695-85550-40-00 |
— | ||
|
2
|
2
695-85560-A0-00
Base Assembly
|
695-85560-A0-00 |
— | ||
|
3
|
3
695-85561-70-00
Base, Magneto
|
695-85561-70-00 |
— | ||
|
4
|
4
695-85520-70-00 Coil, Charge |
695-85520-70-00 |
from US $227.61 |
||
|
5
|
5
695-85580-70-00
Coil, Pulser
|
695-85580-70-00 |
— | ||
|
6
|
6
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
7
|
7
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
8
|
8
695-81303-A0-00
Lighting Coil Assembly
|
695-81303-A0-00 |
— | ||
|
9
|
9
90159-05040-00 Screw, With Washer |
90159-05040-00 |
from US $1.98 |
||
| replacement | |||||
|
9
|
9
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
10
|
10
90159-04035-00
Screw, With Washer
|
90159-04035-00 |
— | ||
|
11
|
11
648-81362-00-00 Cover, Hole |
648-81362-00-00 |
from US $13.52 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
14
|
14
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
14
|
14
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
15
|
15
90179-12M04-00 Nut |
90179-12M04-00 |
from US $12.80 |
||
|
16
|
16
90201-13M42-00 Washer, Plate |
90201-13M42-00 |
from US $4.11 |
||
|
17
|
17
695-41615-00-00
Stopper, Magneto Base
|
695-41615-00-00 |
— | ||
|
18
|
18
695-44194-00-00 Cap |
695-44194-00-00 |
from US $7.08 |
||
|
19
|
19
97016-06012-00 Bolt |
97016-06012-00 |
from US $1.21 |
||
| replacements | |||||
|
19
|
19
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.36 |
||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
21
|
21
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
|
22
|
22
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
22
|
22
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
23
|
23
695-41213-00-94
Cam, Accel
|
695-41213-00-94 |
— | ||
|
24
|
24
973-95050-12-00
Bolt (6G8)
|
973-95050-12-00 |
— | ||
| replacement | |||||
|
24
|
24
97095-05012-00 Bolt |
97095-05012-00 |
from US $1.55 |
||
|
25
|
25
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
