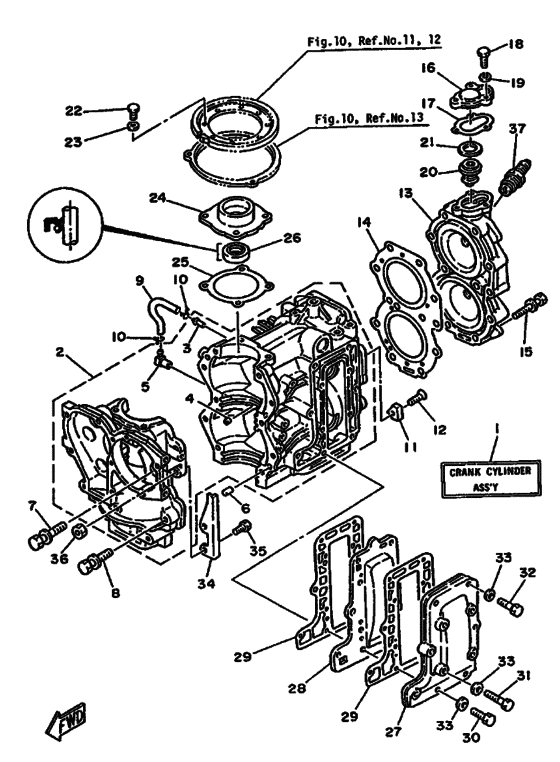

Cylinder & crankcase Diagram Yamaha 25 (E)MHS/L
- Year
- 1987
- Model
- 25D
- Model code
- 695
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-W0090-82-EJ
Crank Cylinder Assy
|
695-W0090-82-EJ |
— | ||
| replacements | |||||
|
1
|
1
695-W0090-84-EJ
Crank-Cyl.asy
|
695-W0090-84-EJ |
— | ||
|
1
|
1
695-W0090-84-1S
Crank Cylinder Assy
|
695-W0090-84-1S |
— | ||
|
2
|
2
695-15100-02-94
Crankcase Assembly
|
695-15100-02-94 |
— | ||
| replacement | |||||
|
2
|
2
695-15100-02-00
LEVER, THROTTLE CONT
|
695-15100-02-00 |
— | ||
|
3
|
3
624-14485-00-00 Pipe, Joint |
624-14485-00-00 |
from US $5.24 |
||
|
4
|
4
624-11379-00-00 Valve, Check |
624-11379-00-00 |
from US $3.72 |
||
|
5
|
5
650-11370-00-00
Check Valve Assy
|
650-11370-00-00 |
— | ||
| replacement | |||||
|
5
|
5
650-11370-01-00 Check Valve Assy |
650-11370-01-00 |
from US $15.16 |
||
|
6
|
6
936-06120-19-00 Pin, Dowel |
936-06120-19-00 |
from US $2.86 |
||
|
7
|
7
901-1908M-18-00
Boulon, Avec Rondelle
|
901-1908M-18-00 |
— | ||
| replacement | |||||
|
7
|
7
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
8
|
8
901-1908M-20-00
Boulon, Avec Rondelle
|
901-1908M-20-00 |
— | ||
| replacement | |||||
|
8
|
8
90119-08M66-00 Bolt, With Washer |
90119-08M66-00 |
from US $5.22 |
||
|
9
|
9
90445-07260-00 Hose (L276) |
90445-07260-00 |
US $4.25 |
||
| replacement | |||||
|
9
|
9
904-4507M-90-00 Hose (L390) |
904-4507M-90-00 |
from US $4.25 |
||
|
10
|
10
90467-06016-00 Clip |
90467-06016-00 |
from US $2.55 |
||
|
11
|
11
689-11325-00-00 Anode |
689-11325-00-00 |
from US $8.78 |
||
|
12
|
12
927-80060-20-00
Screw, Flat Head
|
927-80060-20-00 |
— | ||
| replacement | |||||
|
12
|
12
98780-06020-00 Screw Flat Head |
98780-06020-00 |
from US $3.40 |
||
|
13
|
13
695-11111-01-94 Head, Cylinder 1 |
695-11111-01-94 |
US $276.81 |
||
| replacement | |||||
|
13
|
13
695-11111-01-1S Head, Cylinder 1 |
695-11111-01-1S |
from US $276.81 |
||
|
14
|
14
695-11181-00-00 Gasket, Cylinder Head 1 |
695-11181-00-00 |
US $74.74 |
||
| replacement | |||||
|
14
|
14
695-11181-A1-00 Gasket, Cylinder Head 1 |
695-11181-A1-00 |
from US $41.62 |
||
|
15
|
15
901-1908M-18-00
Boulon, Avec Rondelle
|
901-1908M-18-00 |
— | ||
| replacement | |||||
|
15
|
15
90119-08009-00 Bolt, With Washer |
90119-08009-00 |
from US $3.54 |
||
|
16
|
16
655-12413-01-9M Cover, Thermostat |
655-12413-01-9M |
US $31.45 |
||
| replacement | |||||
|
16
|
16
655-12413-01-1S Cover, Thermostat |
655-12413-01-1S |
from US $26.73 |
||
|
17
|
17
655-12414-00-00 Gasket, Cover |
655-12414-00-00 |
US $3.83 |
||
| replacement | |||||
|
17
|
17
655-12414-A1-00 Gasket, Cover |
655-12414-A1-00 |
from US $3.72 |
||
|
18
|
18
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
18
|
18
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
19
|
19
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
20
|
20
6F5-12411-01-00 Thermostat |
6F5-12411-01-00 |
US $50.01 |
||
| replacement | |||||
|
20
|
20
6F5-12411-03-00 Thermostat |
6F5-12411-03-00 |
from US $50.01 |
||
|
21
|
21
90201-21567-00 Washer, Plate |
90201-21567-00 |
from US $6.52 |
||
|
22
|
22
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
23
|
23
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
664-15359-01-94
Housing, Oil Seal
|
664-15359-01-94 |
— | ||
|
25
|
25
664-15369-00-00 Gasket, O/sl Hsng |
664-15369-00-00 |
US $5.95 |
||
| replacement | |||||
|
25
|
25
664-15369-A0-00 Gasket, Oil Seal Housing |
664-15369-A0-00 |
from US $5.95 |
||
|
26
|
26
931-02230-96-00 Oil Seal |
931-02230-96-00 |
from US $15.26 |
||
|
27
|
27
664-41113-00-94 Outer Cover, Exhaust |
664-41113-00-94 |
US $142.30 |
||
| replacement | |||||
|
27
|
27
664-41113-00-1S Outer Cover, Exhaust |
664-41113-00-1S |
from US $76.84 |
||
|
28
|
28
664-41111-00-00 Inner Cover, Exhaust |
664-41111-00-00 |
from US $80.27 |
||
|
29
|
29
664-41114-00-00 Gasket, Exhaust Outer Cover |
664-41114-00-00 |
US $23.09 |
||
| replacement | |||||
|
29
|
29
664-41114-A0-00 Gasket, Exhaust Outer Cover |
664-41114-A0-00 |
from US $14.58 |
||
|
30
|
30
973-95060-25-00
Bolt (682)
|
973-95060-25-00 |
— | ||
| replacement | |||||
|
30
|
30
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
31
|
31
97395-06030-00 Bolt (6A1) |
97395-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
31
|
31
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
32
|
32
973-95060-35-00
Bolt, Hexagon
|
973-95060-35-00 |
— | ||
| replacement | |||||
|
32
|
32
97080-06035-00 Bolt(J52) |
97080-06035-00 |
from US $2.02 |
||
|
33
|
33
929-03066-00-00
Washer, Plate
|
929-03066-00-00 |
— | ||
| replacement | |||||
|
33
|
33
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
34
|
34
695-41616-00-00 Stopper, Magneto BaseStopper, magneto base 2 |
695-41616-00-00 |
from US $11.75 |
||
|
35
|
35
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
35
|
35
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
36
|
36
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
37
|
37
94702-00272-00 Plug, Spark (Ngk Br7Hs) |
94702-00272-00 |
US $7.76 |
||
| replacement | |||||
|
37
|
37
947-01001-10-00 Plug, Spark (Br7Hs) |
947-01001-10-00 |
US $7.08 |
||
