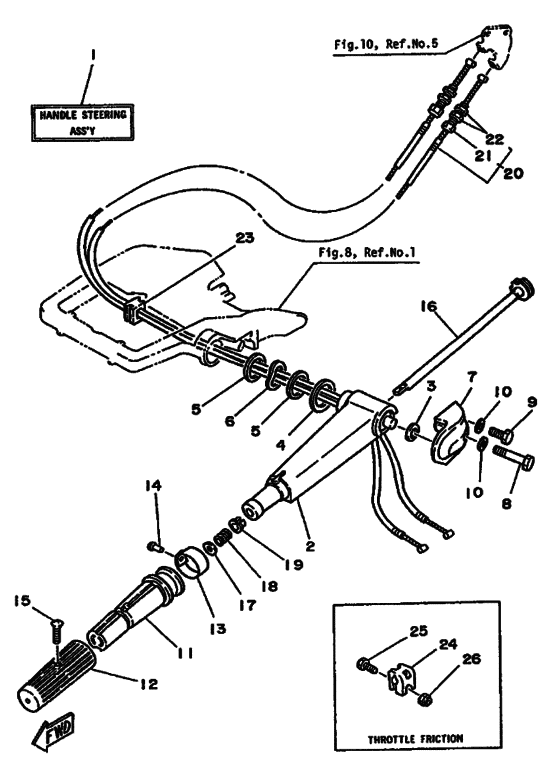

Steering Diagram Yamaha 25 (E)MHS/L
- Year
- 1987
- Model
- 25D
- Model code
- 695
- Year
- 1987
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-W0084-01-EJ
Handle Steering Assy
|
695-W0084-01-EJ |
— | ||
|
2
|
2
694-42111-00-EJ Handle, Steering |
694-42111-00-EJ |
US $74.73 |
||
|
3
|
3
90560-14076-00 Entretoise |
90560-14076-00 |
US $5.14 |
||
|
4
|
4
90202-34043-00 Rondelle, Plate |
90202-34043-00 |
US $4.04 |
||
|
5
|
5
90201-28M28-00
Washer, Plate
|
90201-28M28-00 |
— | ||
| replacement | |||||
|
5
|
5
90201-28M00-00
Rondelle, Plate
|
90201-28M00-00 |
— | ||
|
6
|
6
90206-28M07-00 Rondelle, Ondulee |
90206-28M07-00 |
US $4.56 |
||
|
7
|
7
689-42112-00-EJ
Steering Handle 2
|
689-42112-00-EJ |
— | ||
| replacement | |||||
|
7
|
7
689-WS421-01-EJ
Handle, Steering
|
689-WS421-01-EJ |
— | ||
|
8
|
8
973-95060-50-00
Bolt
|
973-95060-50-00 |
— | ||
| replacement | |||||
|
8
|
8
970-80060-50-00 Bolt |
970-80060-50-00 |
from US $3.26 |
||
|
9
|
9
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
664-42119-00-00 Grip, Steering Handle |
664-42119-00-00 |
from US $21.22 |
||
|
12
|
12
6G1-42177-00-00
Rubber, Handle
|
6G1-42177-00-00 |
— | ||
| replacement | |||||
|
12
|
12
6G1-42177-01-00 RUBBER, HANDLE |
6G1-42177-01-00 |
from US $11.76 |
||
|
13
|
13
695-42137-03-00
Indicator, Throttle
|
695-42137-03-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
902-69020-01-00
Rivet
|
902-69020-01-00 |
— | ||
| replacement | |||||
|
14
|
14
90269-02M09-00 Rivet |
90269-02M09-00 |
from US $2.22 |
||
|
15
|
15
98680-05525-00 Screw.oval Head |
98680-05525-00 |
from US $2.55 |
||
| replacement | |||||
|
15
|
15
987-80055-25-00 Screw, Flat Head |
987-80055-25-00 |
from US $2.69 |
||
|
16
|
16
689-42138-00-00 Lever, Throttle |
689-42138-00-00 |
from US $15.16 |
||
|
17
|
17
92903-10600-00 Washer, Plate |
92903-10600-00 |
US $1.07 |
||
| replacement | |||||
|
17
|
17
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
18
|
18
90501-23215-00 Spring, Compression |
90501-23215-00 |
from US $3.40 |
||
|
19
|
19
90386-08032-00 Bush |
90386-08032-00 |
from US $2.13 |
||
|
20
|
20
689-26311-03-00 Cable, Throttle 1 |
689-26311-03-00 |
US $34 |
||
| replacement | |||||
|
20
|
20
6J0-26311-02-00 Cable, Throttle 1 |
6J0-26311-02-00 |
from US $34 |
||
|
21
|
21
90123-06M00-00 Bolt(6A9) |
90123-06M00-00 |
from US $2.50 |
||
|
22
|
22
90170-06183-00 Ecrou |
90170-06183-00 |
from US $2.98 |
||
|
23
|
23
90480-12156-00 Grommet |
90480-12156-00 |
US $3.44 |
||
|
24
|
24
656-42126-01-00 Friction, Steering Handle Grip |
656-42126-01-00 |
from US $12.33 |
||
|
25
|
25
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
25
|
25
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
26
|
26
90185-06062-00 Nut, Self-Locking |
90185-06062-00 |
from US $2.69 |
||
