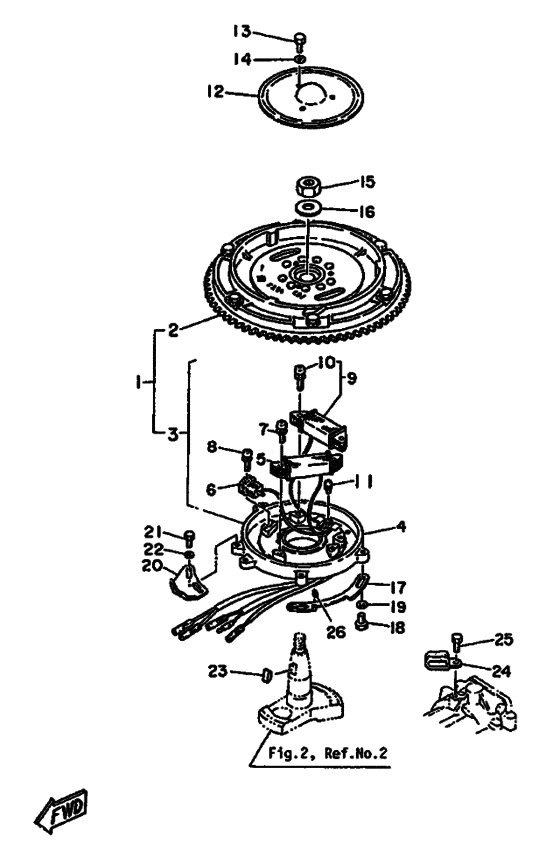

Magneto Diagram Yamaha 25 (E)MHS/L
- Year
- 1986
- Model
- 25D
- Model code
- 695
- Year
- 1986
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
695-85500-A0-00
C.d.i. Magneto Assy
|
695-85500-A0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
695-85550-40-00
Rotor Assembly
|
695-85550-40-00 |
— | ||
|
3
|
3
695-85560-A0-00
Base Assembly
|
695-85560-A0-00 |
— | ||
|
4
|
4
695-85561-70-00
Base, Magneto
|
695-85561-70-00 |
— | ||
|
5
|
5
695-85520-70-00 Coil, Charge |
695-85520-70-00 |
from US $227.61 |
||
|
6
|
6
695-85580-70-00
Coil, Pulser
|
695-85580-70-00 |
— | ||
|
7
|
7
90159-05039-00 Screw, W/washer |
90159-05039-00 |
from US $2.13 |
||
|
8
|
8
90159-05038-00
Screw, With Washer
|
90159-05038-00 |
— | ||
| replacement | |||||
|
8
|
8
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
9
|
9
695-81303-A0-00
Lighting Coil Assembly
|
695-81303-A0-00 |
— | ||
|
10
|
10
90159-05040-00 Screw, With Washer |
90159-05040-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
11
|
11
90159-04035-00
Screw, With Washer
|
90159-04035-00 |
— | ||
|
12
|
12
648-81362-01-00 Cover, Hole |
648-81362-01-00 |
US $13.52 |
||
| replacement | |||||
|
12
|
12
648-81362-00-00 Cover, Hole |
648-81362-00-00 |
from US $13.52 |
||
|
13
|
13
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
14
|
14
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
15
|
15
90170-12M04-00
Nut
|
90170-12M04-00 |
— | ||
|
16
|
16
90201-13M42-00 Washer, Plate |
90201-13M42-00 |
from US $4.11 |
||
|
17
|
17
695-41615-00-00
Stopper, Magneto Base
|
695-41615-00-00 |
— | ||
|
18
|
18
97313-06012-00 Bolt |
97313-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
18
|
18
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
18
|
18
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
19
|
19
92903-06200-00 Washer, Plain |
92903-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
20
|
20
695-41213-00-94
Cam, Accel
|
695-41213-00-94 |
— | ||
|
21
|
21
97313-05012-00 Bolt, Hexagon |
97313-05012-00 |
from US $1.53 |
||
| replacement | |||||
|
21
|
21
97013-05012-00 Bolt |
97013-05012-00 |
from US $1.57 |
||
|
22
|
22
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
22
|
22
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
23
|
23
902-80050-13-00
Key, Woodruff
|
902-80050-13-00 |
— | ||
| replacement | |||||
|
23
|
23
90280-05001-00 Key, Woodruff |
90280-05001-00 |
from US $9.15 |
||
|
24
|
24
90461-06M01-00 Clamp |
90461-06M01-00 |
from US $5.95 |
||
|
25
|
25
97313-06010-00 Bolt, Hexagon |
97313-06010-00 |
from US $1.15 |
||
| replacement | |||||
|
25
|
25
97085-06010-00 Bolt |
97085-06010-00 |
from US $1.28 |
||
|
26
|
26
695-44194-00-00 Cap |
695-44194-00-00 |
from US $7.08 |
||
