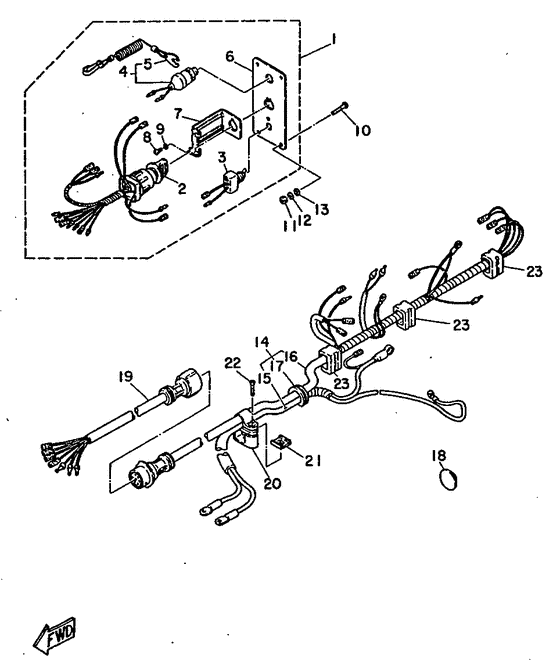

Switch panel (25DE MODEL) Diagram Yamaha 25 (E)MHS/L
- Year
- 1985
- Model
- 25D
- Model code
- 695
- Year
- 1985
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (General) (999)
- Colour
- White (WW; 0036)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
689-82570-13-00
Panel Switch Assy
|
689-82570-13-00 |
— | ||
| replacement | |||||
|
01
|
01
689-82570-14-00 Panel Switch Assy |
689-82570-14-00 |
US $286.85 |
||
|
02
|
02
688-82510-11-00 Main Switch Assy |
688-82510-11-00 |
US $125.86 |
||
| replacement | |||||
|
02
|
02
688-82510-13-00 Main Switch Assy |
688-82510-13-00 |
from US $103.69 |
||
|
03
|
03
688-82574-00-00 Switch, Choke |
688-82574-00-00 |
US $51.40 |
||
| replacement | |||||
|
03
|
03
6K1-82574-00-00 Switch, Choke |
6K1-82574-00-00 |
from US $51.40 |
||
|
04
|
04
688-82575-01-00 Engine Stop Switch Assy |
688-82575-01-00 |
US $56.78 |
||
| replacement | |||||
|
04
|
04
688-82575-02-00 Engine Stop Switch Assy |
688-82575-02-00 |
from US $46.58 |
||
|
05
|
05
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
06
|
06
689-82571-01-00 Panel, Switch |
689-82571-01-00 |
US $28.64 |
||
| replacement | |||||
|
06
|
06
689-82571-02-00 Panel, Switch |
689-82571-02-00 |
US $28.64 |
||
|
07
|
07
663-82581-01-00 Stay, Cord Clamp |
663-82581-01-00 |
from US $14.45 |
||
|
08
|
08
98303-04008-00 Screw, Cylinder Head |
98303-04008-00 |
from US $1.21 |
||
| replacement | |||||
|
08
|
08
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
09
|
09
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
09
|
09
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
10
|
10
98903-05025-00 Screw, Bind |
98903-05025-00 |
from US $1.21 |
||
|
11
|
11
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
12
|
12
92903-05100-00 Washer, Spring |
92903-05100-00 |
US $1.21 |
||
| replacement | |||||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
929-03056-00-00
Washer, Plate
|
929-03056-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
695-82580-13-00 Wire Harness Assy 2 |
695-82580-13-00 |
US $304.76 |
||
| replacement | |||||
|
14
|
14
695-82580-14-00
Wire Harness Assembly 2
|
695-82580-14-00 |
— | ||
|
15
|
15
695-82105-12-00 Battery Cable |
695-82105-12-00 |
US $161.65 |
||
| replacements | |||||
|
15
|
15
66T-82105-J1-00 Battery Cable |
66T-82105-J1-00 |
US $161.65 |
||
|
15
|
15
66T-82105-J2-00 Battery Cable |
66T-82105-J2-00 |
from US $160.05 |
||
|
16
|
16
689-82590-11-00
Wire Harness Assembly
|
689-82590-11-00 |
— | ||
|
17
|
17
689-42724-50-00 Grommet |
689-42724-50-00 |
US $7.93 |
||
|
18
|
18
90480-17165-00 Grommet |
90480-17165-00 |
from US $4.11 |
||
|
19
|
19
688-82586-21-00 Extension, Wire Harness (49M |
688-82586-21-00 |
from US $136.08 |
||
|
20
|
20
689-82594-10-00 Clamp |
689-82594-10-00 |
from US $6.52 |
||
|
21
|
21
682-42525-00-00 Plate, Friction 1 |
682-42525-00-00 |
from US $4.68 |
||
|
22
|
22
90161-06M00-00 Screw, Tapping |
90161-06M00-00 |
US $2.55 |
||
| replacement | |||||
|
22
|
22
90161-06M03-00 Screw, Tapping(6E7) |
90161-06M03-00 |
from US $2.55 |
||
|
23
|
23
90480-17M08-00 Grommet |
90480-17M08-00 |
from US $7.37 |
||
