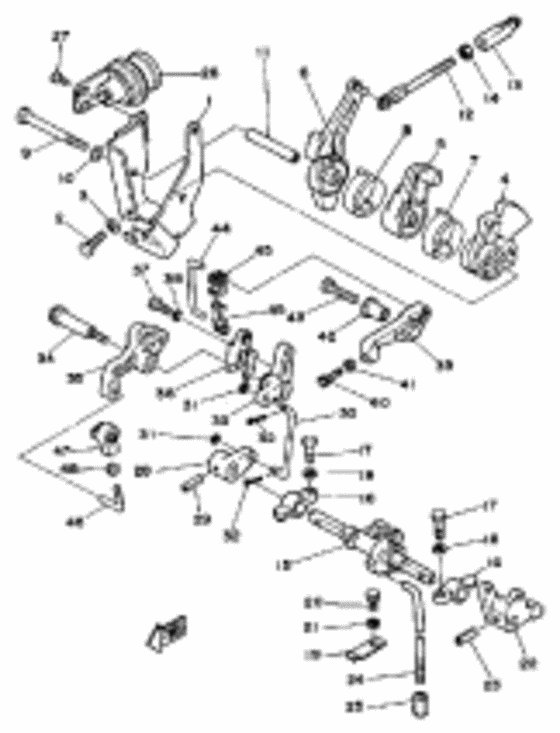

Control engine Diagram Yamaha 25 ES/L
- Year
- 1990
- Model
- 25
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-14497-00-00 Stay, Throttle Wire |
6L2-14497-00-00 |
from US $18.99 |
||
|
2
|
2
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
2
|
2
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
3
|
3
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
3
|
3
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
4
|
4
6L2-41213-00-00 Cam, Accel |
6L2-41213-00-00 |
from US $26.93 |
||
|
5
|
5
6L2-41283-00-00 Lever, Free Accel |
6L2-41283-00-00 |
from US $15.58 |
||
|
6
|
6
6L2-41631-00-00 Lever, Magneto Control |
6L2-41631-00-00 |
from US $24.71 |
||
|
7
|
7
6J8-42167-00-00 Spring 1 |
6J8-42167-00-00 |
from US $18.42 |
||
|
8
|
8
6L2-42167-00-00 Spring 1 |
6L2-42167-00-00 |
from US $18.14 |
||
|
9
|
9
97395-06075-00
Boulon
|
97395-06075-00 |
— | ||
| replacements | |||||
|
9
|
9
97575-06575-00 Bolt, With Washer |
97575-06575-00 |
US $1.70 |
||
|
9
|
9
97E75-06575-00 Bolt, Hexagon W/w Deep Recess |
97E75-06575-00 |
from US $1.70 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
11
|
11
90387-06M18-00 Collar |
90387-06M18-00 |
from US $9.92 |
||
|
12
|
12
689-42169-01-00 Joint |
689-42169-01-00 |
from US $11.48 |
||
|
13
|
13
6H1-41237-00-00 Joint, Link |
6H1-41237-00-00 |
from US $5.82 |
||
|
14
|
14
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
15
|
15
6L2-44121-00-00 Lever, Shift Rod |
6L2-44121-00-00 |
from US $18.32 |
||
|
16
|
16
6G1-41662-01-94 Bracket 2 |
6G1-41662-01-94 |
from US $11.23 |
||
|
17
|
17
973-13060-20-00
Bolt, Hexagon
|
973-13060-20-00 |
— | ||
| replacement | |||||
|
17
|
17
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
19
|
19
6G1-44116-01-00 Spring |
6G1-44116-01-00 |
from US $7.93 |
||
|
20
|
20
973-95060-12-00
Bolt
|
973-95060-12-00 |
— | ||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
22
|
22
6L2-44123-00-00 Arm, Shift Rod |
6L2-44123-00-00 |
from US $7.23 |
||
|
23
|
23
91690-30318-00 Goupille, Elastique |
91690-30318-00 |
US $2.69 |
||
| replacement | |||||
|
23
|
23
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
24
|
24
6L2-44143-00-00 Rod, Shift |
6L2-44143-00-00 |
from US $19.33 |
||
|
25
|
25
90170-06015-00 Nut |
90170-06015-00 |
US $9.78 |
||
| replacement | |||||
|
25
|
25
61N-44146-00-00 Connector, Shift Rod 2 |
61N-44146-00-00 |
from US $9.78 |
||
|
26
|
26
6L2-14368-00-00 Diaphragm Assy 1 |
6L2-14368-00-00 |
from US $158.88 |
||
|
27
|
27
97313-06008-00 Bolt, Hexagon |
97313-06008-00 |
US $1.56 |
||
| replacement | |||||
|
27
|
27
97080-06008-00 Bolt, Hex |
97080-06008-00 |
from US $1.56 |
||
|
28
|
28
6L2-44122-00-00 Bushing, Shift Rod Lever |
6L2-44122-00-00 |
from US $16.01 |
||
|
29
|
29
91690-30318-00 Goupille, Elastique |
91690-30318-00 |
US $2.69 |
||
| replacement | |||||
|
29
|
29
90254-03M04-00 Pin, Spring |
90254-03M04-00 |
from US $2.69 |
||
|
30
|
30
6L2-42192-00-00 Rod 2 |
6L2-42192-00-00 |
from US $11.93 |
||
|
31
|
31
90202-05088-00 Washer, Plate |
90202-05088-00 |
from US $1.70 |
||
|
32
|
32
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
33
|
33
6L2-44141-01-00 Link, Shift Rod |
6L2-44141-01-00 |
US $19.98 |
||
| replacement | |||||
|
33
|
33
6L2-44141-02-00 Link, Shift Rod |
6L2-44141-02-00 |
from US $18.43 |
||
|
34
|
34
90109-06M28-00 Bolt |
90109-06M28-00 |
from US $9.02 |
||
|
35
|
35
6L2-41212-00-00 Arm, Accel |
6L2-41212-00-00 |
from US $21.08 |
||
|
36
|
36
6L2-44141-10-94 Link, Shift Rod |
6L2-44141-10-94 |
from US $17.99 |
||
|
37
|
37
973-13050-16-00
Bolt, Hexagon
|
973-13050-16-00 |
— | ||
|
38
|
38
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
39
|
39
6L2-44114-10-00 Stopper |
6L2-44114-10-00 |
from US $25.50 |
||
|
40
|
40
901-4906M-09-00 Screw |
901-4906M-09-00 |
from US $3.12 |
||
|
41
|
41
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
41
|
41
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
42
|
42
90387-06M15-00 Collar |
90387-06M15-00 |
from US $3.40 |
||
|
43
|
43
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
43
|
43
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
44
|
44
6L2-42192-10-00 Rod 2 |
6L2-42192-10-00 |
from US $10.77 |
||
|
45
|
45
6F5-41237-00-00 Joint, Link |
6F5-41237-00-00 |
US $9.49 |
||
| replacement | |||||
|
45
|
45
6R5-41237-00-00 Joint, Link |
6R5-41237-00-00 |
from US $7.76 |
||
|
46
|
46
6L2-41238-00-00 Joint, Link |
6L2-41238-00-00 |
from US $10.48 |
||
|
47
|
47
6L2-41237-00-00 Joint, Link |
6L2-41237-00-00 |
from US $10.48 |
||
|
48
|
48
95380-05700-00 Nut |
95380-05700-00 |
from US $2.22 |
||
