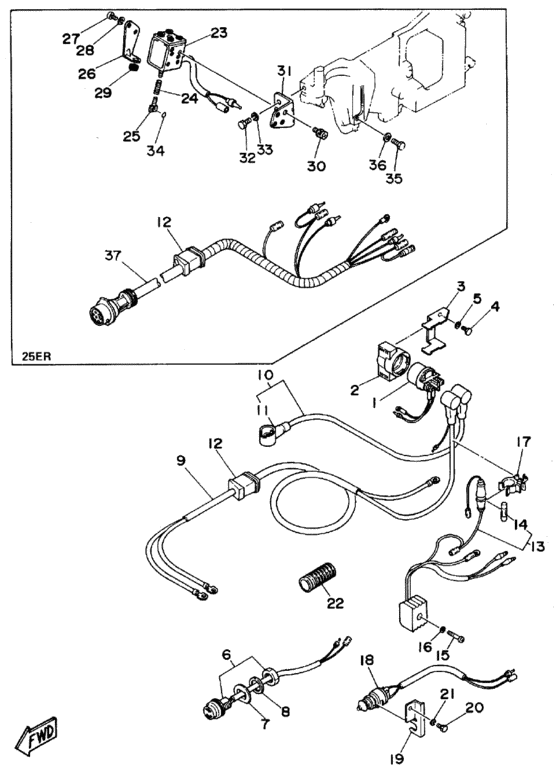

Electrical Diagram Yamaha 25 ES/LH
- Year
- 1994
- Model
- 25
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- U.S.A.
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6G1-81941-10-00 Starter Relay Assy |
6G1-81941-10-00 |
from US $57.24 |
||
|
2
|
2
6G1-81952-00-00 Holder, Relay |
6G1-81952-00-00 |
US $7.93 |
||
|
3
|
3
6L2-81945-00-00 Plate, Switch Fitting |
6L2-81945-00-00 |
from US $15.58 |
||
|
4
|
4
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
6
|
6
689-81870-00-00
Starting Switch Assy
|
689-81870-00-00 |
— | ||
| replacement | |||||
|
6
|
6
6G8-81870-00-00 Starting Switch Assy |
6G8-81870-00-00 |
from US $34.99 |
||
|
7
|
7
6L2-84387-00-00 Holder |
6L2-84387-00-00 |
US $2.50 |
||
|
8
|
8
90202-17M35-00 Washer, Plate |
90202-17M35-00 |
from US $1.77 |
||
|
9
|
9
6G1-82105-00-00 Battery Cable |
6G1-82105-00-00 |
US $161.65 |
||
| replacement | |||||
|
9
|
9
6E7-82105-12-00 Battery Cable |
6E7-82105-12-00 |
from US $91.22 |
||
|
10
|
10
6G1-82117-00-00 Wire, Lead |
6G1-82117-00-00 |
US $18.56 |
||
|
11
|
11
682-82119-01-00 Cover, Lead Wire |
682-82119-01-00 |
US $5.53 |
||
| replacement | |||||
|
11
|
11
6G5-82119-10-00 Cover, Lead Wire |
6G5-82119-10-00 |
from US $5.53 |
||
|
12
|
12
6L2-42725-40-00 Grommet |
6L2-42725-40-00 |
from US $6.94 |
||
|
12
|
12
6L2-42725-50-00 Grommet |
6L2-42725-50-00 |
US $5.53 |
||
|
13
|
13
6G1-81970-61-00
Rectifier Assy
|
6G1-81970-61-00 |
— | ||
| replacements | |||||
|
13
|
13
6G1-81970-62-00 Rectifier Assy |
6G1-81970-62-00 |
US $88.98 |
||
|
13
|
13
6G1-81970-63-00 Rectifier Assy |
6G1-81970-63-00 |
from US $94.08 |
||
|
14
|
14
6G1-82151-00-00 Fuse (10A)10A |
6G1-82151-00-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
1E6-82151-00-00 Fuse (10A)10A |
1E6-82151-00-00 |
from US $2.02 |
||
|
15
|
15
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
16
|
16
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
17
|
17
6G5-82152-00-00 Holder, Fuse |
6G5-82152-00-00 |
from US $2.36 |
||
|
18
|
18
6H3-82540-00-00 Neutral Switch Assy |
6H3-82540-00-00 |
US $39.24 |
||
| replacement | |||||
|
18
|
18
688-82540-12-00 Neutral Switch Assy |
688-82540-12-00 |
from US $39.24 |
||
|
19
|
19
6L2-82554-00-00 Stay, Neutral Switch |
6L2-82554-00-00 |
US $10.63 |
||
| replacement | |||||
|
19
|
19
6L2-82554-01-00 Stay, Neutral Switch |
6L2-82554-01-00 |
from US $8.60 |
||
|
20
|
20
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
20
|
20
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
22
|
22
6K3-83557-00-00
Tube
|
6K3-83557-00-00 |
— | ||
| replacement | |||||
|
22
|
22
6G1-83557-00-00 Tube |
6G1-83557-00-00 |
from US $4.11 |
||
|
23
|
23
6L2-86111-00-00 Coil, Solenoid |
6L2-86111-00-00 |
from US $114.01 |
||
|
24
|
24
682-86116-00-00 Wire, Pull |
682-86116-00-00 |
from US $6.38 |
||
|
25
|
25
682-86117-00-00 Hook, Wire Pull |
682-86117-00-00 |
from US $2.69 |
||
|
26
|
26
6L2-86115-00-00 Holder, Solenoid |
6L2-86115-00-00 |
from US $12.85 |
||
|
27
|
27
985-80050-08-00 Screw, Pan Head |
985-80050-08-00 |
from US $1.66 |
||
|
28
|
28
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
29
|
29
90480-10155-00 Grommet |
90480-10155-00 |
from US $3.83 |
||
|
30
|
30
97980-04208-00 Screw, With Washer |
97980-04208-00 |
from US $1.56 |
||
| replacement | |||||
|
30
|
30
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
31
|
31
6L2-86112-00-00 Stay, Solenoid |
6L2-86112-00-00 |
from US $11.05 |
||
|
32
|
32
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
32
|
32
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
33
|
33
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
34
|
34
93210-03261-00 O-Ring |
93210-03261-00 |
from US $2.02 |
||
|
35
|
35
97095-06012-00 Bolt |
97095-06012-00 |
from US $2.22 |
||
| replacement | |||||
|
35
|
35
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
36
|
36
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
37
|
37
6L2-82590-00-00 Wire Harness Assy |
6L2-82590-00-00 |
US $142.30 |
||
