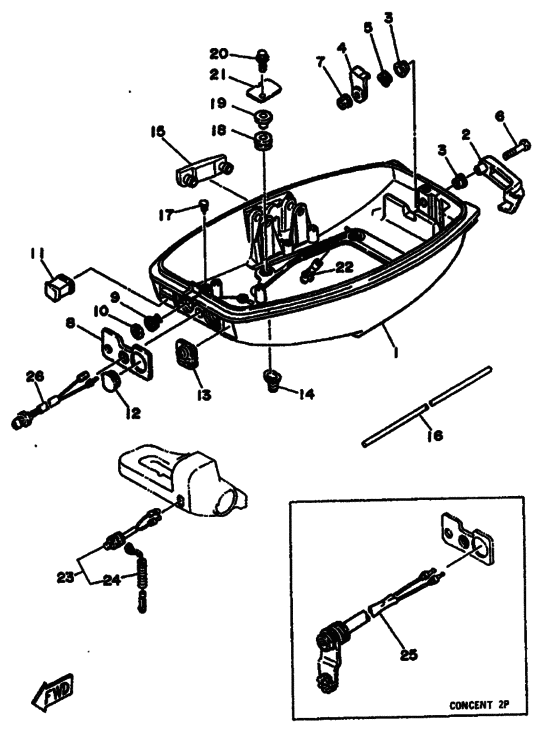

Bottom cowling Diagram Yamaha 25 EMOS/L
- Year
- 1992
- Model
- 25N
- Model code
- 6L2
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-42711-01-EJ
Cowling, Bottom
|
6L2-42711-01-EJ |
— | ||
| replacements | |||||
|
1
|
1
6L2-42711-03-EJ
Cowling, Bottom
|
6L2-42711-03-EJ |
— | ||
|
1
|
1
6L2-42711-02-EJ
Cowling, Bottom
|
6L2-42711-02-EJ |
— | ||
|
2
|
2
6L2-42815-00-EJ
Lever, Clamp
|
6L2-42815-00-EJ |
— | ||
| replacement | |||||
|
2
|
2
6L2-42815-01-EJ
Lever, Clamp
|
6L2-42815-01-EJ |
— | ||
|
3
|
3
903-8612M-45-00 Bush |
903-8612M-45-00 |
from US $9.92 |
||
|
4
|
4
6L2-42816-00-00 Lever, Clamp |
6L2-42816-00-00 |
from US $11.14 |
||
|
5
|
5
902-06120-52-00 Washer, Wave |
902-06120-52-00 |
from US $2.70 |
||
|
6
|
6
97890-06035-00 Screw, Pan Head |
97890-06035-00 |
US $2.13 |
||
| replacement | |||||
|
6
|
6
97885-06035-00 Screw, Pan Head |
97885-06035-00 |
from US $2.13 |
||
|
7
|
7
95780-06300-00 P58 Nut, Nylon |
95780-06300-00 |
from US $4.11 |
||
|
8
|
8
6L2-42719-A0-00 Panel, Front Lower |
6L2-42719-A0-00 |
from US $29.04 |
||
|
9
|
9
689-41273-00-00 Grommet |
689-41273-00-00 |
from US $3.38 |
||
|
10
|
10
6J8-41274-00-00 Grommet 2 |
6J8-41274-00-00 |
US $1.81 |
||
|
11
|
11
6L2-42725-00-00 Grommet |
6L2-42725-00-00 |
from US $5.30 |
||
|
12
|
12
6G1-42724-00-00 Grommet |
6G1-42724-00-00 |
US $5.67 |
||
| replacement | |||||
|
12
|
12
6G1-42724-01-00 Grommet |
6G1-42724-01-00 |
US $15.50 |
||
|
13
|
13
6L2-42726-01-00 Grommet |
6L2-42726-01-00 |
US $8.22 |
||
| replacement | |||||
|
13
|
13
6L2-42726-02-00 Grommet |
6L2-42726-02-00 |
US $11.14 |
||
|
14
|
14
6G1-42727-00-00 Grommet 4 |
6G1-42727-00-00 |
US $7.51 |
||
|
15
|
15
6L2-42748-01-00 Grommet |
6L2-42748-01-00 |
US $8.57 |
||
| replacement | |||||
|
15
|
15
6L2-42748-02-00 Grommet |
6L2-42748-02-00 |
from US $8.57 |
||
|
16
|
16
6L2-42716-00-00 Rubber, Seal 1 |
6L2-42716-00-00 |
US $9.35 |
||
|
17
|
17
90338-06M03-00
Plug
|
90338-06M03-00 |
— | ||
|
18
|
18
90480-15M31-00 Grommet |
90480-15M31-00 |
from US $3.54 |
||
|
19
|
19
90387-08M52-00
Collar
|
90387-08M52-00 |
— | ||
|
20
|
20
90105-06M15-00 Bolt, Flange |
90105-06M15-00 |
from US $2.77 |
||
|
21
|
21
6L2-42738-01-00 Plate, Fitting |
6L2-42738-01-00 |
from US $2.55 |
||
|
22
|
22
6H3-44391-01-00
Nipple, Hose
|
6H3-44391-01-00 |
— | ||
| replacement | |||||
|
22
|
22
6BL-44391-00-00 Nipple, Hose |
6BL-44391-00-00 |
from US $0.91 |
||
|
23
|
23
689-82575-02-00 Engine Stop Switch Assy |
689-82575-02-00 |
US $82.48 |
||
| replacement | |||||
|
23
|
23
6E9-82575-02-00 Engine Stop Switch Assy |
6E9-82575-02-00 |
from US $49.99 |
||
|
24
|
24
682-82556-00-00 Lanyard, Stop Switch |
682-82556-00-00 |
from US $10.13 |
||
|
25
|
25
682-84381-00-00 2P Concent |
682-84381-00-00 |
from US $45.77 |
||
|
26
|
26
6J8-85410-00-00 Emergency Signal Light Assy |
6J8-85410-00-00 |
from US $37.86 |
||
