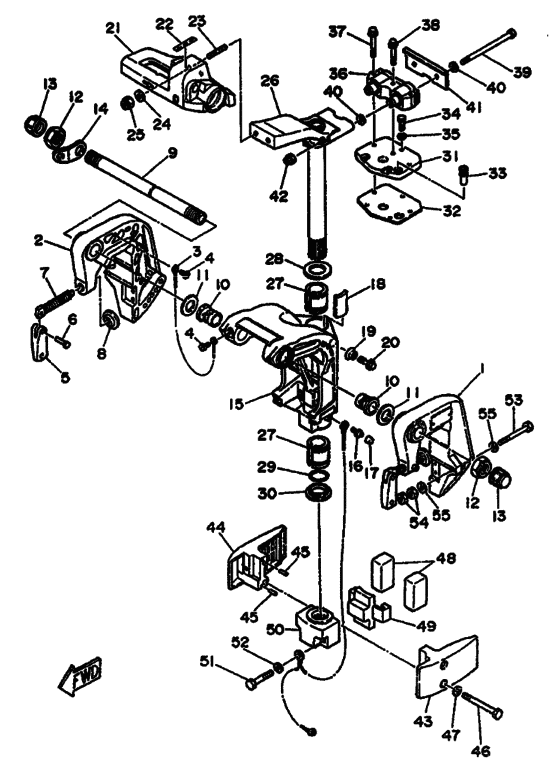

Bracket 1 Diagram Yamaha 25 EMOS/L
- Year
- 1992
- Model
- 25N
- Model code
- 6L2
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6L2-43111-01-EJ
Bracket, Clamp
|
6L2-43111-01-EJ |
— | ||
| replacements | |||||
|
1
|
1
6L2-43111-05-EJ
Bracket, Clamp
|
6L2-43111-05-EJ |
— | ||
|
1
|
1
6L2-43111-04-EJ
Bracket, Clamp
|
6L2-43111-04-EJ |
— | ||
|
2
|
2
6L2-43112-02-EJ
Bracket, Clamp
|
6L2-43112-02-EJ |
— | ||
| replacements | |||||
|
2
|
2
6L2-43112-06-EJ
Bracket, Clamp
|
6L2-43112-06-EJ |
— | ||
|
2
|
2
6L2-43112-04-EJ
Braket, Clamp
|
6L2-43112-04-EJ |
— | ||
|
3
|
3
6E5-82148-00-00 Wire, Lead 4 |
6E5-82148-00-00 |
from US $6.06 |
||
|
4
|
4
97895-06008-00 Screw, Pan Head |
97895-06008-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
5
|
5
616-43118-00-EJ Handle, Transom Clptransom Clamp |
616-43118-00-EJ |
US $13.60 |
||
| replacement | |||||
|
5
|
5
999-99028-08-00 Handle, Transom Clamp |
999-99028-08-00 |
from US $13.60 |
||
|
6
|
6
90243-04M00-00 Pin |
90243-04M00-00 |
from US $7.37 |
||
|
7
|
7
90149-14M07-00 Screw |
90149-14M07-00 |
US $27.77 |
||
| replacement | |||||
|
7
|
7
6L2-43116-00-00 Screw, Transom Clamp |
6L2-43116-00-00 |
from US $30.79 |
||
|
8
|
8
648-43114-01-00 Pad, Transom Clamp |
648-43114-01-00 |
from US $5.74 |
||
|
9
|
9
6J8-43131-01-00 Bolt, Clamp Bracket |
6J8-43131-01-00 |
from US $36.36 |
||
|
10
|
10
90386-22M67-00 Bush |
90386-22M67-00 |
from US $2.55 |
||
|
11
|
11
90201-22428-00 Washer, Plate |
90201-22428-00 |
US $4.11 |
||
| replacement | |||||
|
11
|
11
90201-22M03-00 Washer, Plate |
90201-22M03-00 |
from US $4.11 |
||
|
12
|
12
901-85220-43-00
Nut, Self-Locking
|
901-85220-43-00 |
— | ||
| replacement | |||||
|
12
|
12
90185-22007-00 Nut, Self-Locking |
90185-22007-00 |
from US $29.77 |
||
|
13
|
13
663-43145-00-00 Cap, Clamp Bracket |
663-43145-00-00 |
US $7.23 |
||
| replacement | |||||
|
13
|
13
6G5-43145-01-00 Cap, Clamp Bracket |
6G5-43145-01-00 |
from US $7.07 |
||
|
14
|
14
6J8-43113-01-00 Plate, Clamp Bracket |
6J8-43113-01-00 |
from US $6.52 |
||
|
15
|
15
6L2-43311-02-EJ
Bracket, Swivel
|
6L2-43311-02-EJ |
— | ||
| replacement | |||||
|
15
|
15
999-99028-85-00
Bracket, Swivel (6L2 Ej)
|
999-99028-85-00 |
— | ||
|
16
|
16
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
16
|
16
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $3.04 |
||
|
17
|
17
663-45119-00-00 Cap, Grease Nipple |
663-45119-00-00 |
US $3.89 |
||
|
18
|
18
6H4-42528-00-00 Plate, Friction |
6H4-42528-00-00 |
from US $13.18 |
||
|
19
|
19
689-43373-01-00 Seal, Damper |
689-43373-01-00 |
US $4.53 |
||
|
20
|
20
90105-06M18-00 Bolt, Flange |
90105-06M18-00 |
from US $2.74 |
||
|
21
|
21
6L2-42121-00-EJ
Bracket
|
6L2-42121-00-EJ |
— | ||
| replacements | |||||
|
21
|
21
6L2-W4212-01-EJ
Bracket
|
6L2-W4212-01-EJ |
— | ||
|
21
|
21
6L2-W4212-00-EJ
Bracket
|
6L2-W4212-00-EJ |
— | ||
|
22
|
22
6E0-44191-11-00 Indicator, Shift |
6E0-44191-11-00 |
US $4.68 |
||
| replacement | |||||
|
22
|
22
6X3-44191-00-00 Indicator, Shift |
6X3-44191-00-00 |
from US $4.68 |
||
|
23
|
23
90116-10M28-00 Bolt, Stud |
90116-10M28-00 |
US $7.65 |
||
| replacement | |||||
|
23
|
23
90116-10063-00 Bolt, Stud |
90116-10063-00 |
from US $5.81 |
||
|
24
|
24
929-90106-00-00 Washer, Plate |
929-90106-00-00 |
from US $1.18 |
||
|
25
|
25
901-85100-51-00
Nut, Self-Locking
|
901-85100-51-00 |
— | ||
| replacement | |||||
|
25
|
25
90185-10027-00 Nut, Self-Locking |
90185-10027-00 |
from US $1.52 |
||
|
26
|
26
6L2-42510-00-EJ
Steering Bracket Assy
|
6L2-42510-00-EJ |
— | ||
| replacement | |||||
|
26
|
26
6L2-42510-01-EJ
Steering Bracket Assy
|
6L2-42510-01-EJ |
— | ||
|
27
|
27
90386-30M75-00 Bush |
90386-30M75-00 |
from US $18.56 |
||
|
28
|
28
90201-30M00-00 Washer, Plate |
90201-30M00-00 |
from US $5.06 |
||
|
29
|
29
93210-29375-00 O-Ring |
93210-29375-00 |
from US $1.66 |
||
|
30
|
30
90386-30M60-00 Bush |
90386-30M60-00 |
from US $3.04 |
||
|
31
|
31
6L2-44512-00-EJ
Cover, Upper Mount
|
6L2-44512-00-EJ |
— | ||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
6L2-45114-A1-00 Gasket, Upper Casing |
6L2-45114-A1-00 |
from US $9.95 |
||
|
33
|
33
6L2-44365-00-00 Damper, Water Seal 1 |
6L2-44365-00-00 |
US $4.68 |
||
|
34
|
34
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
34
|
34
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
35
|
35
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
36
|
36
6L2-44514-00-00 Silent-Bloc, Superieur Lateral |
6L2-44514-00-00 |
US $79.99 |
||
| replacement | |||||
|
36
|
36
6L2-44514-01-00 Mount Damper, Upper Side |
6L2-44514-01-00 |
from US $71.69 |
||
|
37
|
37
97515-06250-00 Bolt, With Washer |
97515-06250-00 |
US $2.41 |
||
| replacements | |||||
|
37
|
37
90119-06M04-00 Bolt, With Washer |
90119-06M04-00 |
from US $1.73 |
||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
97515-06240-00 Bolt, With Washer |
97515-06240-00 |
from US $1.28 |
||
| replacement | |||||
|
38
|
38
97095-06040-00 Bolt |
97095-06040-00 |
from US $1.28 |
||
|
39
|
39
90101-08M09-00 Bolt |
90101-08M09-00 |
from US $12.18 |
||
|
40
|
40
90201-08M01-00 Washer, Plate |
90201-08M01-00 |
from US $1.98 |
||
|
41
|
41
6L2-44526-00-00 Plate |
6L2-44526-00-00 |
from US $8.22 |
||
|
42
|
42
95780-08300-00 Nut, Nylon (6J8) |
95780-08300-00 |
from US $6.74 |
||
|
43
|
43
6L2-44551-00-EJ
Housing, Lower Mount Rubber
|
6L2-44551-00-EJ |
— | ||
| replacement | |||||
|
43
|
43
6L2-44551-01-EJ
Housing, Lower Mount 1
|
6L2-44551-01-EJ |
— | ||
|
44
|
44
6L2-44552-00-EJ
Housing, Lower Mount Rubber
|
6L2-44552-00-EJ |
— | ||
| replacement | |||||
|
44
|
44
6L2-44552-01-EJ
Housing, Lower Mount Rubber
|
6L2-44552-01-EJ |
— | ||
|
45
|
45
93604-10M03-00 Pin, Dowel |
93604-10M03-00 |
from US $1.94 |
||
|
46
|
46
97395-08085-00 Bolt |
97395-08085-00 |
from US $5.76 |
||
| replacement | |||||
|
46
|
46
975-95085-85-00 Bolt, With Washer |
975-95085-85-00 |
from US $5.66 |
||
|
47
|
47
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
48
|
48
6L2-44555-00-00 Mount Damper, Lower Side |
6L2-44555-00-00 |
from US $21.54 |
||
|
49
|
49
6L2-44557-00-00 Mount Damper, Lower Front |
6L2-44557-00-00 |
from US $18.43 |
||
|
50
|
50
6L2-44553-00-EJ
Cover, Lower Mount
|
6L2-44553-00-EJ |
— | ||
| replacement | |||||
|
50
|
50
6L2-44553-01-EJ
Cover, Lower Mount
|
6L2-44553-01-EJ |
— | ||
|
51
|
51
97395-08045-00 Bolt |
97395-08045-00 |
from US $1.56 |
||
| replacements | |||||
|
51
|
51
97080-08045-00 Bolt, Hexagon |
97080-08045-00 |
from US $4.25 |
||
|
51
|
51
97095-08045-00 Bolt |
97095-08045-00 |
from US $1.56 |
||
|
52
|
52
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
53
|
53
97395-08070-00 Bolt |
97395-08070-00 |
US $9.78 |
||
| replacement | |||||
|
53
|
53
97095-08070-00 Bolt |
97095-08070-00 |
from US $9.78 |
||
|
54
|
54
953-80086-00-00
Nut, Hex
|
953-80086-00-00 |
— | ||
| replacements | |||||
|
54
|
54
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
54
|
54
988-80081-00-00 Ybs55-8 Nut (644) |
988-80081-00-00 |
from US $1.57 |
||
|
55
|
55
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
