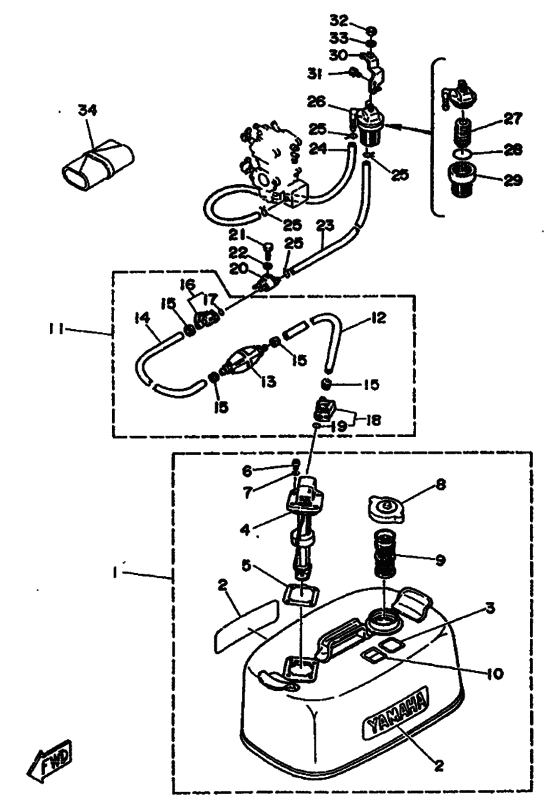

Fuel Diagram Yamaha 25 EMOS/L
- Year
- 1992
- Model
- 25N
- Model code
- 6L2
- Year
- 1992
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6Y1-W2420-62-24
Fuel Tank Assy
|
6Y1-W2420-62-24 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
6Y1-24246-00-00
Graphic, Side
|
6Y1-24246-00-00 |
— | ||
|
3
|
3
6Y1-24257-00-00
Graphic
10 |
6Y1-24257-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
10 |
999-99999-99-00 |
— | ||
|
4
|
4
6Y1-24260-02-00
Fuel Meter Assembly
|
6Y1-24260-02-00 |
— | ||
| replacement | |||||
|
4
|
4
6Y1-24260-19-00 FUEL METER ASSY |
6Y1-24260-19-00 |
US $86.48 |
||
|
5
|
5
6Y1-24268-00-00 Gasket, Fuel Meter |
6Y1-24268-00-00 |
US $3.94 |
||
|
6
|
6
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
7
|
7
6Y1-24329-00-00 Seal |
6Y1-24329-00-00 |
from US $1.70 |
||
|
8
|
8
6Y1-24610-00-00 Cap Assembly |
6Y1-24610-00-00 |
US $29.81 |
||
|
9
|
9
6Y1-24167-00-00 Strainer |
6Y1-24167-00-00 |
US $21.39 |
||
|
10
|
10
6Y1-24256-80-00
Graphic, Fuel Tank 9
|
6Y1-24256-80-00 |
— | ||
|
11
|
11
6Y1-24306-05-00 Fuel Pipe Assy |
6Y1-24306-05-00 |
US $88.70 |
||
| replacement | |||||
|
11
|
11
6YL-24306-64-00 Fuel Pipe Comp. 1 |
6YL-24306-64-00 |
from US $268.03 |
||
|
12
|
12
90445-11M06-00 Hose |
90445-11M06-00 |
US $34.57 |
||
| replacement | |||||
|
12
|
12
90445-11M81-00 Hose (L3000) |
90445-11M81-00 |
from US $34.57 |
||
|
13
|
13
6Y1-24360-02-00 Primer Pump Assy |
6Y1-24360-02-00 |
US $32.59 |
||
| replacement | |||||
|
13
|
13
6YL-24360-63-00 PIPE, JOINT 2 |
6YL-24360-63-00 |
from US $54.97 |
||
|
14
|
14
90445-11M05-00 Hose |
90445-11M05-00 |
US $10.77 |
||
| replacement | |||||
|
14
|
14
90445-11M78-00 Hose |
90445-11M78-00 |
US $10.34 |
||
|
15
|
15
650-24351-01-00 Band 1 |
650-24351-01-00 |
US $2.98 |
||
| replacement | |||||
|
15
|
15
650-24351-51-00 Band 1 |
650-24351-51-00 |
from US $2.98 |
||
|
16
|
16
6G1-24305-00-00 Fuel Pipe Joint Comp. 2 |
6G1-24305-00-00 |
US $28.34 |
||
| replacement | |||||
|
16
|
16
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $25.26 |
||
|
17
|
17
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
18
|
18
6Y1-24305-02-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-02-00 |
US $25.08 |
||
| replacements | |||||
|
18
|
18
6G1-24305-05-00 Fuel Pipe Joint Comp 2 |
6G1-24305-05-00 |
from US $25.26 |
||
|
18
|
18
6Y1-24305-06-00 Fuel Pipe Joint Comp 2 |
6Y1-24305-06-00 |
from US $25.08 |
||
|
19
|
19
93210-08287-00 O-Ring |
93210-08287-00 |
from US $3.83 |
||
|
20
|
20
6G1-24304-02-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-02-00 |
US $29.47 |
||
| replacements | |||||
|
20
|
20
6G1-24304-10-00 Fuel Pipe Joint Comp. 1 |
6G1-24304-10-00 |
US $32.74 |
||
|
20
|
20
6G1-24304-11-00 FUEL PIPE JOINT COMP 1 |
6G1-24304-11-00 |
from US $26.03 |
||
|
21
|
21
97395-06020-00 Bolt, Hexagon |
97395-06020-00 |
US $1.56 |
||
| replacement | |||||
|
21
|
21
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
22
|
22
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
23
|
23
6H4-24311-00-00 Pipe, Fuel 1 |
6H4-24311-00-00 |
from US $5.68 |
||
|
24
|
24
90445-09M25-00 Hose (L420) |
90445-09M25-00 |
from US $6.52 |
||
| replacements | |||||
|
24
|
24
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.40 |
||
|
24
|
24
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $7.76 |
||
|
25
|
25
90467-08004-00 Clip |
90467-08004-00 |
from US $1.81 |
||
|
26
|
26
655-24560-01-00 Filter Assembly |
655-24560-01-00 |
US $42.69 |
||
| replacement | |||||
|
26
|
26
61N-24560-10-00 Filter Assy |
61N-24560-10-00 |
from US $25.92 |
||
|
27
|
27
6F5-24563-00-00 Element, Filter |
6F5-24563-00-00 |
from US $8.08 |
||
|
28
|
28
93210-37M25-00 O-Ring |
93210-37M25-00 |
from US $4.68 |
||
|
29
|
29
655-24521-01-00
Cup, Filter
|
655-24521-01-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
6L2-24566-00-00 Bracket, Filter |
6L2-24566-00-00 |
from US $13.18 |
||
|
31
|
31
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
31
|
31
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
32
|
32
95380-08900-00
Nut
|
95380-08900-00 |
— | ||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
34
|
34
656-W2810-01-00 Tool Kit |
656-W2810-01-00 |
US $40.62 |
||
| replacements | |||||
|
34
|
34
656-W2810-02-00 Tool Kit |
656-W2810-02-00 |
US $40.62 |
||
|
34
|
34
656-W2810-03-00 Tool Kit |
656-W2810-03-00 |
from US $40.62 |
||
