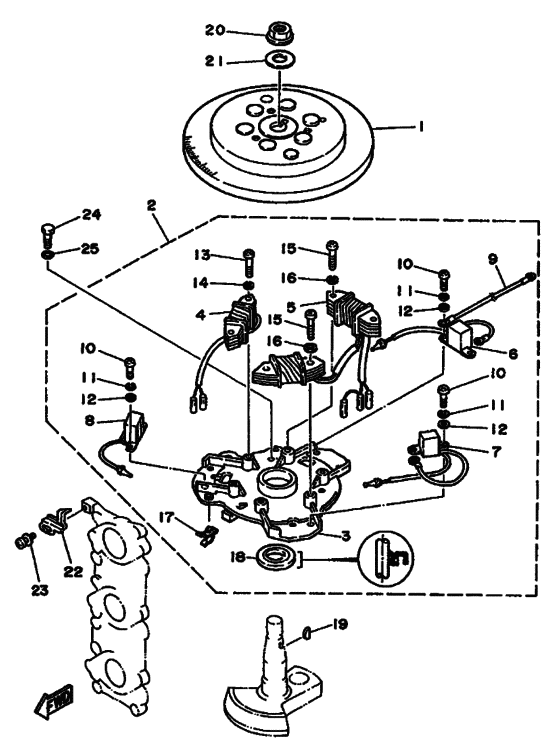

Magneto Diagram Yamaha 25 EOS/L
- Year
- 1990
- Model
- 25Q
- Model code
- 61C
- Year
- 1990
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Metallic Marine Blue (MMB; 00EJ)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-85550-10-00 Rotor Assembly |
6H5-85550-10-00 |
US $879.12 |
||
| replacement | |||||
|
1
|
1
63D-85550-00-00 Rotor Assy |
63D-85550-00-00 |
from US $879.12 |
||
|
2
|
2
6H5-85560-01-00
Base Assembly
|
6H5-85560-01-00 |
— | ||
| replacement | |||||
|
2
|
2
6H5-85560-02-00
Base Assembly
|
6H5-85560-02-00 |
— | ||
|
3
|
3
6H4-15359-03-94 Housing, Oil Seal |
6H4-15359-03-94 |
US $56.65 |
||
| replacement | |||||
|
3
|
3
6H4-15359-04-94 Housing, Oil Seal |
6H4-15359-04-94 |
from US $56.65 |
||
|
4
|
4
6H5-85520-00-00 Coil, Charge |
6H5-85520-00-00 |
US $187.90 |
||
| replacement | |||||
|
4
|
4
63D-85520-01-00 Coil, Charge |
63D-85520-01-00 |
from US $162.20 |
||
|
5
|
5
6H5-85533-01-00
Coil, Lighting
|
6H5-85533-01-00 |
— | ||
|
6
|
6
6H5-85580-00-00 Coil, Pulser |
6H5-85580-00-00 |
US $147.73 |
||
|
7
|
7
6H5-85580-10-00
Coil, Pulser
|
6H5-85580-10-00 |
— | ||
|
8
|
8
6H5-85580-20-00
Coil, Pulser
|
6H5-85580-20-00 |
— | ||
|
9
|
9
6H5-83354-00-00
Wire, Lead
|
6H5-83354-00-00 |
— | ||
|
10
|
10
98501-05012-00 Screw, Pan Head |
98501-05012-00 |
from US $1.21 |
||
| replacements | |||||
|
10
|
10
98517-05012-00 Screw, Pan Head |
98517-05012-00 |
from US $1.21 |
||
|
10
|
10
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
12
|
12
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
13
|
13
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
14
|
14
92990-06110-00
Washer
|
92990-06110-00 |
— | ||
|
15
|
15
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
15
|
15
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
16
|
16
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
90464-03M15-00 Clamp |
90464-03M15-00 |
from US $2.69 |
||
|
18
|
18
931-02230-96-00 Oil Seal |
931-02230-96-00 |
from US $15.26 |
||
|
19
|
19
90280-05049-00 Key, Woodruff |
90280-05049-00 |
from US $5.06 |
||
|
20
|
20
90179-16M05-00 Nut |
90179-16M05-00 |
from US $10.83 |
||
|
21
|
21
90201-16M44-00 Washer, Plate |
90201-16M44-00 |
from US $4.72 |
||
|
22
|
22
6H4-81332-00-00 Plate, Timing |
6H4-81332-00-00 |
from US $6.38 |
||
|
23
|
23
97885-05210-00 Screw, With Washer |
97885-05210-00 |
US $1.98 |
||
| replacement | |||||
|
23
|
23
97985-05210-00 Screw, With Washer |
97985-05210-00 |
from US $1.98 |
||
|
24
|
24
97313-06018-00 Bolt, Hex |
97313-06018-00 |
from US $1.62 |
||
| replacement | |||||
|
24
|
24
97013-06018-00 Bolt |
97013-06018-00 |
from US $1.57 |
||
|
25
|
25
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
