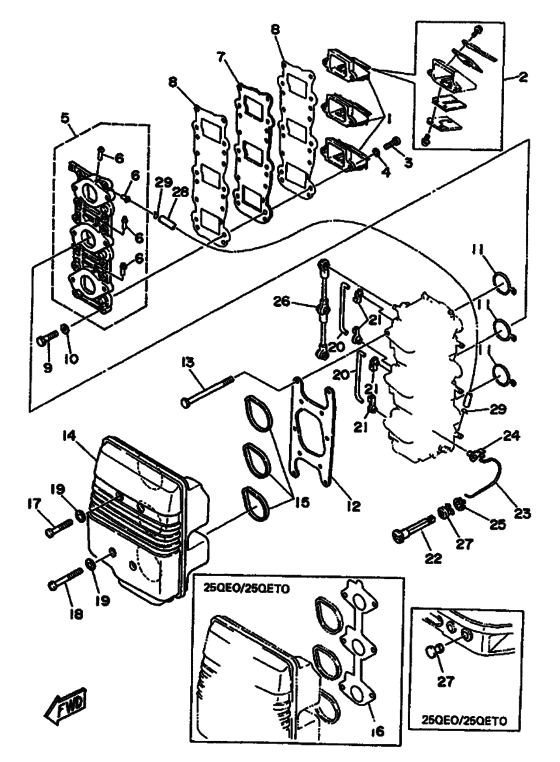

Intake Diagram Yamaha 25 EOS/L
- Year
- 1994
- Model
- 25Q
- Model code
- 61C
- Year
- 1994
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Europe (999)
- Colour
- Dark Bluish Gray Metallic 2 (DBNM2; 004D)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
6H5-13610-00-00 Reed Valve Assy |
6H5-13610-00-00 |
from US $76.54 |
||
|
2
|
2
6H4-W0004-00-00 Reed Set |
6H4-W0004-00-00 |
from US $23.38 |
||
|
3
|
3
97880-05014-00 Screw, Pan Head |
97880-05014-00 |
from US $1.28 |
||
| replacements | |||||
|
3
|
3
985-80050-14-00
Screw, Pan Head
|
985-80050-14-00 |
— | ||
|
3
|
3
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
4
|
4
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
6H4-13641-30-94 Manifold, Intake 1UR 50DRO |
6H4-13641-30-94 |
US $119.37 |
||
| replacement | |||||
|
5
|
5
6H4-13641-30-00 Manifold, Intake 1UR 50DRO |
6H4-13641-30-00 |
from US $119.37 |
||
|
5
|
5
61C-13640-11-00
Manifold
UR 25QEO/25QETO |
61C-13640-11-00 |
— | ||
|
5
|
5
61C-13640-31-00
Manifold
UR 25QRO |
61C-13640-31-00 |
— | ||
|
6
|
6
6H1-14485-00-00 Pipe, JointUR 25QEO/25QETO |
6H1-14485-00-00 |
from US $5.38 |
||
|
7
|
7
6H4-13624-01-94 Plate,reed ValveUR 50D |
6H4-13624-01-94 |
US $15.30 |
||
| replacement | |||||
|
7
|
7
6H4-13624-01-00 Plate, Reed ValveUR 50D |
6H4-13624-01-00 |
from US $15.30 |
||
|
8
|
8
6H4-13621-A1-00 Gasket, Valve SeatUR 50D |
6H4-13621-A1-00 |
from US $9.95 |
||
|
8
|
8
61C-13621-A0-00
Gasket, Valve Seat
UR 25Q |
61C-13621-A0-00 |
— | ||
|
9
|
9
97095-06020-00 Bolt |
97095-06020-00 |
US $1.66 |
||
| replacement | |||||
|
9
|
9
970-80060-20-00 Bolt |
970-80060-20-00 |
from US $1.66 |
||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
11
|
11
9H414-19801-00
New Genuine Part
|
9H414-19801-00 |
— | ||
|
12
|
12
6H4-14406-00-00 Hinge |
6H4-14406-00-00 |
from US $20.54 |
||
|
13
|
13
97095-06095-00 Bolt |
97095-06095-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
97D95-06095-00 |
97D95-06095-00 |
from US $1.81 |
||
|
14
|
14
6H4-14431-01-00 Silencer, Intake 1 |
6H4-14431-01-00 |
US $61.20 |
||
| replacement | |||||
|
14
|
14
6H4-14431-02-00 Silencer, Intake 1 |
6H4-14431-02-00 |
from US $67.32 |
||
|
15
|
15
6H3-14457-01-00 Seal |
6H3-14457-01-00 |
US $3.74 |
||
| replacement | |||||
|
15
|
15
6H3-14457-02-00 Seal |
6H3-14457-02-00 |
from US $3.74 |
||
|
16
|
16
61C-14198-A0-00
Gasket
25QEO/25QETO |
61C-14198-A0-00 |
— | ||
|
17
|
17
97885-06040-00 Screw, Pan Head(6H4) |
97885-06040-00 |
from US $2.50 |
||
| replacement | |||||
|
17
|
17
98580-06040-00 Screw, Pan Head (90501-06040-00 |
98580-06040-00 |
from US $1.39 |
||
|
18
|
18
97885-06055-00 Screw, Pan Head(6H4) |
97885-06055-00 |
US $3.40 |
||
| replacement | |||||
|
18
|
18
985-80065-55-00 Screw, Panhed (Gc2) |
985-80065-55-00 |
from US $3.74 |
||
|
19
|
19
90209-06M05-00 Washer |
90209-06M05-00 |
from US $2.69 |
||
|
20
|
20
6H4-41257-00-00 Rod, Choke 225QRO/50DRO |
6H4-41257-00-00 |
from US $4.30 |
||
|
21
|
21
661-41262-02-00 Joint, Choke Lever25QRO/50DRO |
661-41262-02-00 |
from US $7.93 |
||
|
22
|
22
6H4-41271-01-00
Knob, Choke
25QRO/50DRO |
6H4-41271-01-00 |
— | ||
| replacement | |||||
|
22
|
22
6H4-41271-02-00 Knob, Choke25QRO/50DRO |
6H4-41271-02-00 |
from US $6.24 |
||
|
23
|
23
6H4-41259-01-00 Rod, Choke 325QRO/50DRO |
6H4-41259-01-00 |
from US $4.30 |
||
|
24
|
24
6J8-41262-00-00 Joint, Choke Lever25QRO/50DRO |
6J8-41262-00-00 |
from US $2.02 |
||
|
25
|
25
6J8-41274-00-00 Grommet 225QRO/50DRO |
6J8-41274-00-00 |
US $1.81 |
||
|
26
|
26
6H4-41217-01-00 Rod, Accel. Lever |
6H4-41217-01-00 |
from US $13.88 |
||
|
27
|
27
689-41273-00-00 GrommetUR 25QRO/50DRO |
689-41273-00-00 |
from US $3.38 |
||
|
27
|
27
6G1-42748-00-00 GrommetUR 25QEO/25QETO |
6G1-42748-00-00 |
US $5.24 |
||
|
28
|
28
904-4507M-24-00
Hose (L240)
25QEO/25QETO |
904-4507M-24-00 |
— | ||
| replacements | |||||
|
28
|
28
904-4507M-90-00 Hose (L390)25QEO/25QETO |
904-4507M-90-00 |
from US $4.25 |
||
|
28
|
28
999-99999-99-00
Not Available
25QEO/25QETO |
999-99999-99-00 |
— | ||
|
29
|
29
90467-06016-00 Clip25QEO/25QETO |
90467-06016-00 |
from US $2.55 |
||
