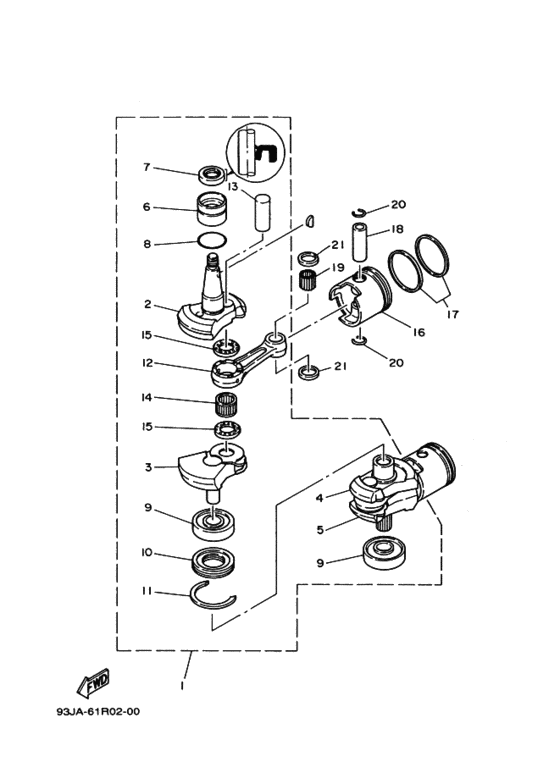

Crankshaft & Piston Diagram Yamaha 25 (E)MHS/L
- Year
- 1993
- Model
- 25V
- Model code
- 61R
- Year
- 1993
- Stroke (2-stroke or 4-stroke)
- 2 stroke
- Power
- 25
- Sales region
- Japan (999)
- Colour
- Metallic Marine Silver (MMS; 00EK)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61N-11400-00-00
Crankshaft Assembly
クランクシヤフトアセンブリ; |
61N-11400-00-00 |
— | ||
| replacement | |||||
|
1
|
1
62C-11400-01-00
Crankshaft Assy
クランクシヤフトアセンブリ; |
62C-11400-01-00 |
— | ||
|
2
|
2
61N-11412-00-00
Crank 1
．クランク １; |
61N-11412-00-00 |
— | ||
| replacement | |||||
|
2
|
2
61N-11412-01-00 Crank 1．クランク １; |
61N-11412-01-00 |
from US $362.82 |
||
|
3
|
3
61N-11422-00-00 Crank 2．クランク ２; |
61N-11422-00-00 |
from US $196.19 |
||
|
4
|
4
61N-11432-00-00 Crank 3．クランク ３; |
61N-11432-00-00 |
from US $155.20 |
||
|
5
|
5
61N-11442-00-00 Crank 4．クランク ４; |
61N-11442-00-00 |
from US $196.19 |
||
|
6
|
6
93311-632U7-00 Bearing．ベアリング; |
93311-632U7-00 |
from US $96.85 |
||
|
7
|
7
93102-26M27-00 Oil Seal．オイルシ−ル; |
93102-26M27-00 |
from US $10.63 |
||
|
8
|
8
93210-42159-00 O-Ring．Ｏ−リング; |
93210-42159-00 |
from US $5.41 |
||
|
9
|
9
93306-305U3-00 Bearing．ベアリング; |
93306-305U3-00 |
from US $39.93 |
||
|
10
|
10
61N-11515-00-00 Seal, Labyrinth 1．シ−ル，ラビリンス １; |
61N-11515-00-00 |
from US $35.36 |
||
|
11
|
11
93440-62057-00 Circlip, Outer．サ−クリツプ; |
93440-62057-00 |
from US $2.02 |
||
|
12
|
12
689-11651-00-00 Rod, Connecting．ロツド，コネクテイング; |
689-11651-00-00 |
from US $67.66 |
||
|
13
|
13
689-11681-01-00 Pin, Crank 1．ピン，クランク １; |
689-11681-01-00 |
from US $22.90 |
||
|
14
|
14
93310-624U5-00 Bearing．ベアリング; |
93310-624U5-00 |
from US $30.56 |
||
|
15
|
15
90209-24M03-00 Washer．ワツシヤ; |
90209-24M03-00 |
from US $5.40 |
||
|
16
|
16
61N-11631-00-95 Piston (Std)ＳＴＤ |
61N-11631-00-95 |
from US $73.06 |
||
|
16
|
16
61N-11635-00-00 Piston (0.25Mm O/s)０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
61N-11635-00-00 |
from US $77.10 |
||
|
16
|
16
61N-11636-00-00 Piston (0.50Mm O/s)０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
61N-11636-00-00 |
from US $74.74 |
||
|
17
|
17
61N-11603-00-00 Piston Ring Set (Std)ＳＴＤ |
61N-11603-00-00 |
from US $32.66 |
||
|
17
|
17
61N-11604-00-00 Piston Ring Set (0.25Mm O/s)ピストンリングセツト ; ０．２５ＭＭ Ｏ／Ｓ; ＡＰ |
61N-11604-00-00 |
from US $45.12 |
||
|
17
|
17
61N-11605-00-00 Piston Ring Set (0.50Mm O/s)ピストンリングセツト ; ０．５０ＭＭ Ｏ／Ｓ; ＡＰ |
61N-11605-00-00 |
from US $43.10 |
||
|
18
|
18
689-11633-00-00 Pin, Pistonピン，ピストン; |
689-11633-00-00 |
from US $8.42 |
||
|
19
|
19
936-0220M-02-00 Pin, Dowel |
936-0220M-02-00 |
from US $2.02 |
||
|
20
|
20
688-11634-00-00 Clip, Piston Pinクリツプ，ピストンピン; |
688-11634-00-00 |
from US $2.36 |
||
|
21
|
21
90201-20M27-00 Washer, Plate |
90201-20M27-00 |
from US $5.40 |
||
